04 - Control System 30Service Manual – SC250, Scrubtec 334, MA 30
Specications

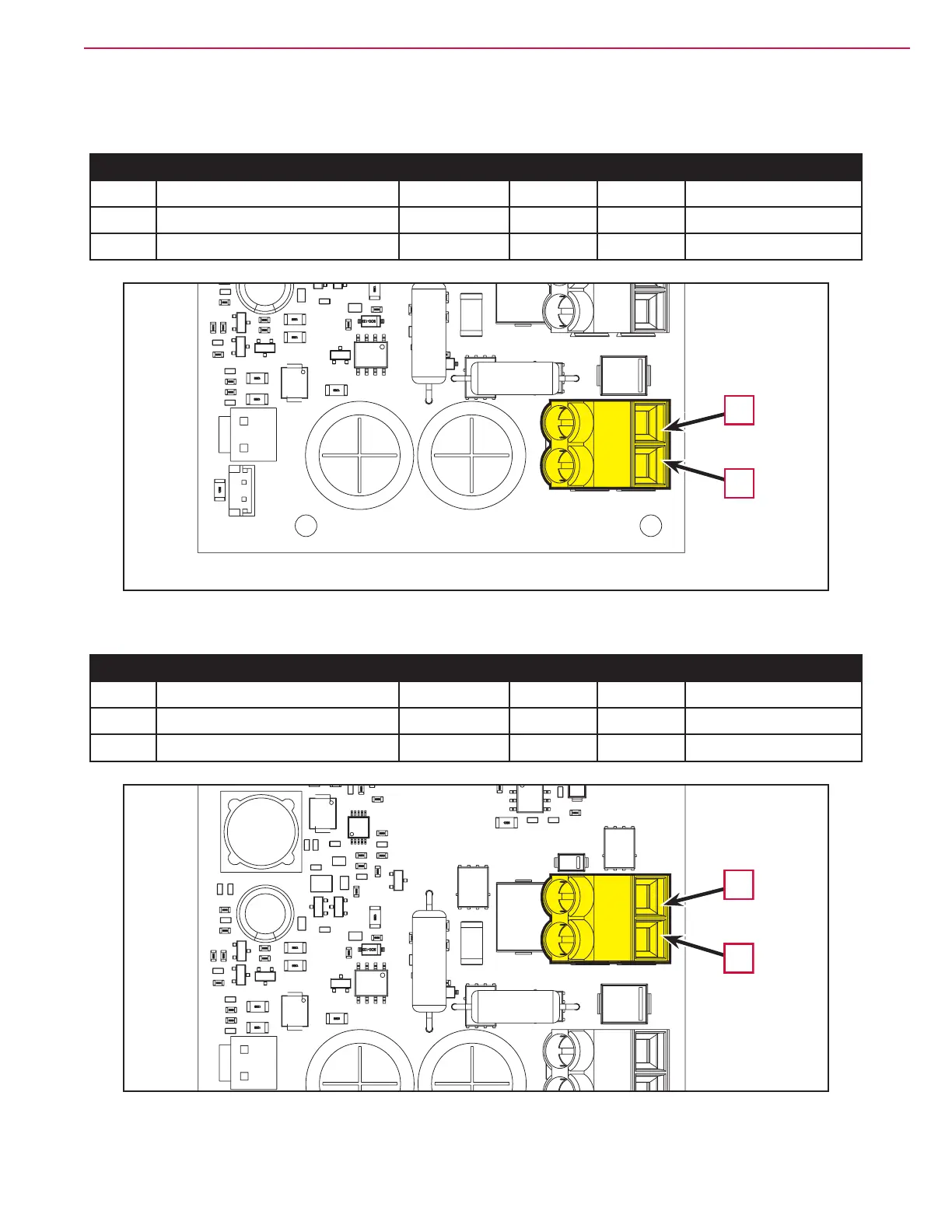

Main Machine Controller (EB1) Connectors
BATTERY: type FCI T702035100J0G (2 ways, screw type)
PIN Description El. board in/out V ref. I max. Connected to
1 Vbatt + In 36V 25A BAT+
2 Vbatt - In 0V 25A BAT-
2
1
Figure 23
OUT1: type FCI T702035100J0G (2 ways, screw type)
PIN Description El. board in/out V ref. I max. Connected to
1 Brush motor output + Out 36V 20A M1+
2 Brush motor output - Out 0V 20A M1-
2
1
Figure 24
