Removal and Installation
Vacuum System Motor
Removal
1. Remove the tank assembly from the machine.
2. Open the rear cover and remove the battery.
3. Remove the screw to remove the controller protective cover.
4. Disconnect the vacuum motor connections (A).
- Do not loosen the connection fastening screws, use a pair of pliers to hold the connector on the
controller.

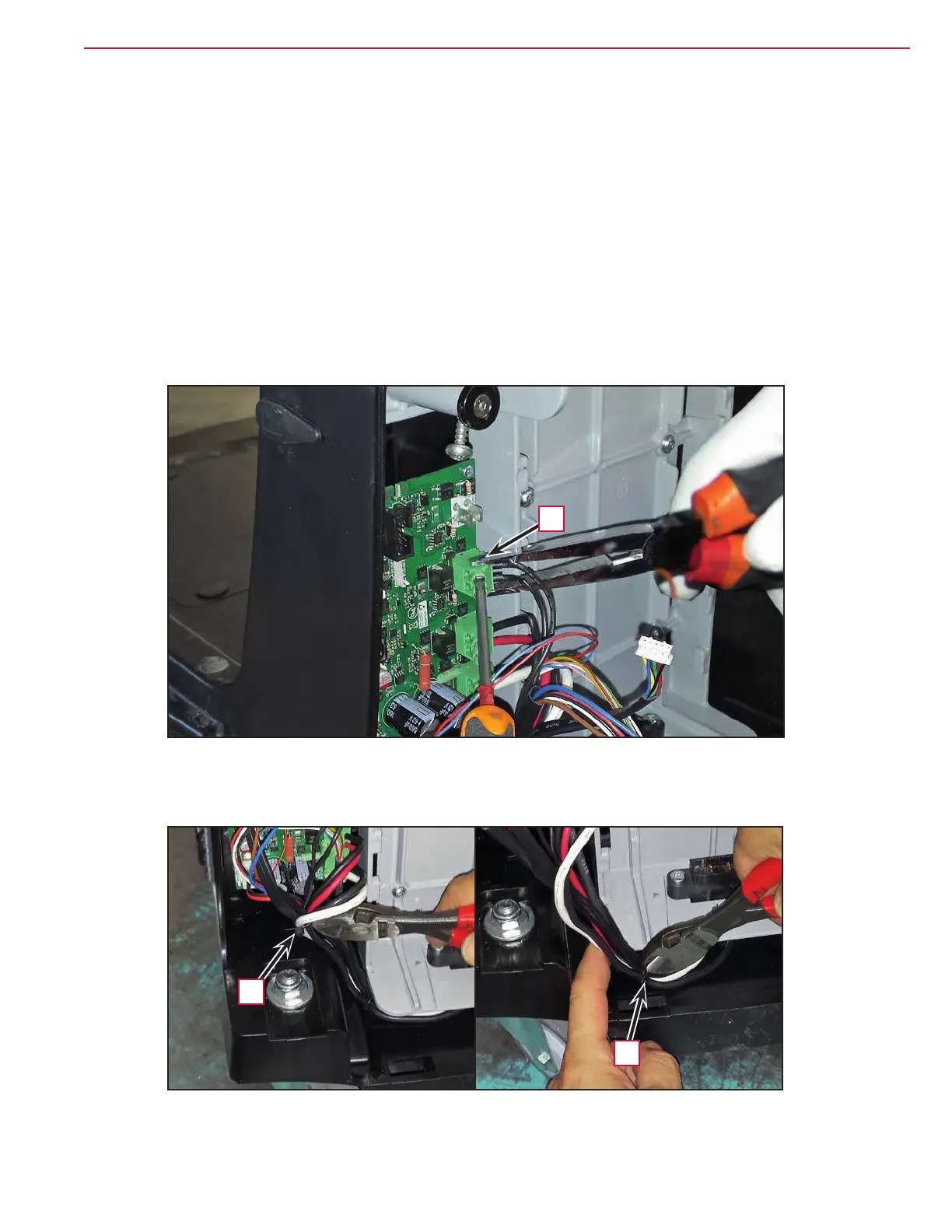

Figure 8
A
5. Remove the two cable retention clamps (B).
Figure 9
B
B
