40 - Recovery System 93Service Manual – SC250, Scrubtec 334, MA 30
Vacuum System Motor (continues)
6. Turn the machine over onto its right side to access the lower area.
7. Remove clamp (C) and clamp (D) to free up the wiring.

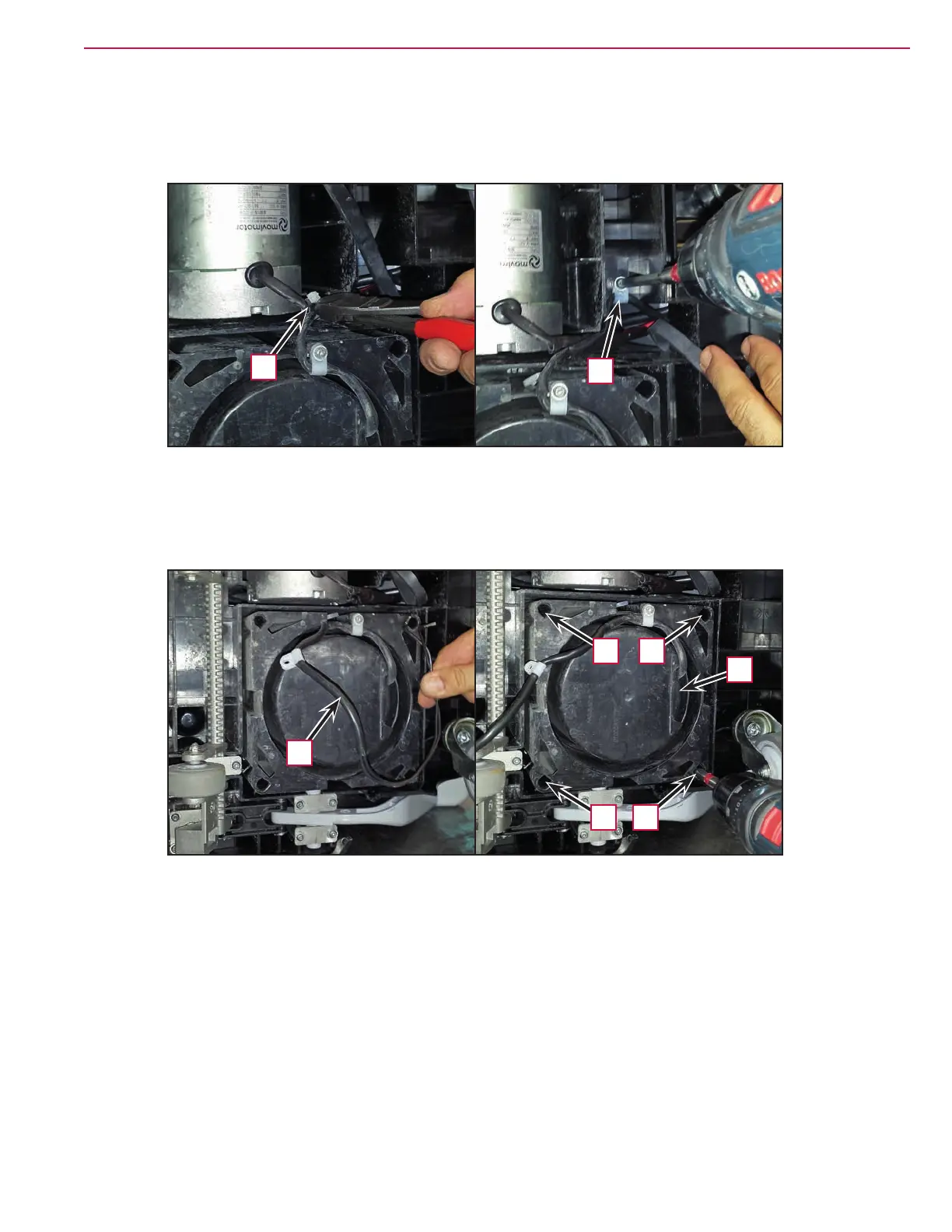

Figure 10
D
C
8. Remove the wiring (E) from the machine.
9. Unscrew the 4 retaining screws (F) and remove the vacuum motor unit (G) from the machine.
Figure 11
F
G
F
E
F
F
