34 - Scrub System 65Service Manual – SC250, Scrubtec 334, MA 30
Component Locations
• Brush motor (M1)
• Cylindrical brush
• Drive hub
• Driving belt
• Casing
• Floor brush pressure adjustment knob
• Debris collection tank

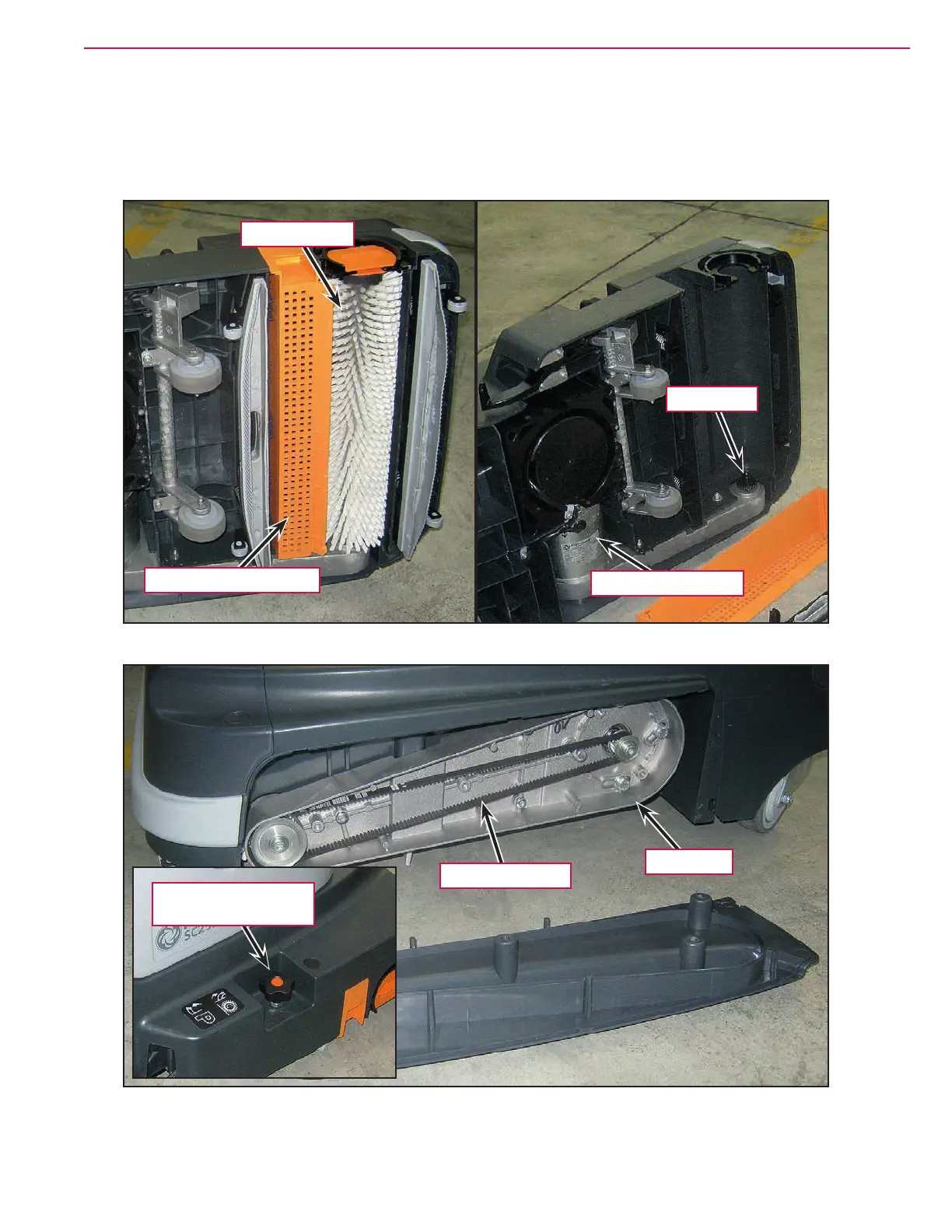

Figure 2
Drive hub
Brush motor (M1)
Debris collection tank
Cylindrical brush
Figure 3
Driving belt
Floor brush pressure
adjustment knob
Casing
