38 - Squeegee System 80Service Manual – SC250, Scrubtec 334, MA 30
Removal and Installation
Vacuum Duct
Removal
1. Remove the tank assembly from the machine.
2. Open the rear cover and remove the battery.

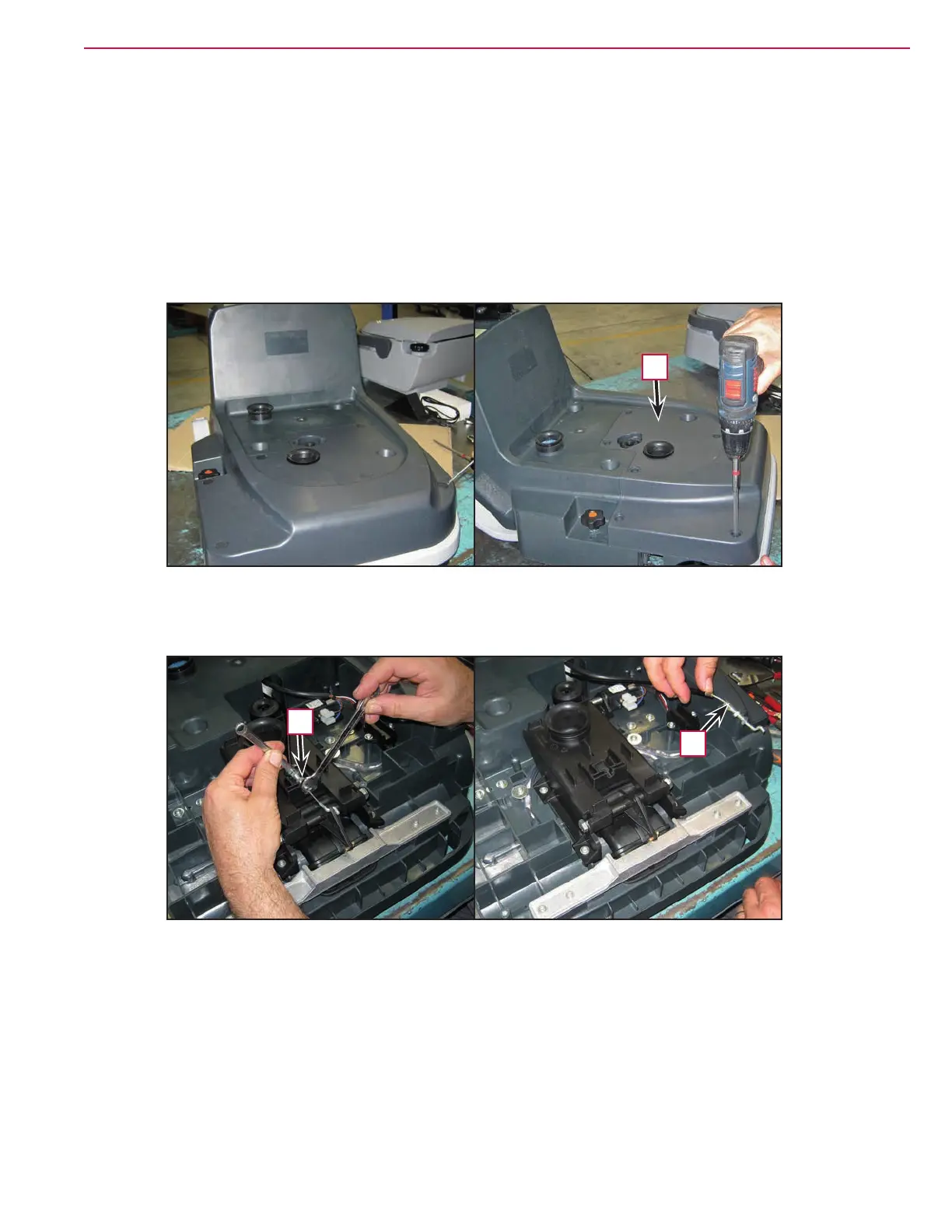

3. Remove upper cover from the machine body (A).
Figure 4
A
4. Loosen the nut and locknut (B) and remove the squeegee lifting cable (C).
Figure 5
C
B
