24 - Electrical System 42Service Manual – SC250, Scrubtec 334, MA 30

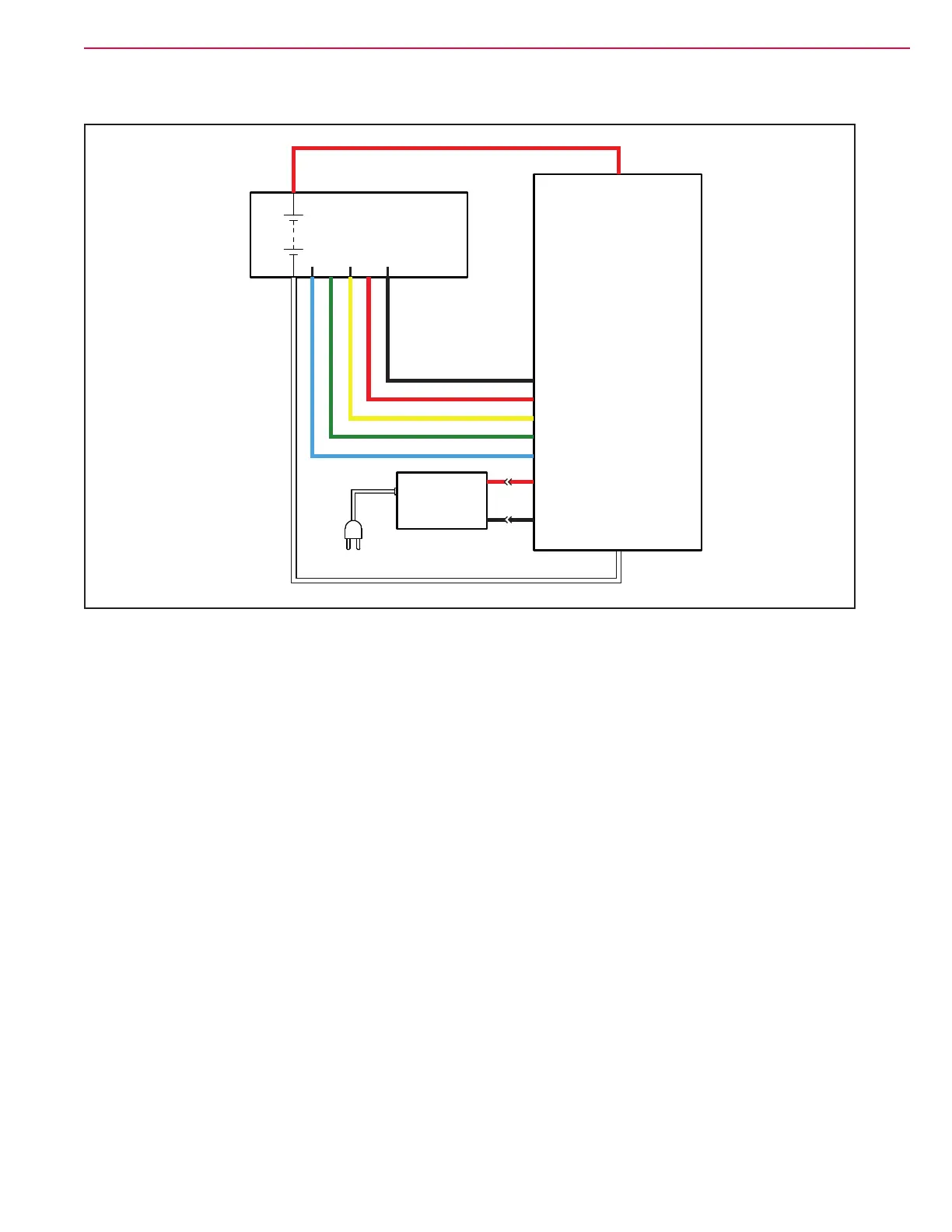

Wiring Diagram
LITHIUM BATTERY +
CONTROL SYSTEM
(BAT + BMS)
36V
BATTERY+
BATTERY-
C1.C2
C1.C1
C1.B2
C1.B1
C1.A1
BATT.1 Battery LED input - flashing
BATT.2 Battery LED input - timed
BATT.5 Battery LED input - data
BATT.3 CAN-H (a1)
BATT.4 CAN-L ( )
CHARGE.1 Battery charger input
CHARGE.2 Battery charger input
BATTERY CHARGER (CH)
MAIN MACHINE
CONTROLLER (EB1)
Figure 1
To Next Page
