40 - Recovery System 94Service Manual – SC250, Scrubtec 334, MA 30
Vacuum System Motor (continues)
Disassembly

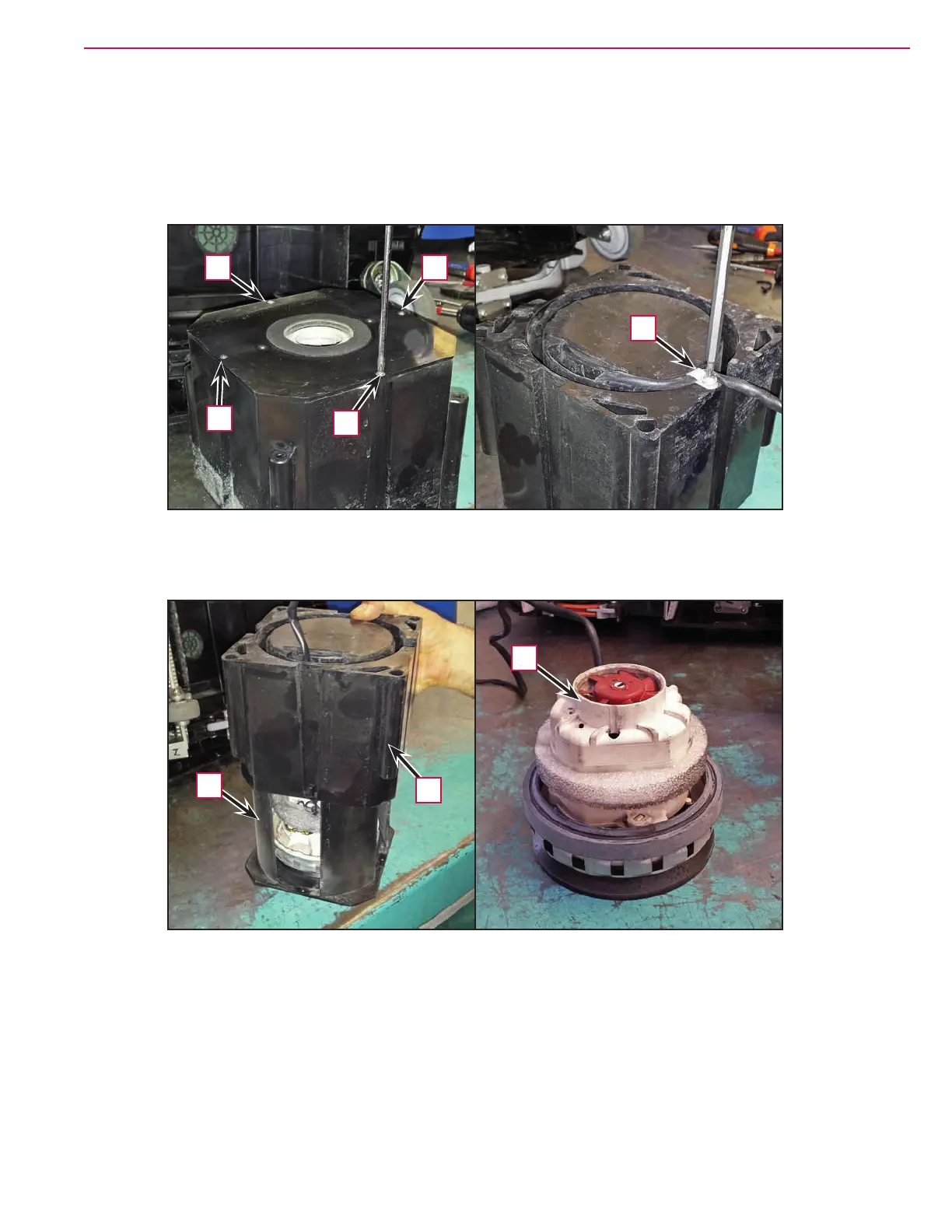

10. At the workbench, unscrew the 4 screws (H), then carefully rotate the vacuum system assembly.
11. Remove the clamp (I).
Figure 12
I
H
H
H
H
12. Lift the outer container (J) out of the inner container (K), then extract the motor (L).
Figure 13
L
J
K
