04 - Control System 31Service Manual – SC250, Scrubtec 334, MA 30
Main Machine Controller (EB1) Connectors (continues)

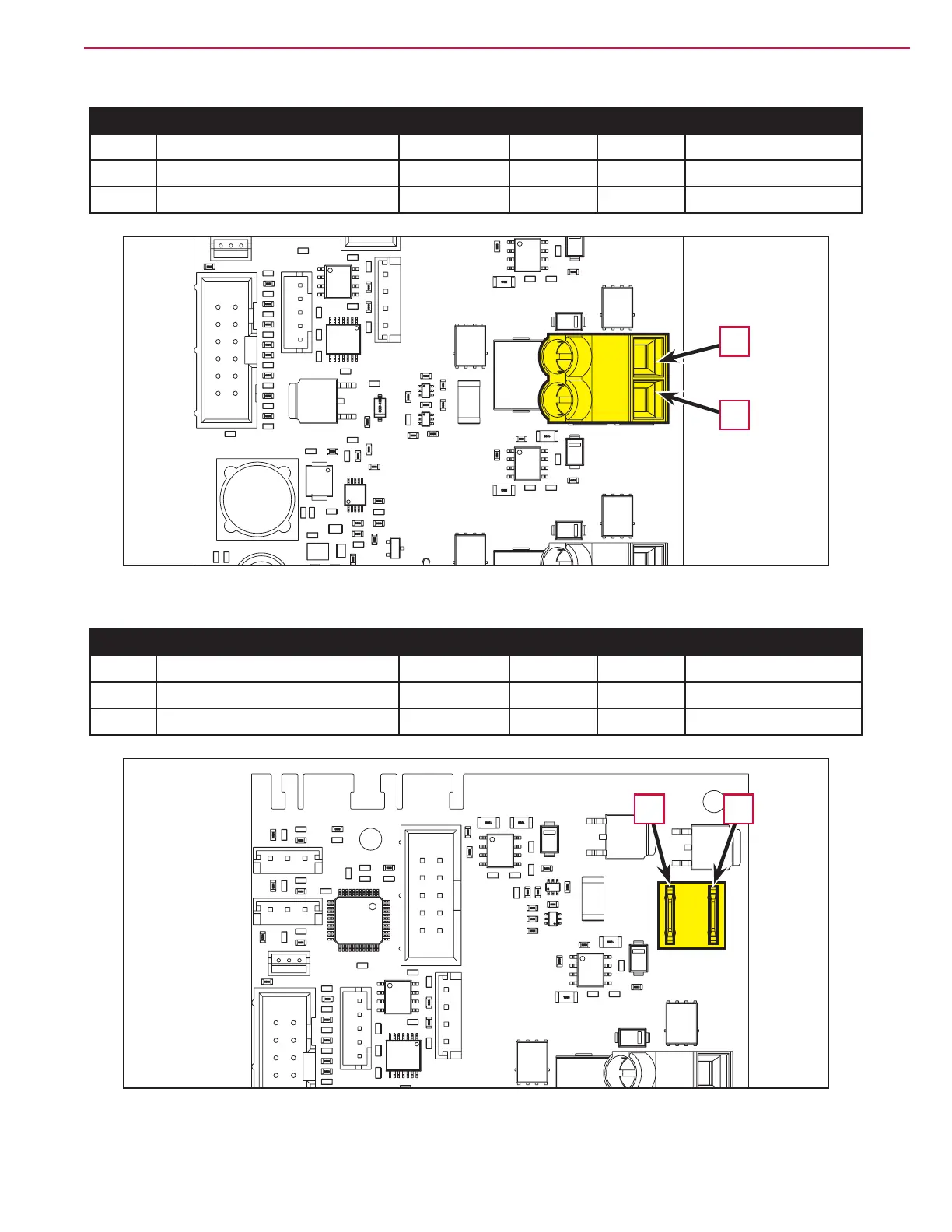

OUT2: type FCI T702035100J0G (2 ways, screw type)
PIN Description El. board in/out V ref. I max. Connected to
1 Vacuum motor output + Out 36V 20A M2+
2 Vacuum motor output - Out 0V 20A M2-
2
1
Figure 25
OUT3: faston 6.3x0.8mm (2 ways, vertical)
PIN Description El. board in/out V ref. I max. Connected to
1 Water pump output + Out 24V 2A PM+
2 Water pump output - Out 0V 2A PM-
1
2
Figure 26
