04 - Control System 32Service Manual – SC250, Scrubtec 334, MA 30

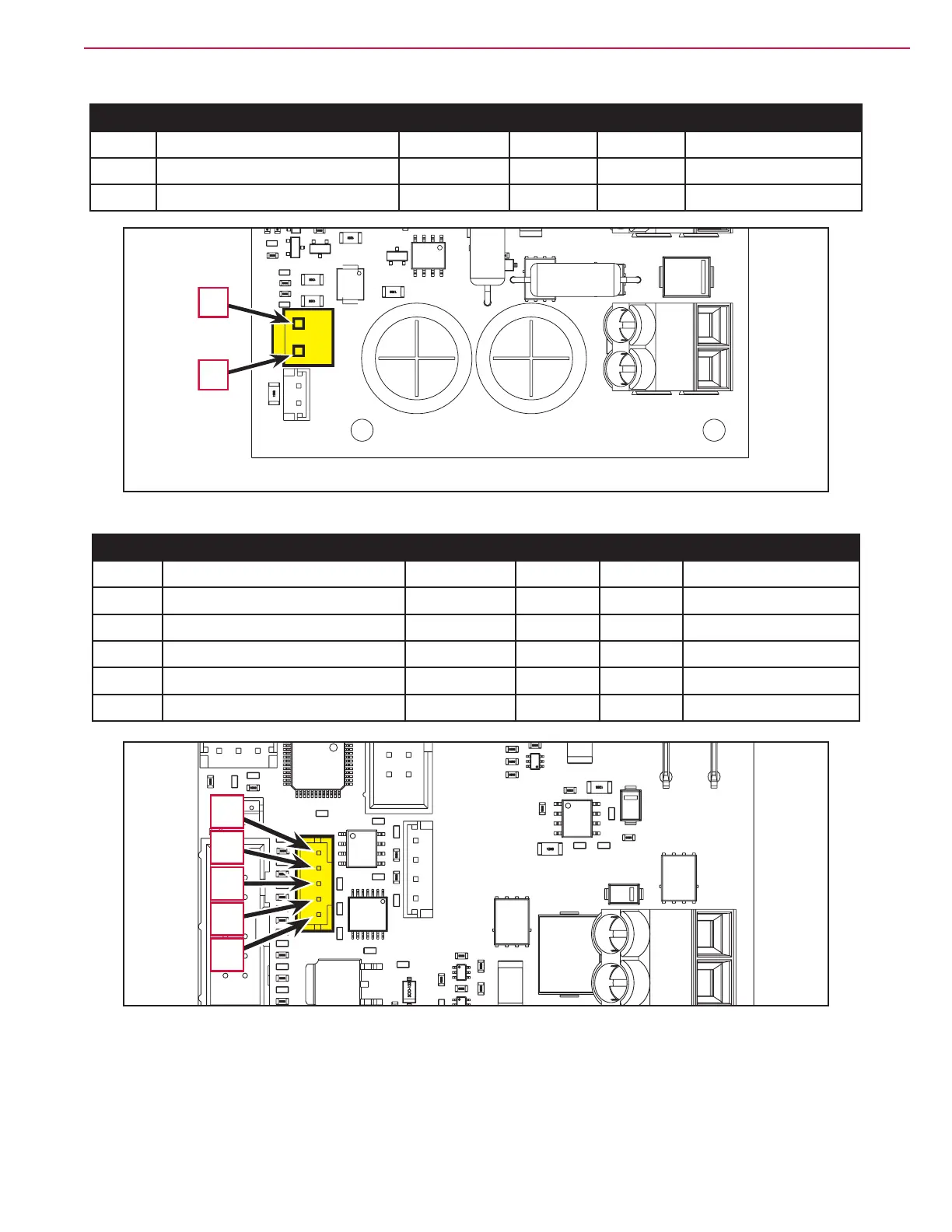

Main Machine Controller (EB1) Connectors (continues)
CHARGE: JST B2P-VH(LF)(SN) (2 ways, vertical)
PIN Description El. board in/out V ref. I max. Connected to
1 Battery charger input + In 36V 2A CH+
2 Battery charger input - In 0V 2A CH-
2
1
Figure 27
BATT: JST B5B-PH-K-S (5 ways, vertical)
PIN Description El. board in/out V ref. I max. Connected to
1 Battery LED input - strobe In 0-3.3V <1A BAT.A1
2 Battery LED input - clock In 0-3.3V <1A BAT.B1
3 CAN-H (not used) In-out 0-3.3V <1A BAT.C1
4 CAN-L (not used) In-out 0-3.3V <1A BAT.C2
5 Battery LED input - data In 0-3.3V <1A BAT.B2
2
3
4
5
1
Figure 28
