Nilfisk-Advance Advance SC250

30 - Solution System 52Service Manual – SC250, Scrubtec 334, MA 30

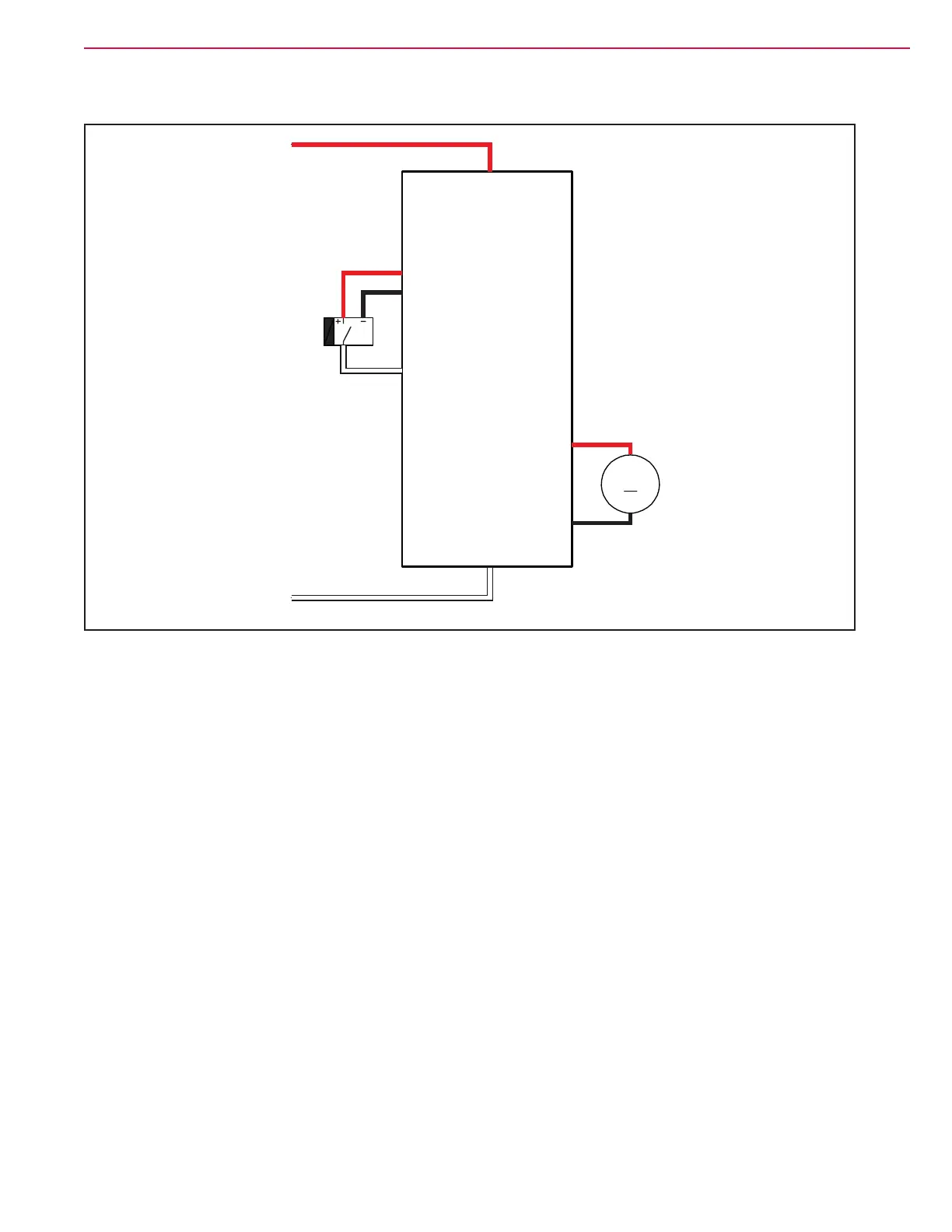

Wiring Diagram
BATTERY+
BATTERY-
Water pump output OUT3.+
Water pump output OUT3.-
C.2
C.1
C.3
PM
WATER
SENSOR (S3)
WATER
PUMP (PM)
MAIN MACHINE
CONTROLLER (EB1)
Figure 1
