40 - Recovery System 97Service Manual – SC250, Scrubtec 334, MA 30
Vacuum System Motor (continues)

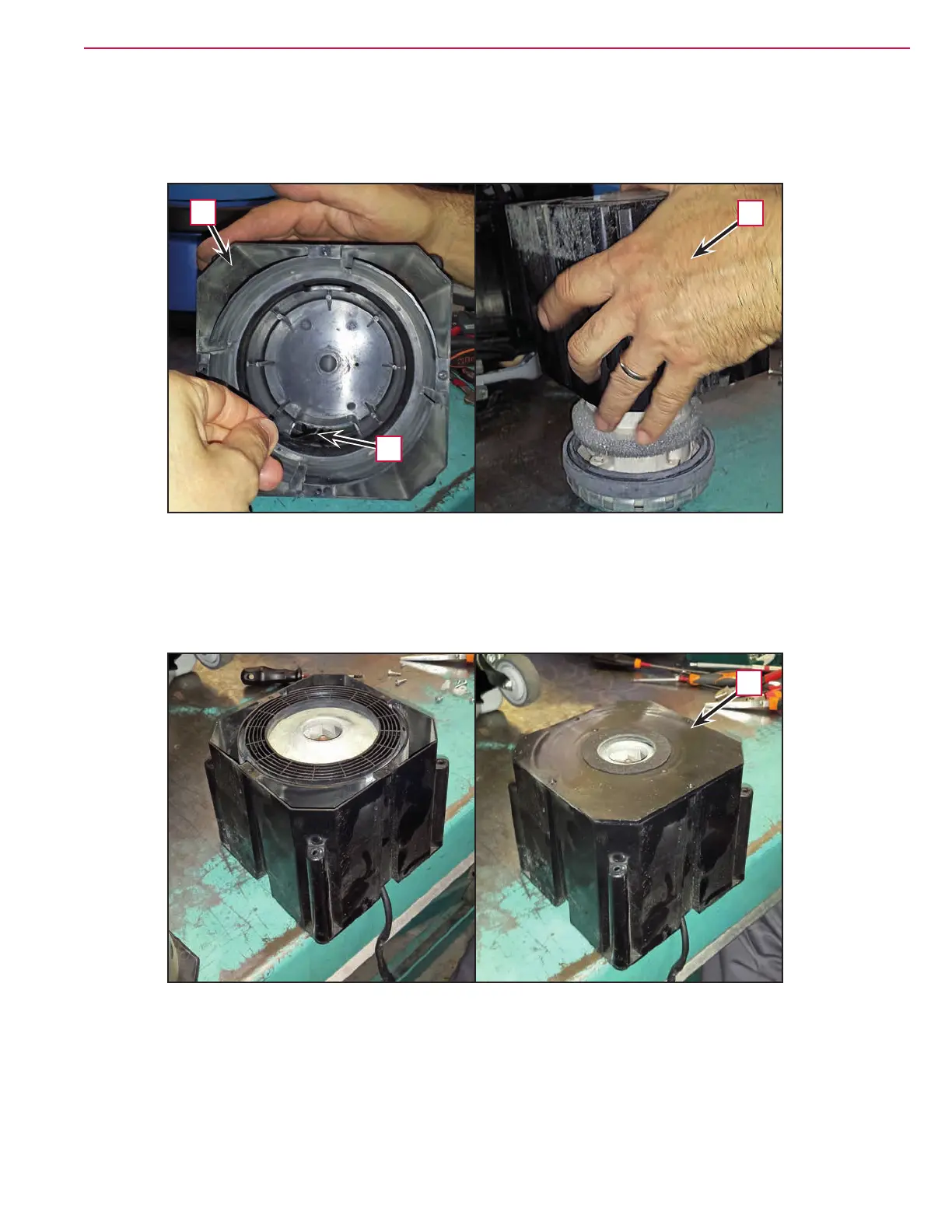

21. Run the wiring (E) inside the large hole in the outer container (J).
22. Insert the vacuum system motor in the outer container, as shown (S).
Figure 18
E
S
J
23. Rotate the outer container with the vacuum system motor. Check that the motor and gasket are
positioned almost in line with the outer edge of the container.
24. Fit the inner container (K) and fasten it with the 4 screws.
Figure 19
K
Installation
25. Continue to assemble the components in the reverse order of disassembly.
