Wheel System, Traction 203Service Manual – SC6500
™

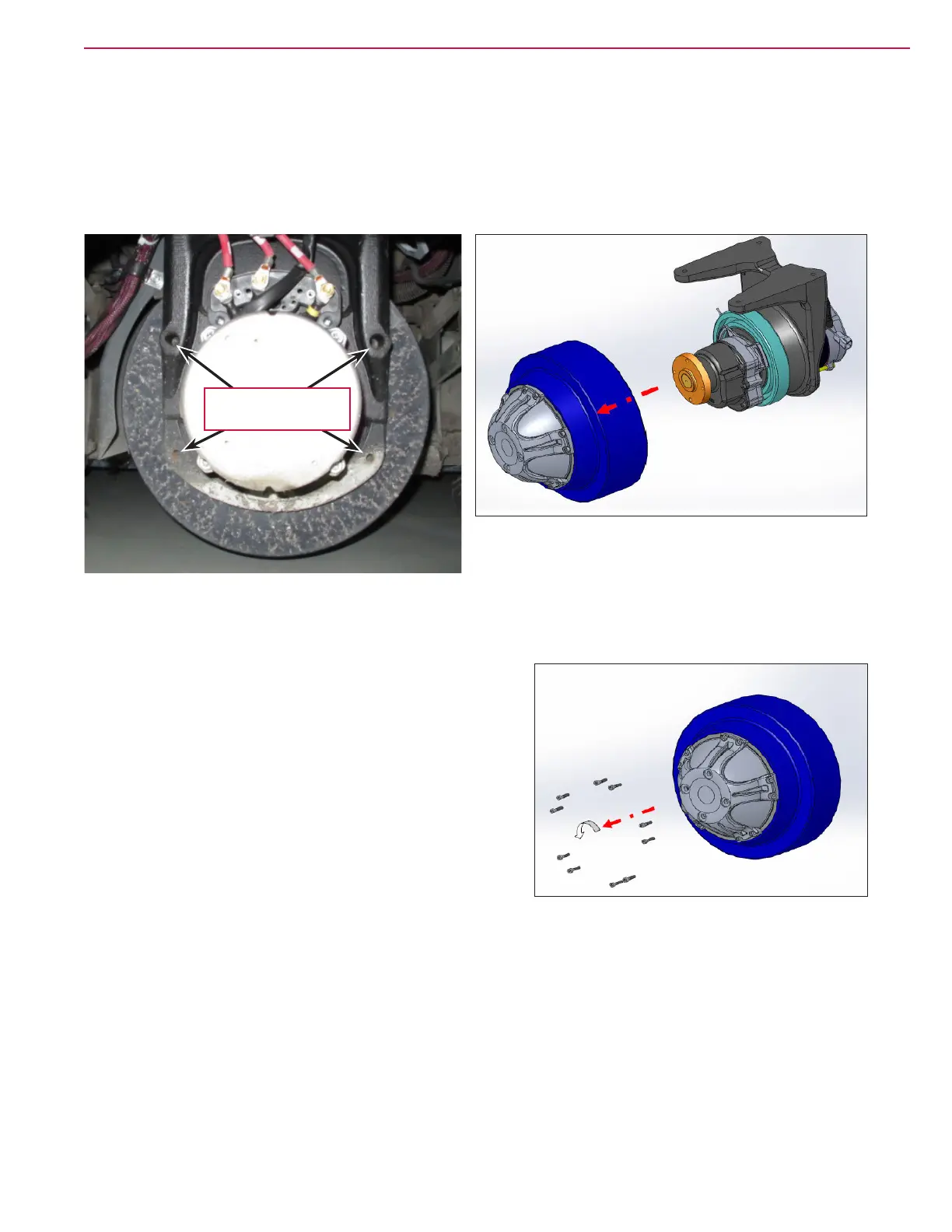

3. Turn the wheel so that the motor is facing forward. Remove the tire/wheel assembly using special Tire
Puller Kit 56422174
a. Insert the “puller” extractor screws in the casting threaded holes as shown and turn them in until
each screw touches the rim of the tire. Then turn all of them evenly in small increments until the
wheel is pushed off the support bearing.
b. Remove puller screws
Threaded holes for “puller”
screws
4. Remove 10 fasteners around the
perimeter of the drive wheel hub and
separate the drive wheel hub from the
wheel/tire.
