LAYER2 INTERFACE

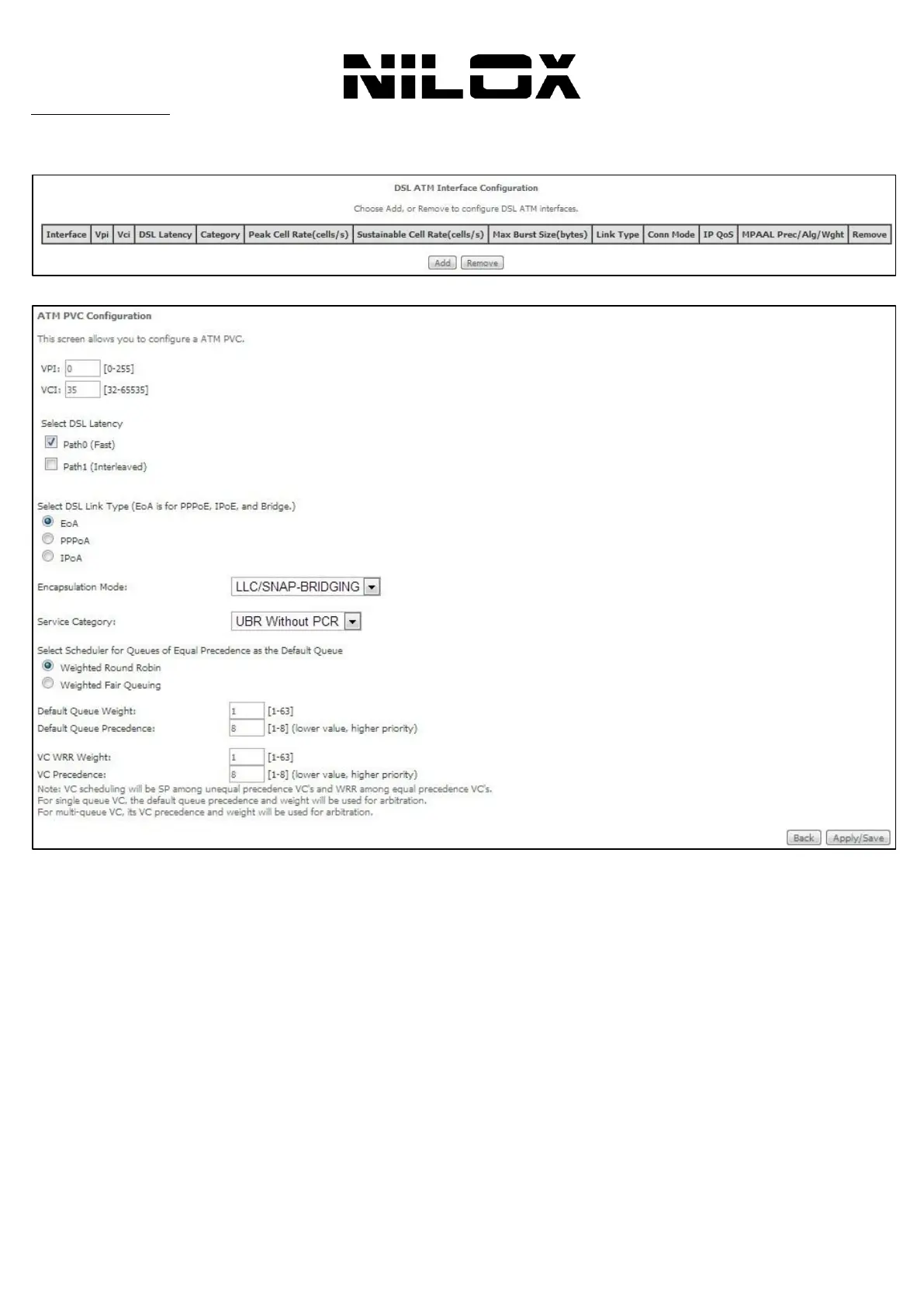

Choose Advanced Setup > Layer2 Interface > ATM Interface . In this page, you can add or remove to configure DSL
ATM Interfaces.
Click Add to add ATM Interface and the following page appears.
In this page, you can enter this PVC (VPI and VCI) value, and select DSL link type (EoA is for PPPoE, IPoE, and Bridge.),
encapsulation mode, service category.
 VPI (Virtual Path Identifier): The virtual path between two points in an ATM network, and its valid value is from 0
to 255.
 VCI (Virtual Channel Identifier): The virtual channel between two points in an ATM network, ranging from 32 to
65535 (1 to 31 are reserved for known protocols).
 DSL Link Type: EoA (it is for PPPoE, IPoE, and Bridge), PPPoA, or IPoA
 Encapsulation Mode: LLC/SNAP-BRIDGING, or VC/MUX
 Service Category: UBR Without PCR, UBR With PCR, CBR, Non Realtime VBR, Realtime VBR.
 Select Scheduler for Queues of Equal Precedence as the Default Queue: Weighted Round Robin or Weighted
Fair Queuing.
