When shimming is complete, connecting rods and pin bearings should be positioned near
center
of
crosshead opening (Figure 8-42).
If
any pin bearing rubs on the inside
of
any
crosshead, transfer shims from one side
of
the pump to the other side to shift the crankshaft.
Connecting Rod
Crosshead
Crosshead Pin
Note:
J
/
Crosshead Pin Bearing
Provide gap on both sides of crosshead so bearing does not rub.

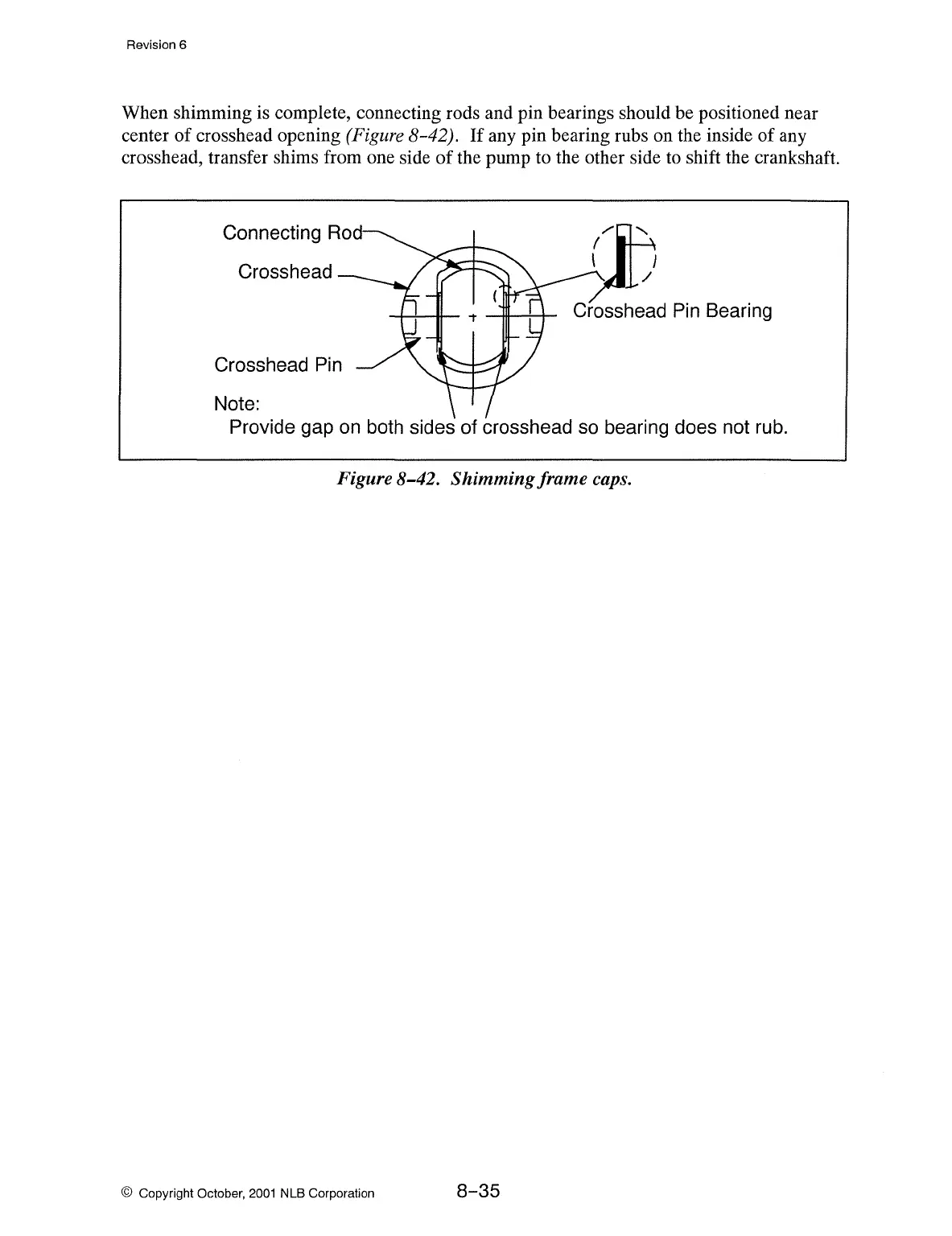

Figure 8-42.
Shimming
frame caps.
