NLB 1012D - Discharge Piping - 1012 DB

Revision 7

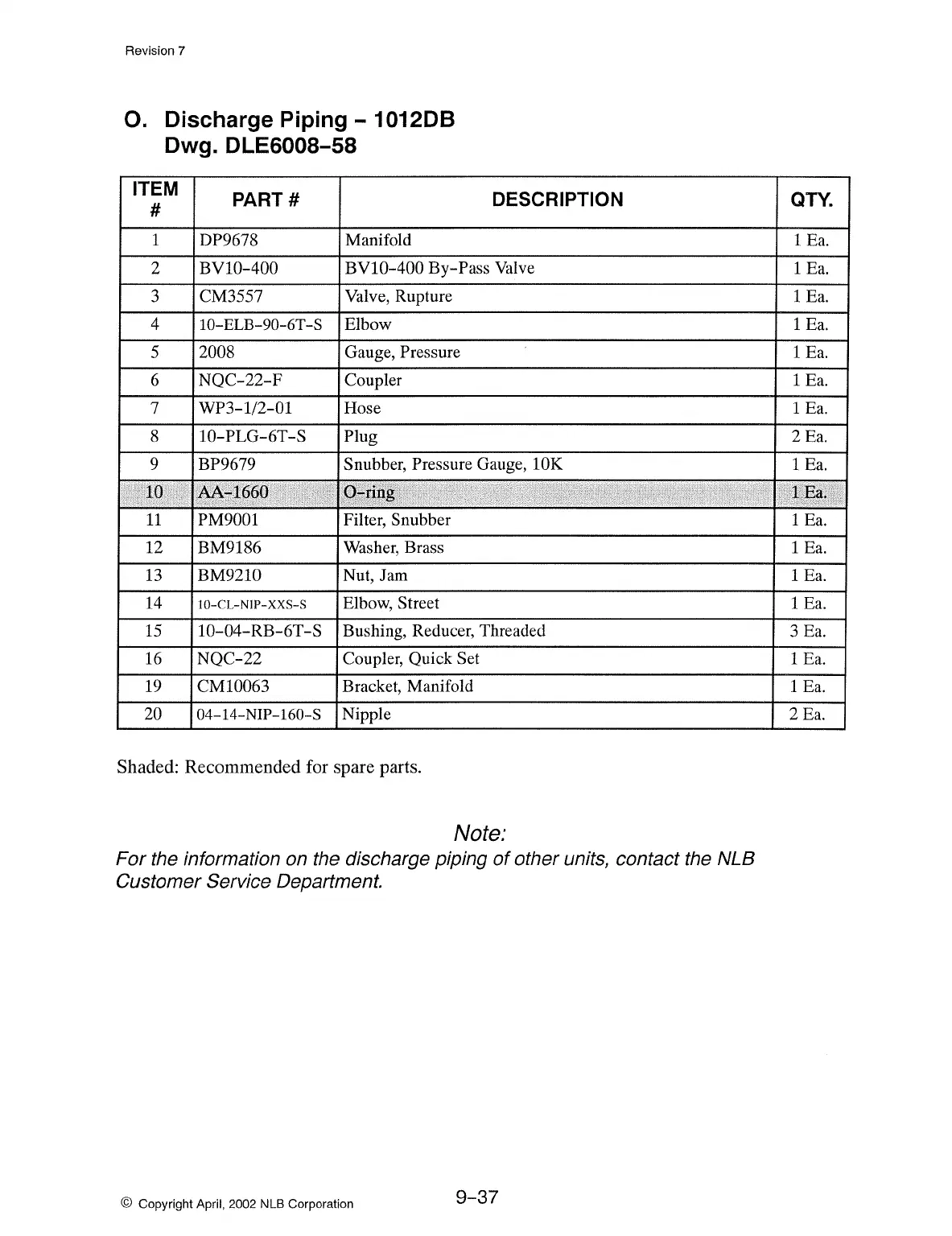

0. Discharge Piping - 101208
Dwg. DLE6008-58
ITEM
PART#
DESCRIPTION
#
1
DP9678
Manifold
2
BVl0-400
BVl0-400
By-Pass Valve
3 CM3557
Valve, Rupture
4
10-ELB-90-6T-S
Elbow
5 2008
Gauge, Pressure
6
NQC-22-F Coupler
7
WP3-1/2-01 Hose
8
10- PLG-6T -S Plug
9 BP9679 Snubber, Pressure Gauge, lOK
10
.... AA-1660 ·.·
·•
Q~@.g
.
11 PM9001 Filter, Snubber
12 BM9186
Washer, Brass
13 BM9210
Nut, Jam
14
10-CL-NIP-XXS-S Elbow, Street
15 10-04-RB-6T-S Bushing, Reducer, Threaded
16
NQC-22 Coupler, Quick Set
19 CM10063
Bracket, Manifold
20
04-14-NIP-160-S
Nipple
Shaded: Recommended for spare parts.
Note:
For the information on the discharge piping of other units, contact the NLB
Customer Service Department.
© Copyright April, 2002 NLB Corporation
9-37
QTY.
1 Ea.
1
Ea.
1 Ea.
1 Ea.
1
Ea.
1 Ea.
1 Ea.
2Ea.
1 Ea.
·.
lEa.
1 Ea.
1
Ea.
1 Ea.
1 Ea.
3
Ea.
1 Ea.
1
Ea.
2Ea.
