Ill. Specifications
Note:
Some specifications
may
differ from those
of
your unit. Contact NLB
if
you require
clarification.
A. 13120, 10120,
8120,
6120,
5120,
4120,
3.5120, 3120, 10600,
8600,
&
7600
High Pressure Water Jetting Units

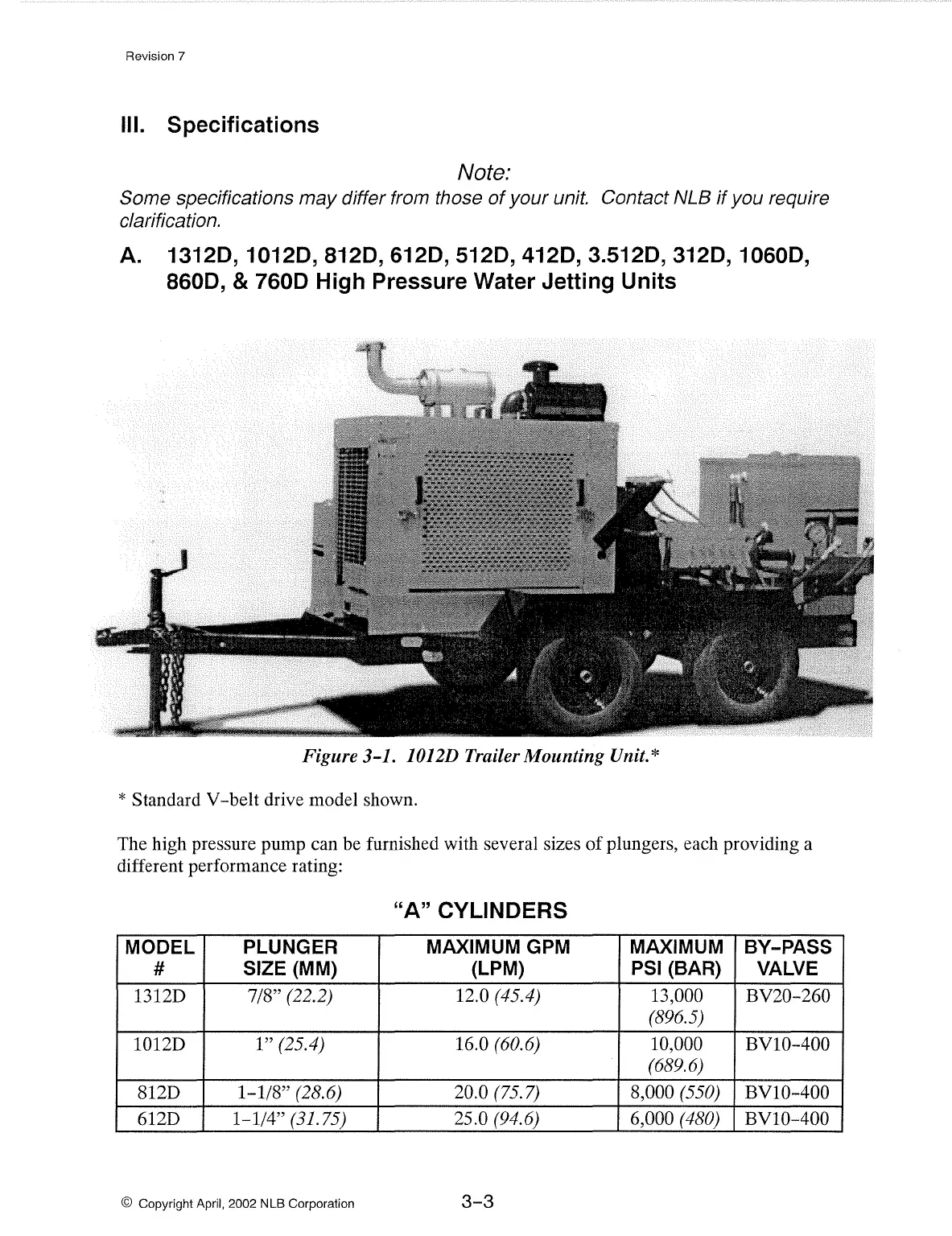

Figure 3-1. 1012D Trailer Mounting Unit.*
* Standard V
-belt
drive model shown.
The high pressure pump can be furnished with several sizes
of
plungers, each providing a
different performance rating:
"A" CYLINDERS
MODEL PLUNGER
MAXIMUM
GPM MAXIMUM BY-PASS
#
SIZE (MM) (LPM)
PSI (BAR)
VALVE
1312D 7/8" (22.2)
12.0 (45.4) 13,000
BV20-260
(896.5)
1012D
l"
(25.4)
16.0 (60.6)
10,000
BVl0-400
(689.6)
812D
1-1/8"
(28. 6)
20.0 (75.7) 8,000 (550)
BVl0-400
612D 1-1/4" (31. 75) 25.0 (94.6)
6,000 (480)
BVl0-400
© Copyright April, 2002 NLB Corporation
3-3
