Revision
11
B.

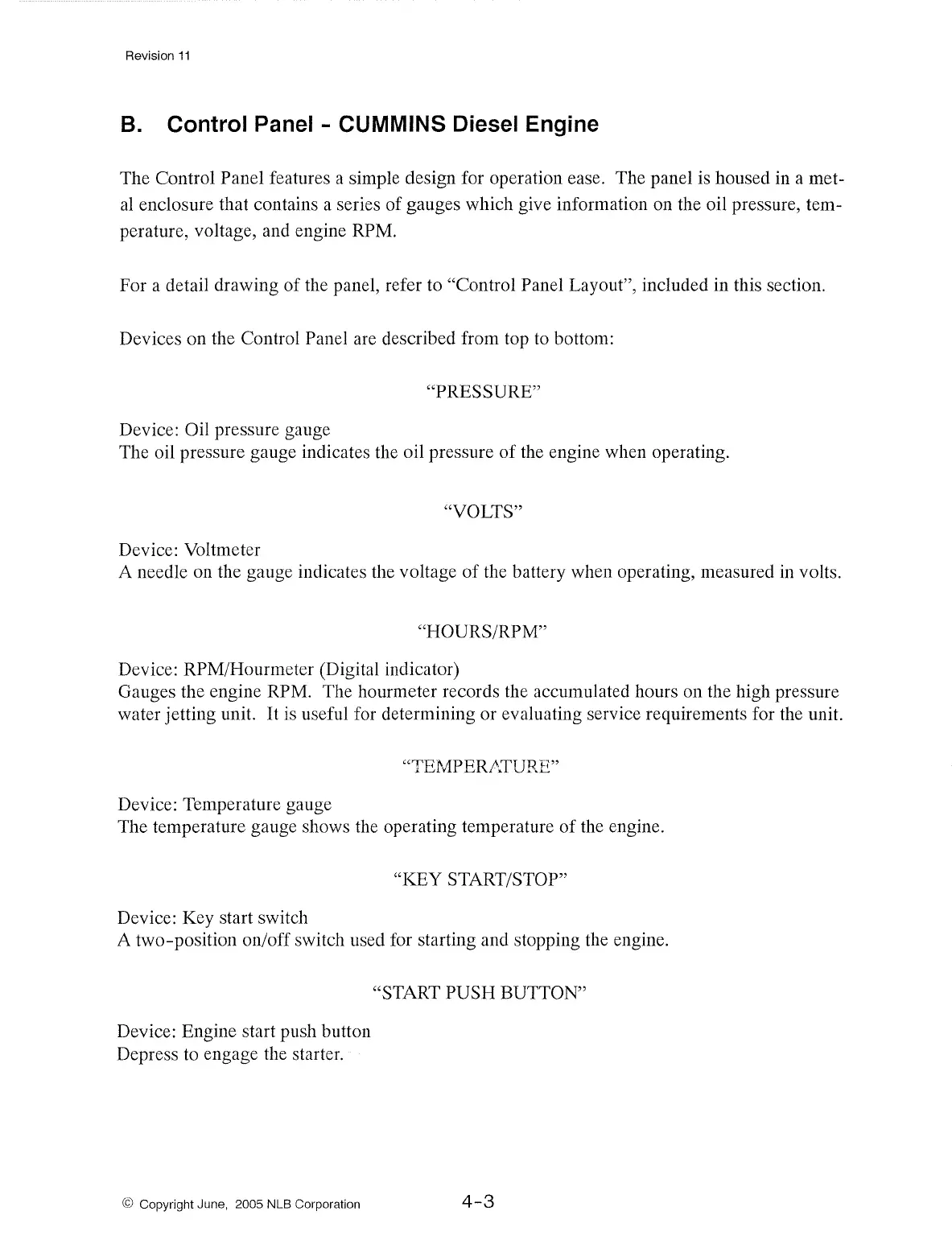

Control Panel - CUMMINS Diesel Engine
The Control Panel features a simple design for operation ease. The panel is housed in a met-
al
enclosure that contains a series of gauges which give information on the oil pressure, tem-
perature, voltage, and engine
RPM.
For a detail drawing of the panel, refer to "Control Panel Layout", included in this section.
Devices on the Control Panel are described from top to bottom:
"PRESSURE"
Device: Oil pressure gauge
The oil pressure gauge indicates the oil pressure
of
the engine when operating.
"VOLTS"
Device: Voltmeter
A needle on the gauge indicates the voltage
of
the battery when operating, measured
in
volts.
"HOURS/RPM"
Device: RPM/Hourmeter (Digital indicator)
Gauges the engine
RPM. The hourmeter records the accumulated hours on the high pressure
water jetting unit.
It
is
useful for determining or evaluating service requirements for the unit.
"TEMPERJ\TURE"
Device: Temperature gauge
The temperature gauge shows the operating temperature
of
the engine.
"KEY START/STOP"
Device: Key start switch
A two-position on/off switch used for starting and stopping the engine.
Device: Engine start push button
Depress to engage the starter.
© Copyright June, 2005 NLB Corporation
"START PUSH BUTTON"
4-3
