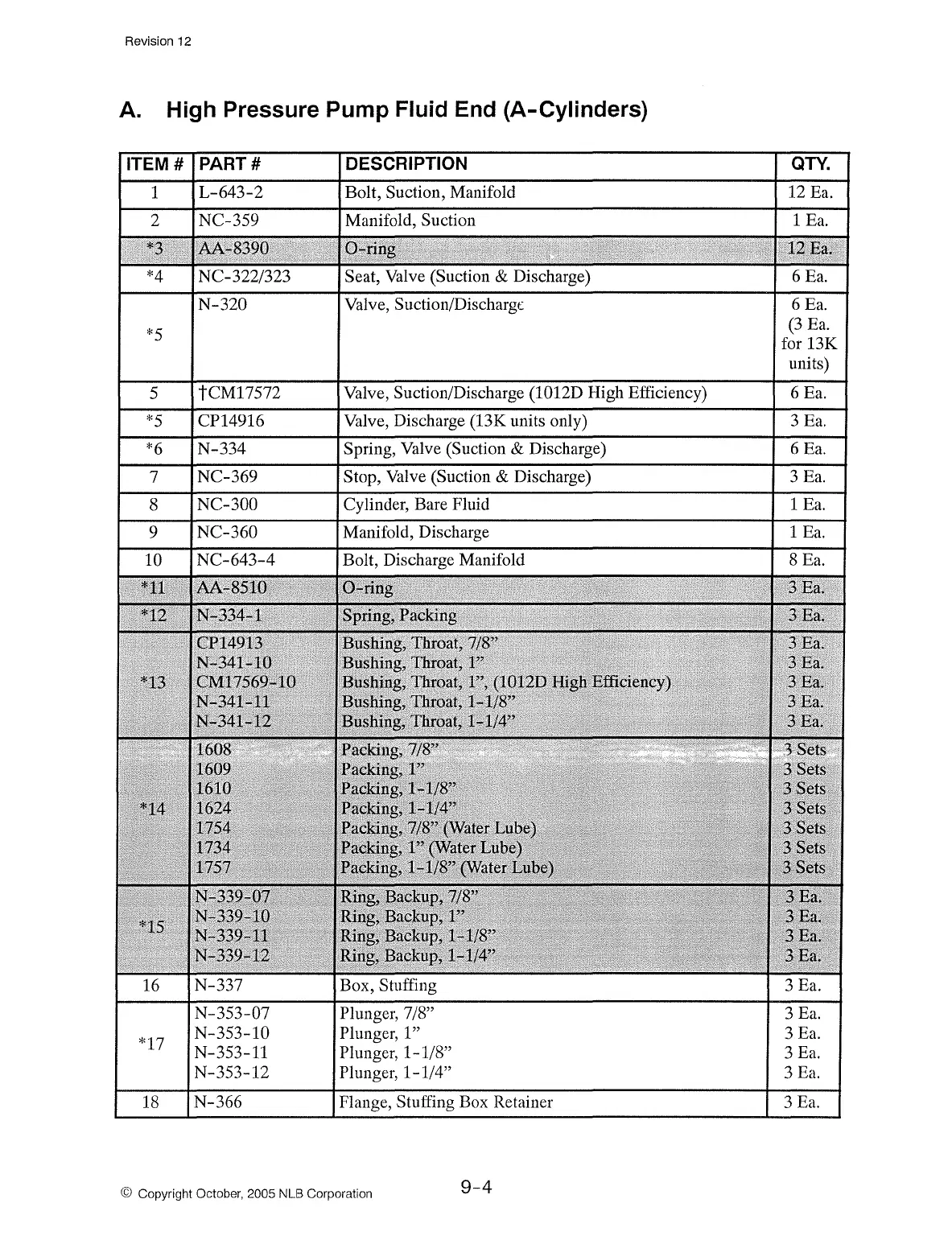

NLB 1012D - Pump Component Parts

Revision 12
A.
High Pressure Pump
Fluid End (A-Cylinders)
ITEM# PART#
DESCRIPTION QTY.
1
L-643-2 Bolt, Suction, Manifold 12 Ea.
2
NC-359 Manifold, Suction 1 Ea.
*4
NC-322/323 Seat, Valve (Suction & Discharge) 6Ea.
N-320 Valve, Suction/Dischargt: 6 Ea.
*5
(3 Ea.
for 13K
units)
5
tCM17572
Valve, Suction/Discharge (1012D High Efficiency) 6 Ea.
*5
CP14916
Valve, Discharge (13K units only)
3 Ea.
*6
N-334
Spring, Valve (Suction & Discharge) 6Ea.
7
NC-369
Stop, Valve (Suction & Discharge) 3 Ea.
8
NC-300 Cylinder, Bare Fluid
1 Ea.
9
NC-360 Manifold, Discharge 1 Ea.
10
NC-643-4 Bolt, Discharge Manifold 8Ea.
16
N-337
Box, Stuffing 3 Ea.
N-353-07
Plunger, 7 /8"
3 Ea.
*17
N-353-10
Plunger, l" 3 Ea.
N-353-11
Plunger, l-1/8" 3 Ea.
N-353-12 Plunger, l-1/4"
3 Ea.
18
N-366
Flange, Stuffing Box Retainer 3 Ea.
