NLB 1012D - NSP-3000 Rupture Disc Valve Assembly

Revision 7

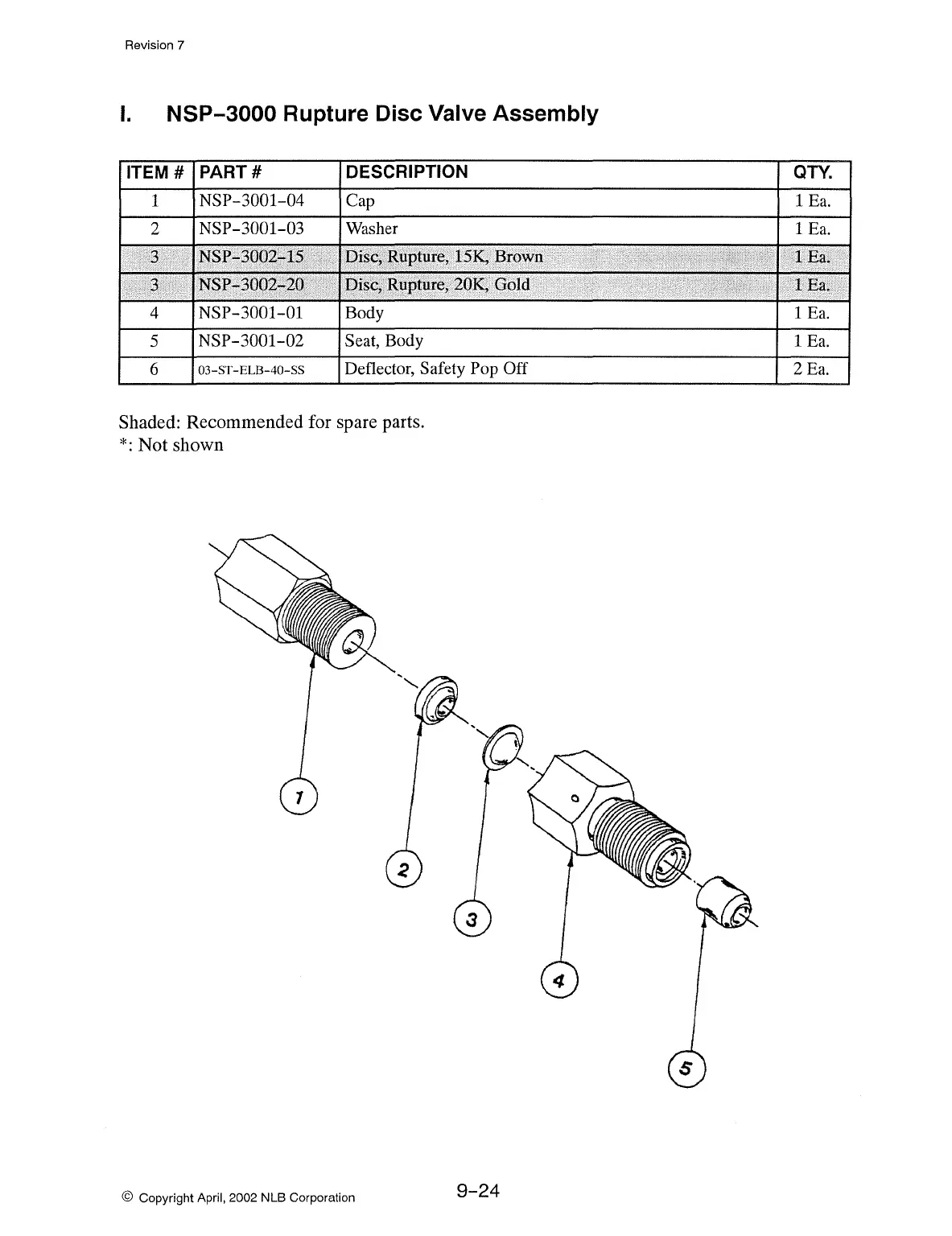

I. NSP-3000 Rupture Disc Valve Assembly
ITEM#
PART#
DESCRIPTION
1
NSP-3001-04
Cap
2
NSP-3001-03
Washer
3
NSP-3002;,,.15
Disc, Rupture, lSK, Brown
3
NSP-3002-20 Di~c, Rupture, 20.K, Gold
4
NSP-3001-01
Body
5
NSP-3001-02 Seat, Body
6
03-ST-ELB-40-SS Deflector, Safety Pop Off
Shaded: Recommended for spare parts.
*:Not shown
© Copyright April, 2002 NLB Corporation
9-24
QTY.
1 Ea.
1 Ea.
..
lEa:
:
.·
...
:
lEa;
1 Ea.
1 Ea.
2Ea.
