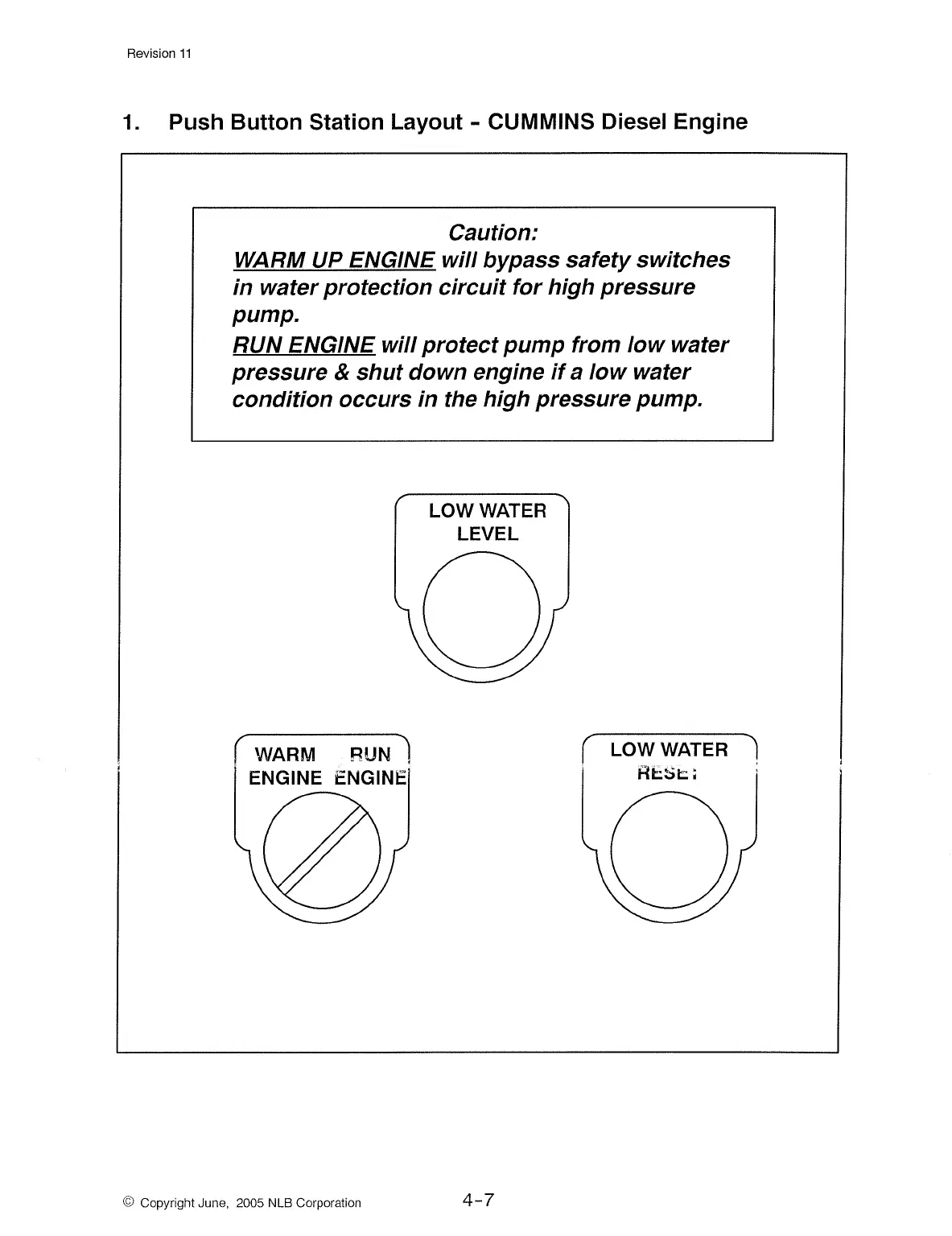

NLB 1012D - Push Button Station Layout - CUMMINS Diesel Engine

Revision 11
1. Push Button Station Layout - CUMMINS Diesel Engine
Caution:
WARM
UP ENGINE will bypass safety switches
in water protection
circuit for high pressure
pump.
RUN ENGINE will protect pump from low water
pressure
& shut down engine if a low water
condition occurs in the high pressure pump.
(WARM RUN I
ENGINE ENGINE
© Copyright June, 2005 NLB Corporation
LOW WATER
LEVEL
4-7
( LOWWATER I
At.:.::>t::; ·
