Revision 2

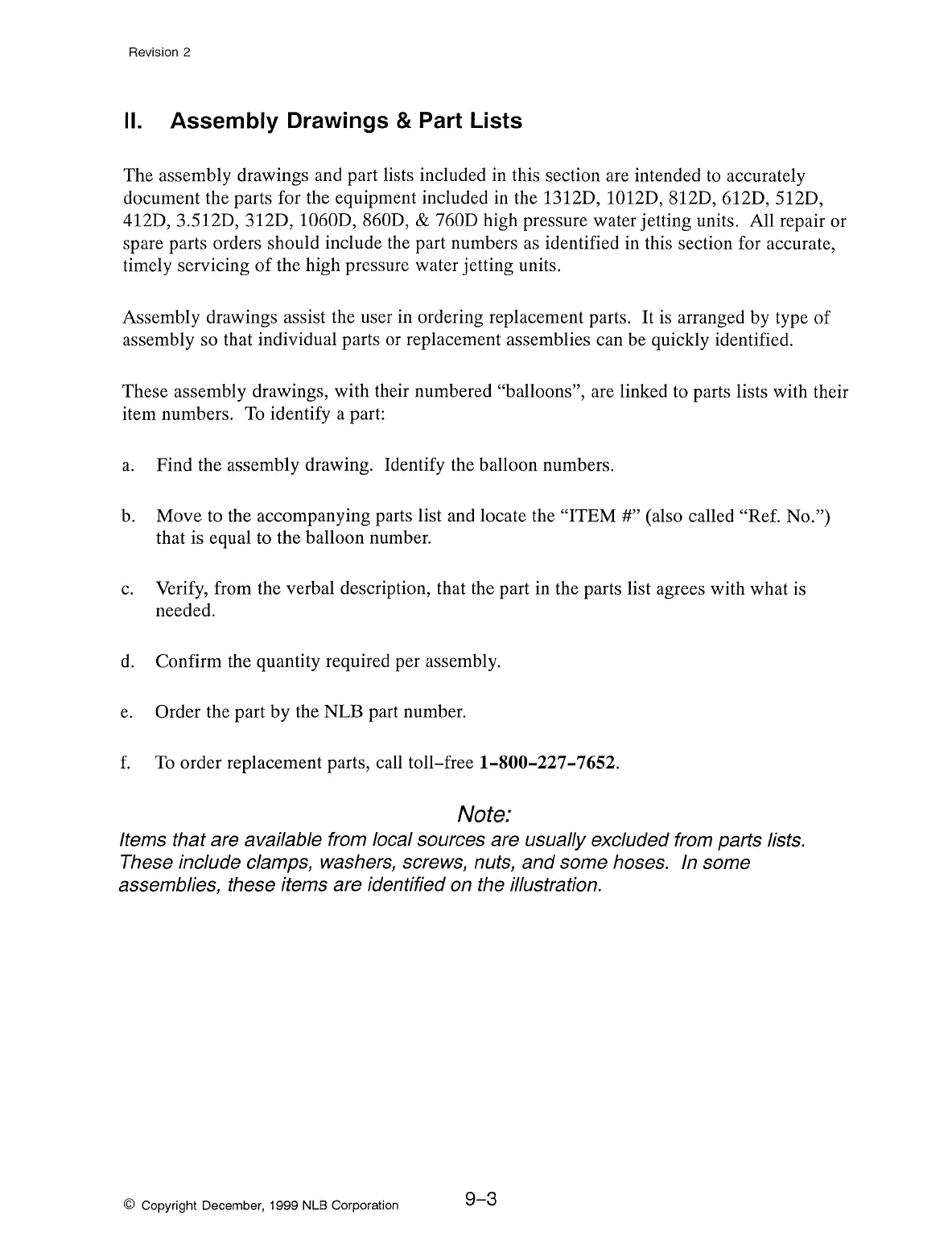

II. Assembly Drawings & Part Lists
The assembly drawings and part lists included in this section are intended
to
accurately
document the parts for the equipment included
in
the 1312D, 1012D, 812D, 612D, 512D,
412D, 3.512D, 312D,
1060D, 860D, & 760D high pressure water jetting units. All repair or
spare parts orders should include the part numbers
as
identified
in
this section for accurate,
timely servicing of the high pressure water jetting units.
Assembly drawings assist the user in ordering replacement parts.
It
is arranged by type of
assembly so that individual parts or replacement assemblies can be quickly identified.
These assembly drawings, with their numbered
"balloons", are linked
to
parts lists with their
item numbers.
To
identify a part:
a.
Find the assembly drawing. Identify the balloon numbers.
b.
Move
to
the accompanying parts list and locate the
"ITEM#"
(also called "Ref. No.")
that is equal
to
the balloon number.
c.
Verify, from the verbal description, that the part in the parts list agrees with what is
needed.
d.
Confirm the quantity required per assembly.
e.
Order the part by the NLB part number.
f.
To
order replacement parts, call toll-free 1-800-227-7652.
Note:
Items that are available from local sources are usually excluded from parts lists.
These include clamps, washers, screws, nuts, and some hoses.
In
some
assemblies, these items are identified on the
illustration.
© Copyright December, 1999 NLB Corporation
9-3
