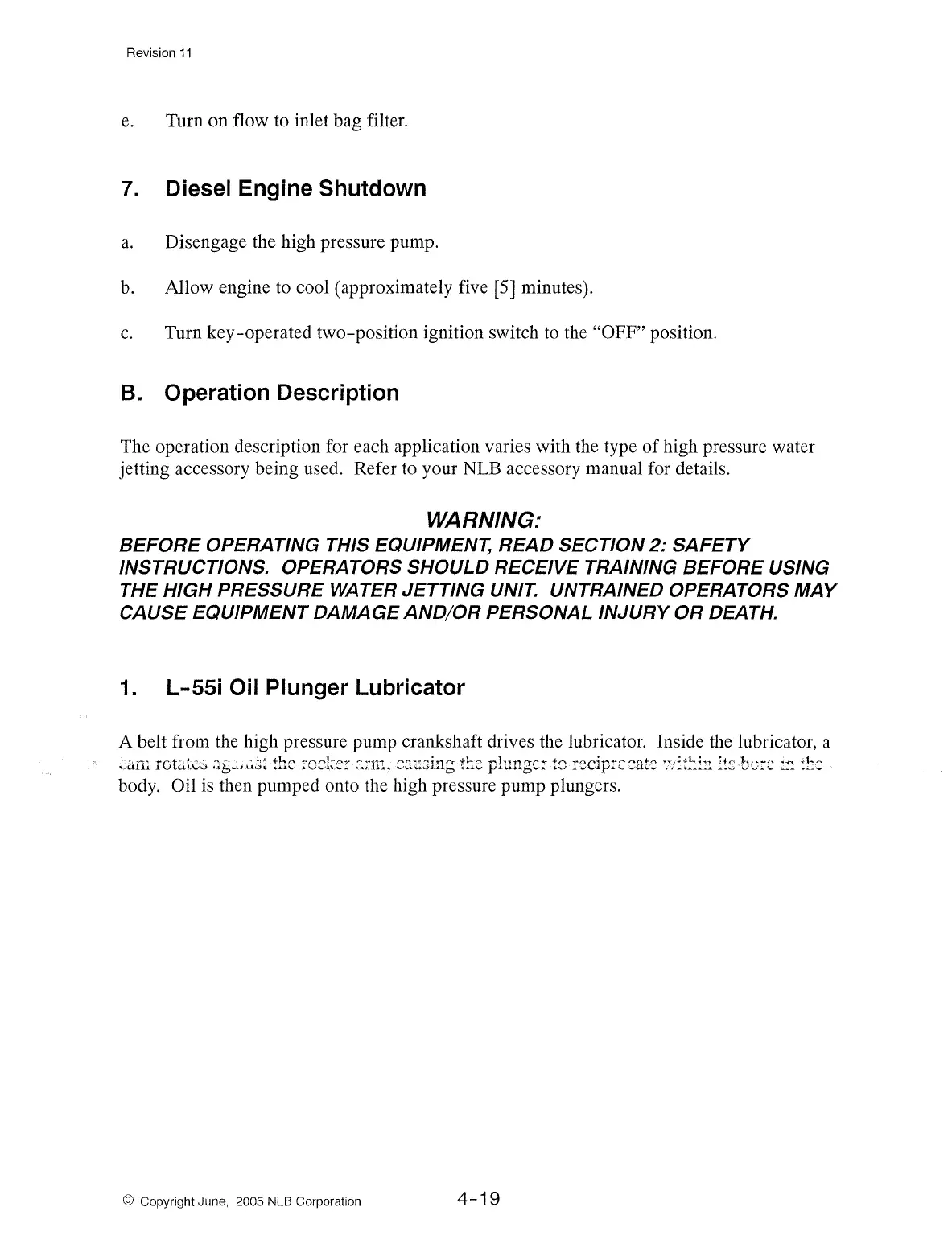

Revision 11
e. Turn on flow to inlet bag filter.
7. Diesel Engine Shutdown
a. Disengage the high pressure pump.
b. Allow engine to cool (approximately five [5] minutes).
c. Turn key-operated two-position ignition switch to the "OFF" position.
B. Operation Description
The operation description for each application varies with the type of high pressure water
jetting accessory being used. Refer to your NLB accessory manual for details.
WARNING:
BEFORE OPERATING THIS EQUIPMENT, READ SECTION 2: SAFETY
INSTRUCTIONS. OPERATORS SHOULD RECEIVE TRAINING BEFORE USING
THE HIGH PRESSURE WATER JETTING UNIT. UNTRAINED OPERATORS MAY
CAUSE EQUIPMENT DAMAGE AND/OR PERSONAL INJURY OR DEATH.
1. L-55i Oil Plunger Lubricator
A belt from the high pressure pump crankshaft drives the lubricator. Inside the lubricator, a
body.
Oil is then pumped onto the high pressure pump plungers.
© Copyright June, 2005 NLB Corporation
4-19
