Revision 6

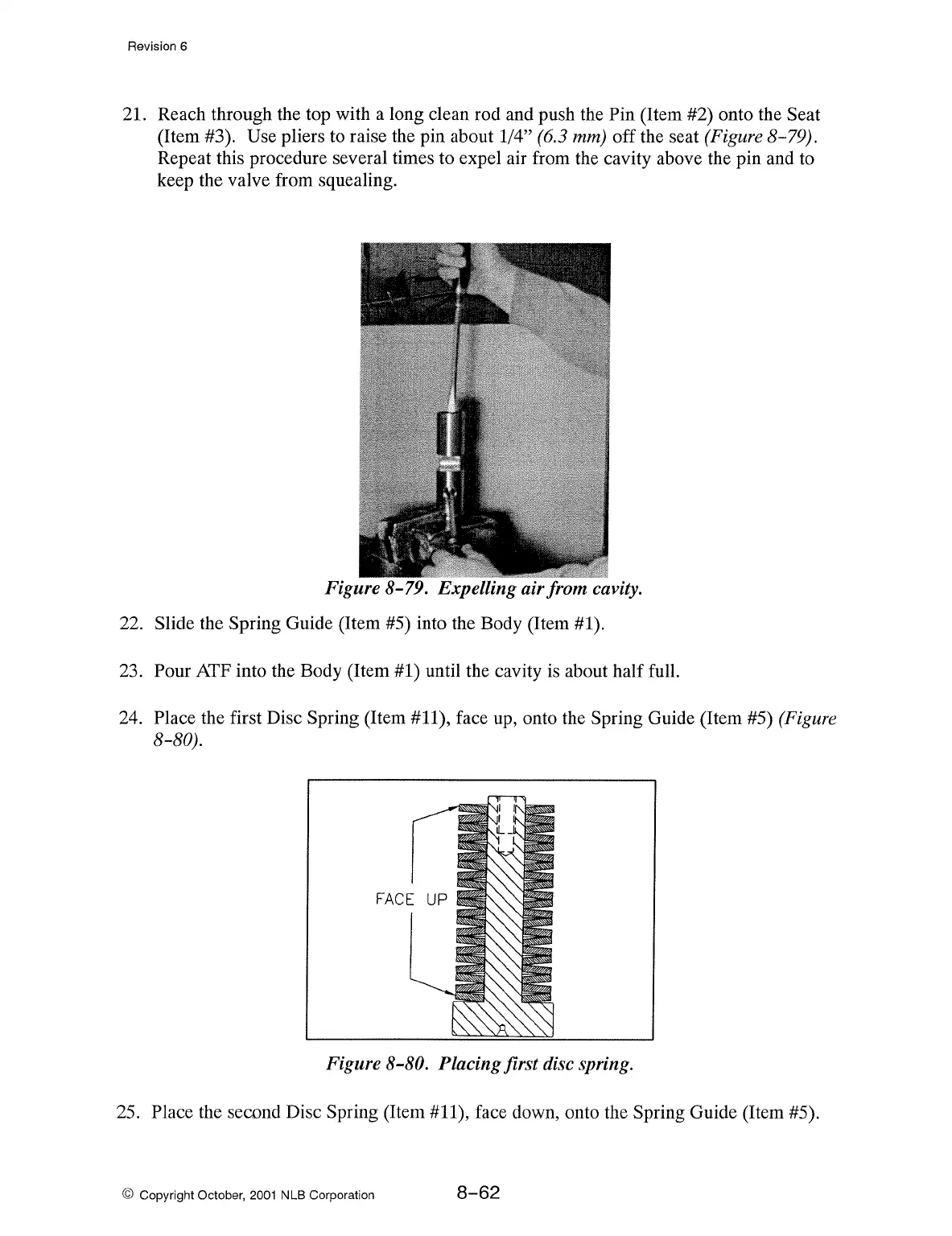

21. Reach through the top with a long clean rod and push the Pin (Item #2) onto the Seat
(Item #3). Use pliers to raise the pin about 1/4" (6.3 mm) off the seat (Figure 8-79).
Repeat this procedure several times to expel air from the cavity above the pin and to
keep the valve from squealing.
Figure 8-79. Expelling air from cavity.
22. Slide the Spring Guide (Item #5) into the Body (Item #1).
23. Pour
ATP into the Body (Item #1) until the cavity
is
about half full.
24. Place the first Disc
Spring (Item
#11
), face up, onto the Spring Guide (Item #5) (Figure
8-80).
Figure 8-80. Placing first disc spring.
25. Place the second Disc Spring (Item #11), face down, onto the Spring Guide (Item #5).
© Copyright October,
2001
NLB Corporation
8-62
