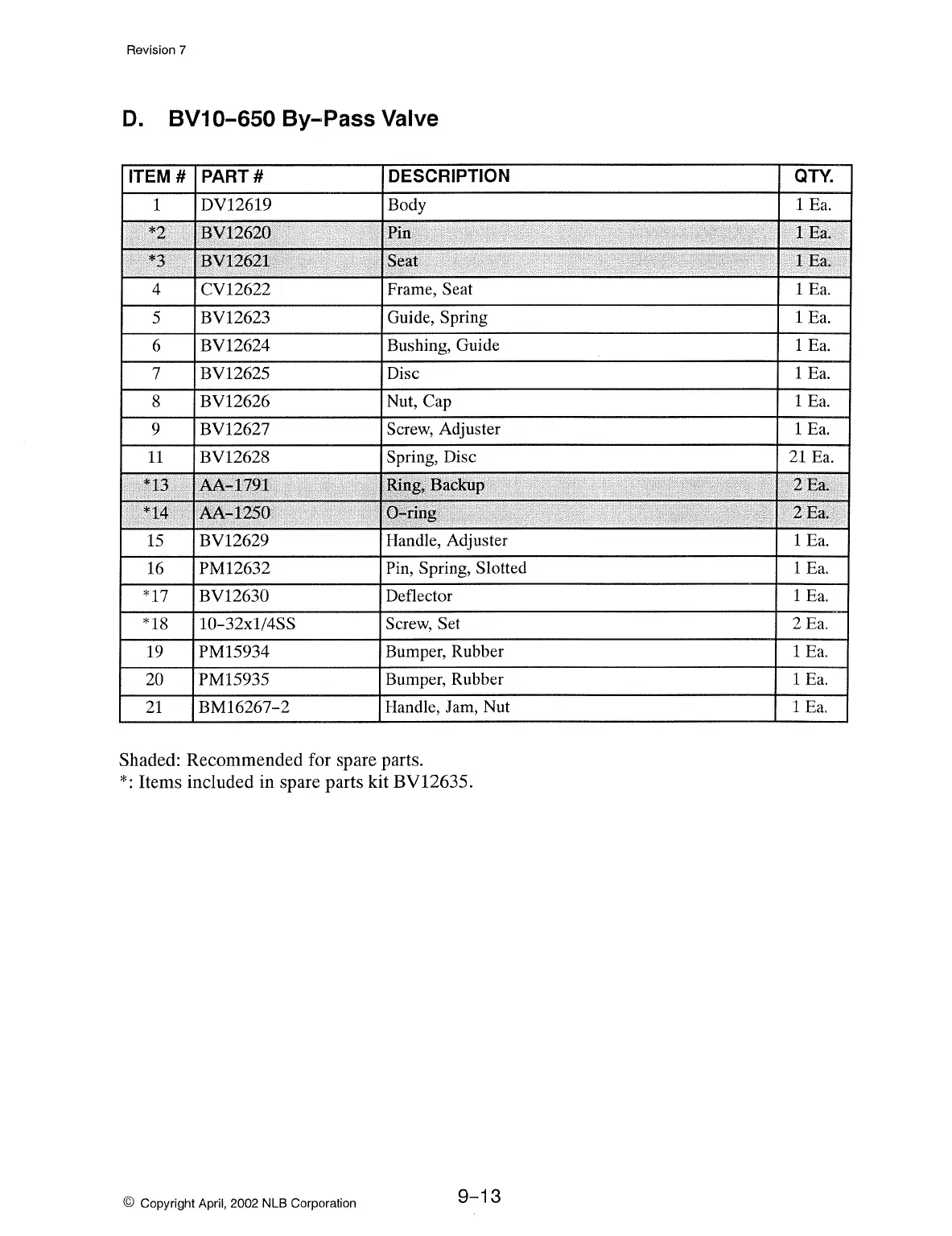

NLB 1012D - Valve and Filter Component Parts

Revision 7
D. BV10-650 By-Pass Valve
ITEM# PART#
DESCRIPTION
1
DV12619 Body
..
*2
BV12620
Pin
*3
BV12621
Seat
4 CV12622
Frame,
Seat
5 BV12623
Guide,
Spring
6
BV12624
Bushing, Guide
7
I BV12625
Disc
8 BV12626
Nut, Cap
9 BV12627
Screw, Adjuster
11 BV12628
Spring, Disc
*13
AA~179.1
R,ing, Backup
'i<14 AA-:1250
O;;..ring
..
15 BV12629
Handle, Adjuster
16
PM12632
Pin, Spring, Slotted
*17 BV12630 Deflector
*18
10-32xl/4SS Screw, Set
19
PM15934
Bumper, Rubber
20 PM15935
Bumper, Rubber
21
BM16267-2 Handle, Jam, Nut
Shaded: Recommended for spare parts.
*:Items included
in spare parts kit BV12635.
