Revision 12

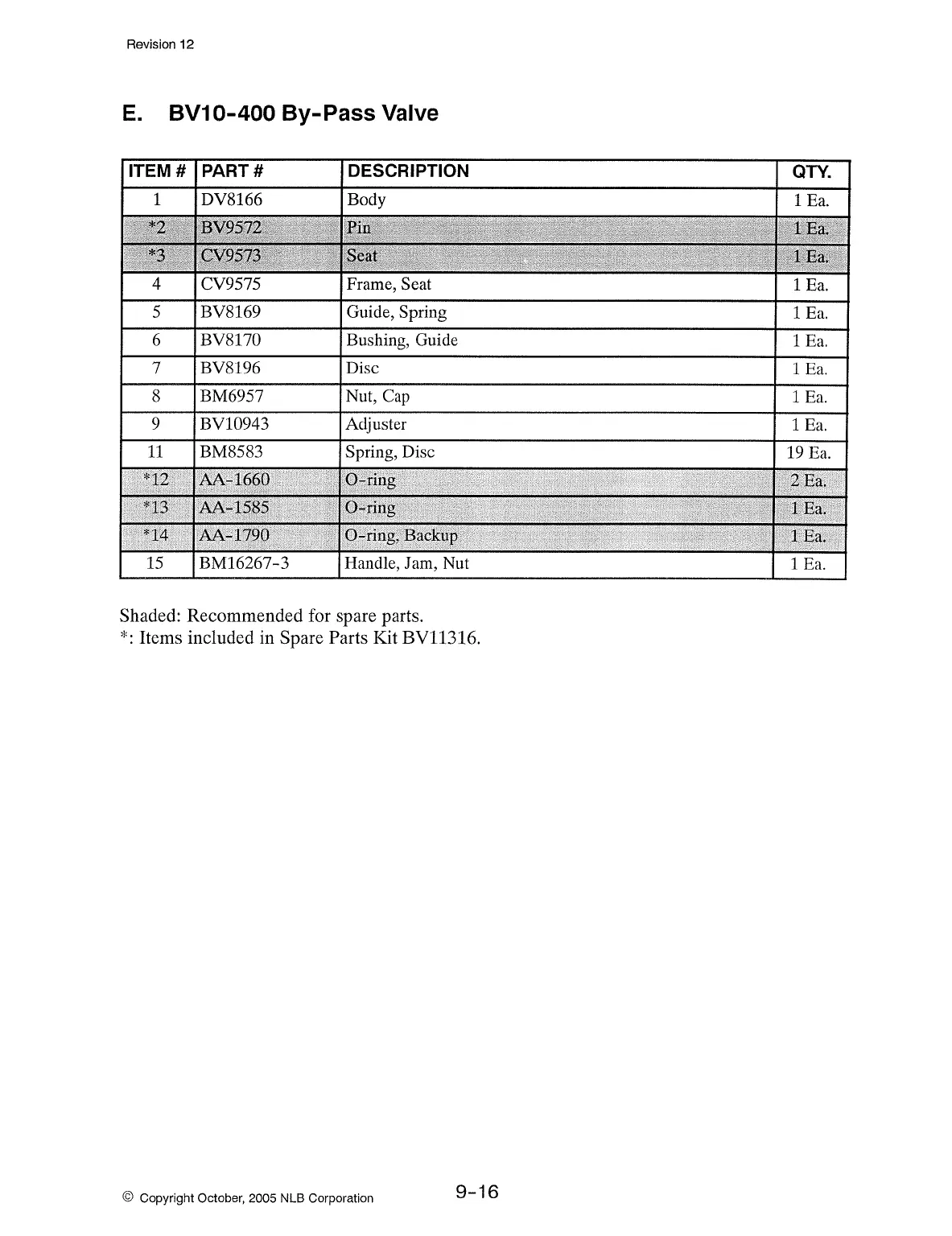

E. BV10-400 By-Pass Valve
ITEM# PART# DESCRIPTION
1 DV8166 Body
4 CV9575 Frame,
Seat
5 BV8169
Guide,
Spring
6 BV8170 Bushing, Guide
7
BV8196 Disc
8 BM6957 Nut, Cap
9
BV10943 Adjuster
11
15
BM16267-3
Handle, Jam, Nut
Shaded: Recommended for spare parts.
*:Items included in
Spare Parts Kit BV11316.
© Copyright October, 2005 NLB Corporation
9-16
QTY.
1 Ea.
1 Ea.
1 Ea.
1 Ea.
1 Ea.
1 Ea.
1 Ea.
19 Ea.
1 Ea.
