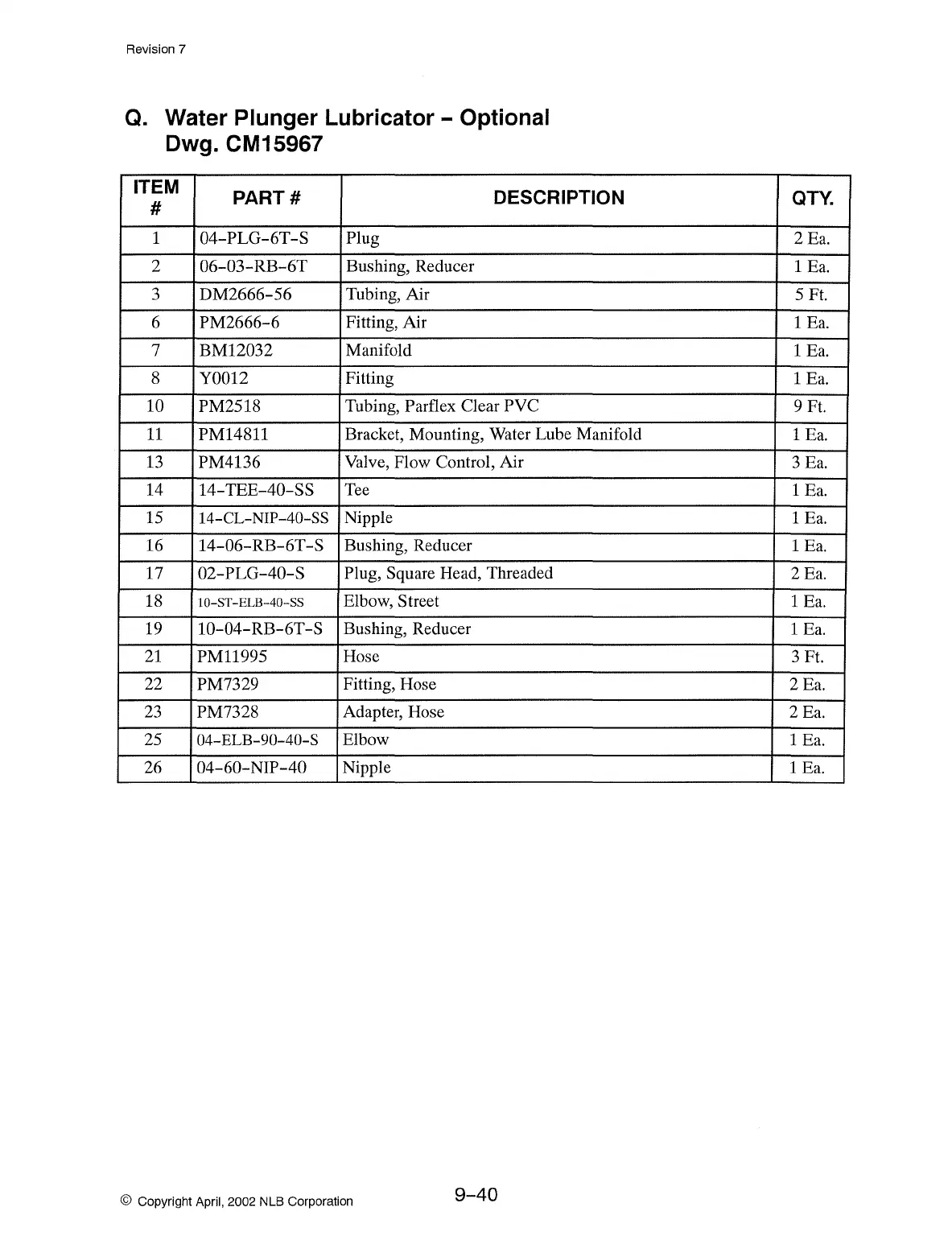

NLB 1012D - Page 228

Revision 7
Q. Water Plunger Lubricator - Optional
Dwg. CM15967
ITEM
PART#
DESCRIPTION
#
1 04-PLG-6T-S Plug
2
06-03-RB-6T Bushing, Reducer
3 DM2666-56 Tubing, Air
6
PM2666-6 Fitting, Air
7
BM12032
Manifold
8
Y0012 Fitting
10 PM2518
Tubing, Parflex Clear PVC
11 PM14811
Bracket, Mounting, Water Lube Manifold
13 PM4136
Valve, Flow Control, Air
14
14- TEE-40-SS Tee
15
14-CL-NIP-40-SS Nipple
16
14-06-RB-6T-S Bushing, Reducer
17
02-PLG-40-S Plug, Square Head, Threaded
18
LO-ST -ELB-40-SS Elbow, Street
19
10-04- RB-6T -S Bushing, Reducer
21
PM11995
Hose
22
PM7329
Fitting, Hose
23
PM7328 Adapter, Hose
25
04-ELB-90-40-S Elbow
26
04-60-NIP-40
Nipple
