BAG FLANGE
WITH SERRATED
SEALING FACE
1
OK FILTER BAG
NLB P/N PM6962
FLAT GASKET
NLB P /N PM9144
PERFORATED FILTER SUPPORT
BASKET,
NLB P /N PM12542

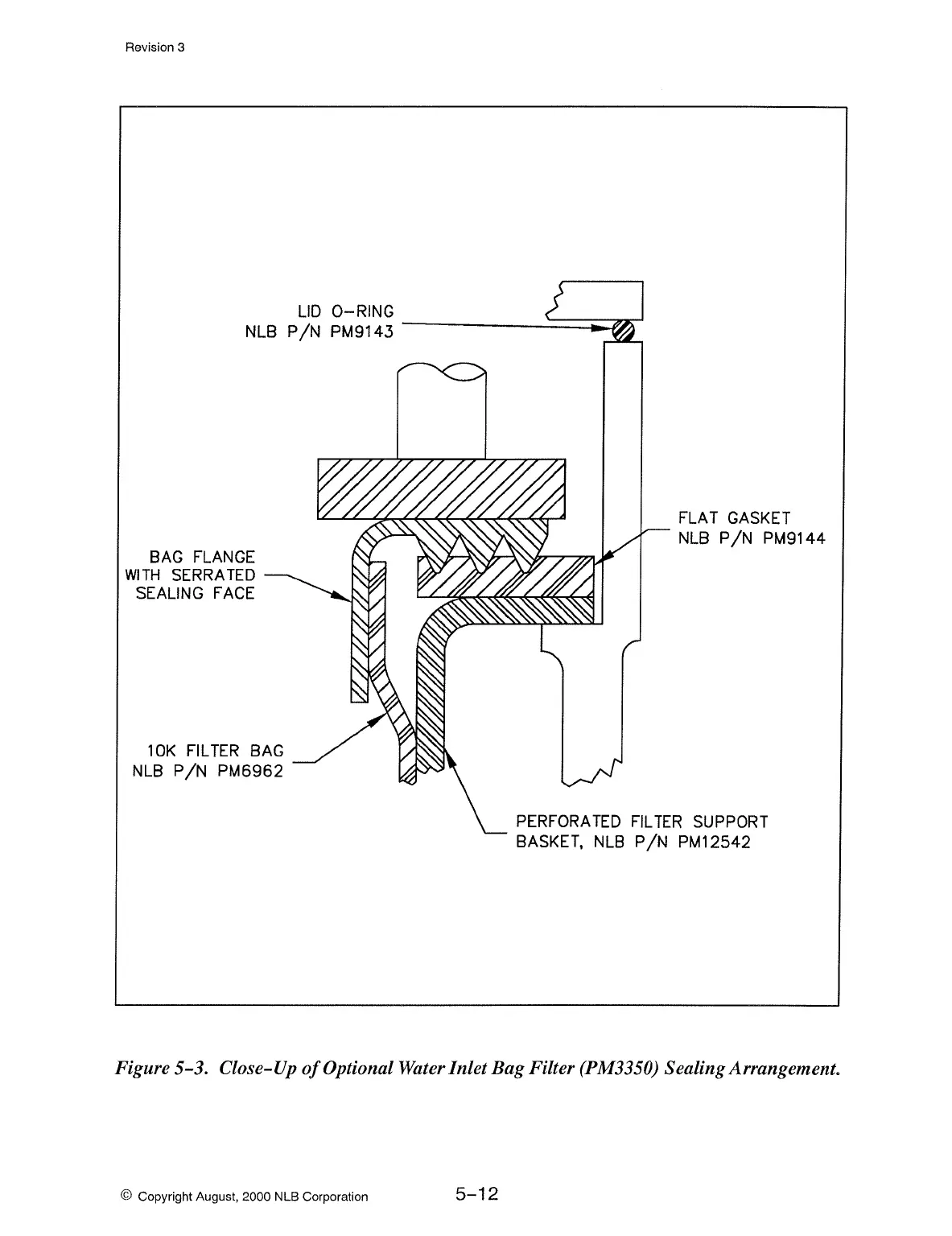

Figure 5-3. Close-Up of Optional Water Inlet Bag Filter (PM3350) Sealing Arrangement.
