7210 SAS-D CHASSIS INSTALLATION GUIDE Installing the Chassis
Issue: 08 3HE 10087 AAAA TQZZA Edition 01 45

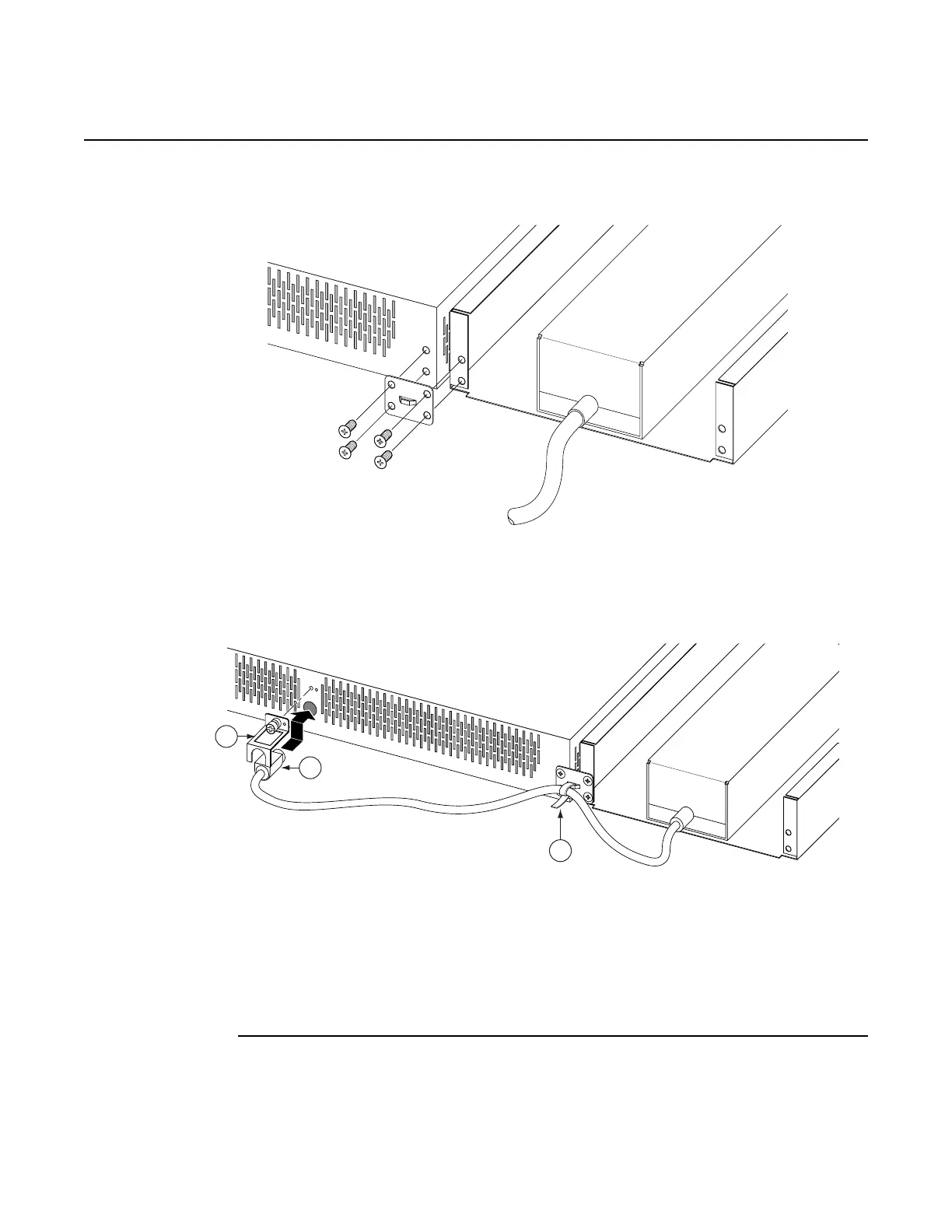

Figure 19 Attaching the External Power Shelf (Rear View)
Step 3. Connect the external power supply power cable to the chassis. See
Figure 20.
Figure 20 Connecting the External Power Supply to the Chassis
Step 4. Use a cable tie to secure the power cable to the lance on the rear mounting
bracket.
Step 5. Secure the power cable connection by inserting the cable connection cover
thumbscrew into the mounting hole above the power cable port and
tightening the thumbscrew.
