Nokia ONT User Manual

Install
a
G
-
2426G
-
B
indoor
ONT
Wall mount an G-2426G-B indoor ONT
Nokia
ONT
3FE-49441-ABAA-TCZZA
June
2021
Issue 1
77

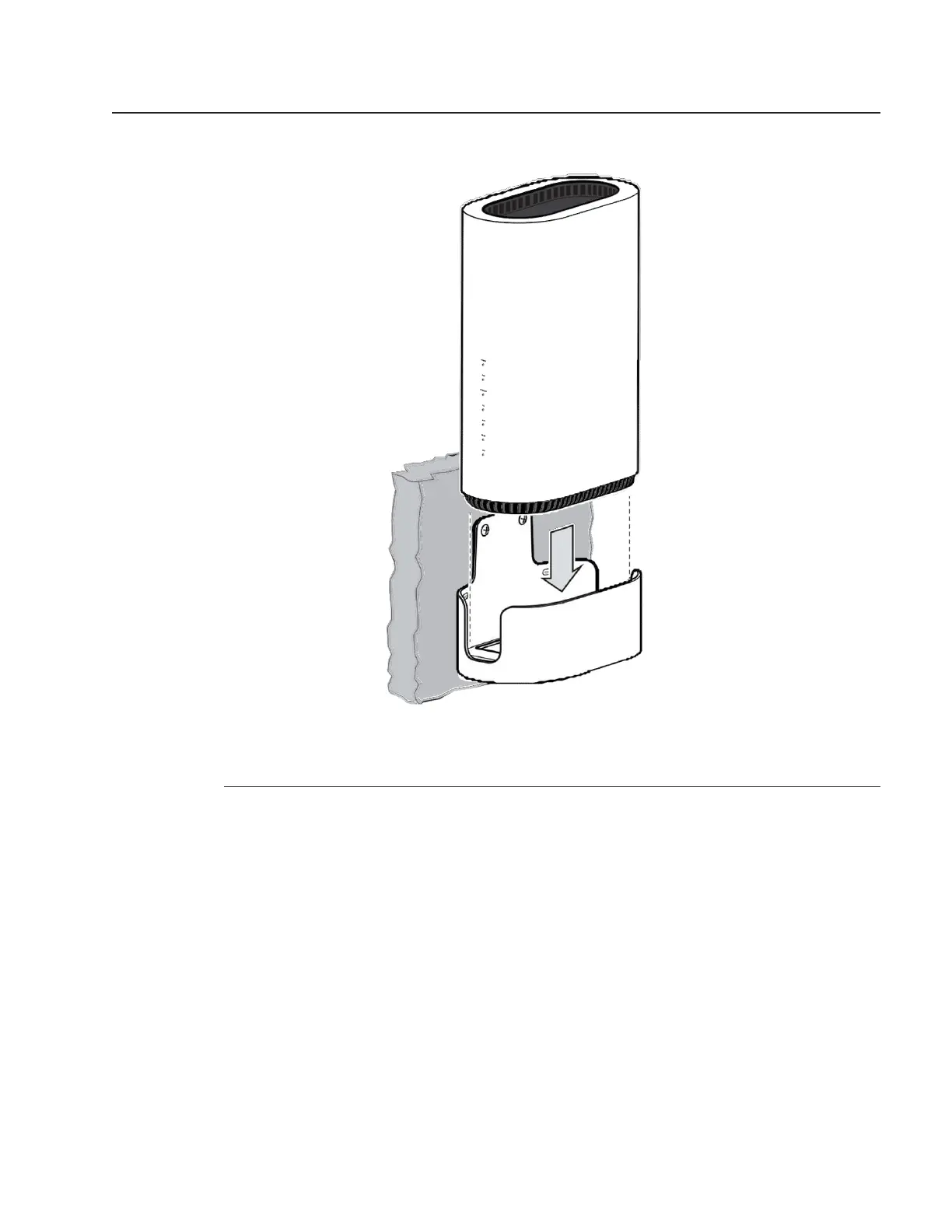

Figure 6-6 ONT in wall mount bracket—facing the room
36748
3
Mount the ONT facing the wall using the wall mount bracket.
a. Determine the location of the two anchor holes for the wall mount bracket. The bracket can
be used as a template for marking and drilling the holes.
It is recommended to use a level to ensure that the ONT unit is installed properly.
b. Drill two holes 35 mm (1.37 in.) depth into the wall and with the centers spaced 157 mm (6.2
in.).
c. Insert the two mounting screws and optional anchors into the holes, leaving a 2 mm (0.078
in.) gap between the screw head and the wall.
d. At this point, perform a test to ensure that the wall mount bracket fits securely over the screw
heads. Mount the bracket flush to the wall so that it does not warp or twist.

Nokia ONT Specifications

General

Category	Network Router
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Type	Optical Network Terminal
Wi-Fi	802.11 b/g/n/ac
Power Supply	12V DC
Humidity	5% to 95% (non-condensing)
Ports	1 x GPON, 4 x Gigabit Ethernet, 2 x POTS
