RF key components

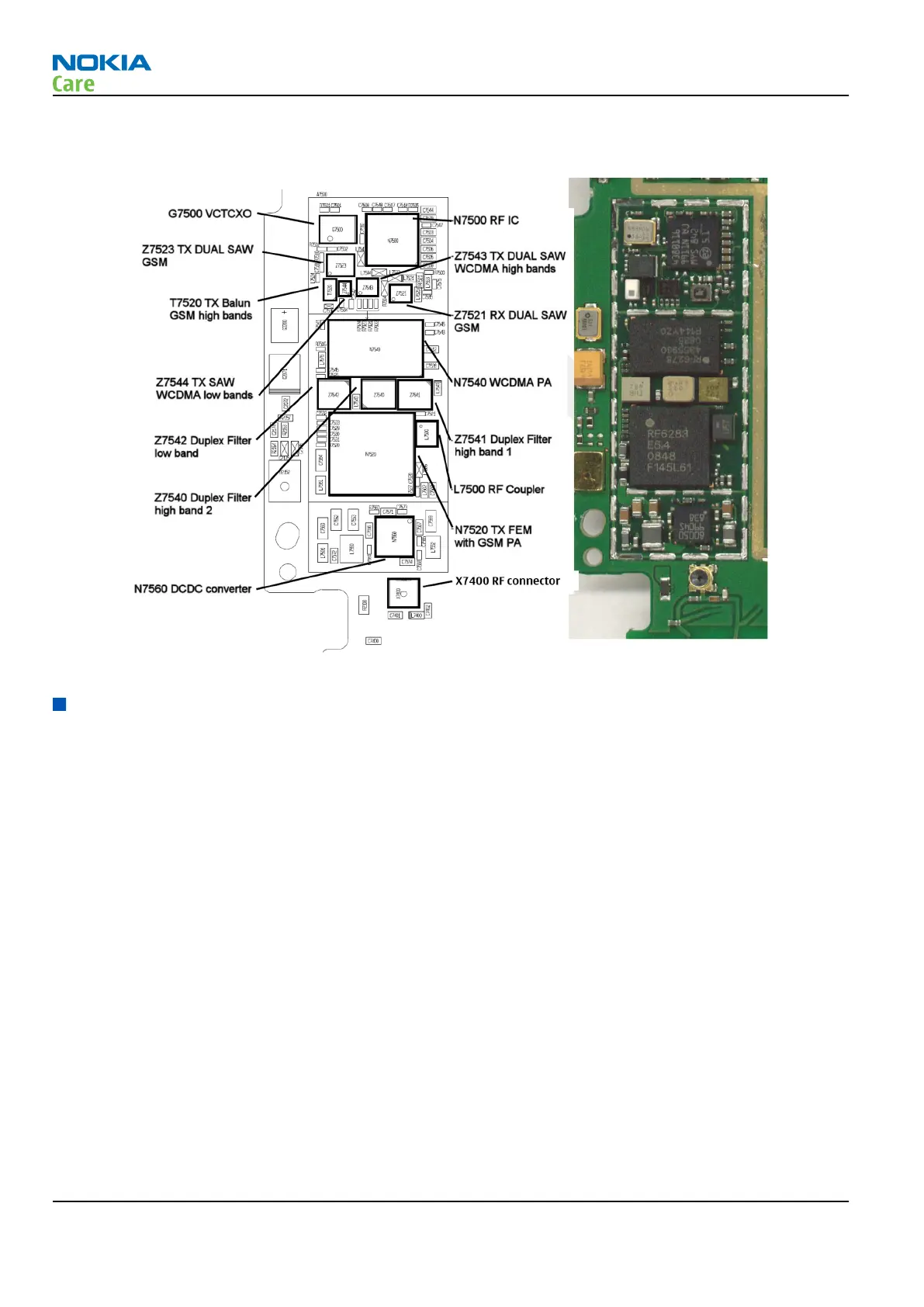

Figure 42 RF key components
Auto tuning
Introduction to RF tunings
RF tuning is always performed with the help of a product-specific module jig, never with an RF coupler. Using
an RF coupler in the tuning phase will cause a complete mistuning of the RF part.
Cable and adapter losses
RF cables and adapters have some losses. They have to be taken into account when the phone is tuned. As
all RF losses are frequency dependent, the user has to act very carefully and understand the measurement
setup. For RF attenuations of the module jig and RF cable, please refer to the Service Tools section.
Auto tuning
This phone can be tuned automatically.
Auto tuning is designed to align the phone's RF part easier and faster. It performs calibrations, tunings and
measurements of RX and TX. The results are displayed and logged in a result file, if initiated.
Hardware set up
For hardware requirements for auto tuning, please refer to Service concept for RF testing and RF/BB tuning
(page 4–21).
Phoenix preparations
Install the phone specific data package, for example
_dp_1.78_sw_sh3.26.exe
. This defines phone specific
settings.
RM-505; RM-506
RF Troubleshooting
