Name of connection Component reference
Microphone B2152
IHF speakers B2153, B400 on Audio FPC
Main camera X9001
Sub-camera N502 on Tilt FPC
Main display connector X501 on Tilt FPC
Vibra M2200
Back-up battery interface electrical characteristics
Table 17 Back-up battery electrical characteristics
Description Parameter Min Typ Max Unit
Back-Up
Battery
Voltage
Vback 0 2.5 2.7 V
RF technical description
RF block diagram

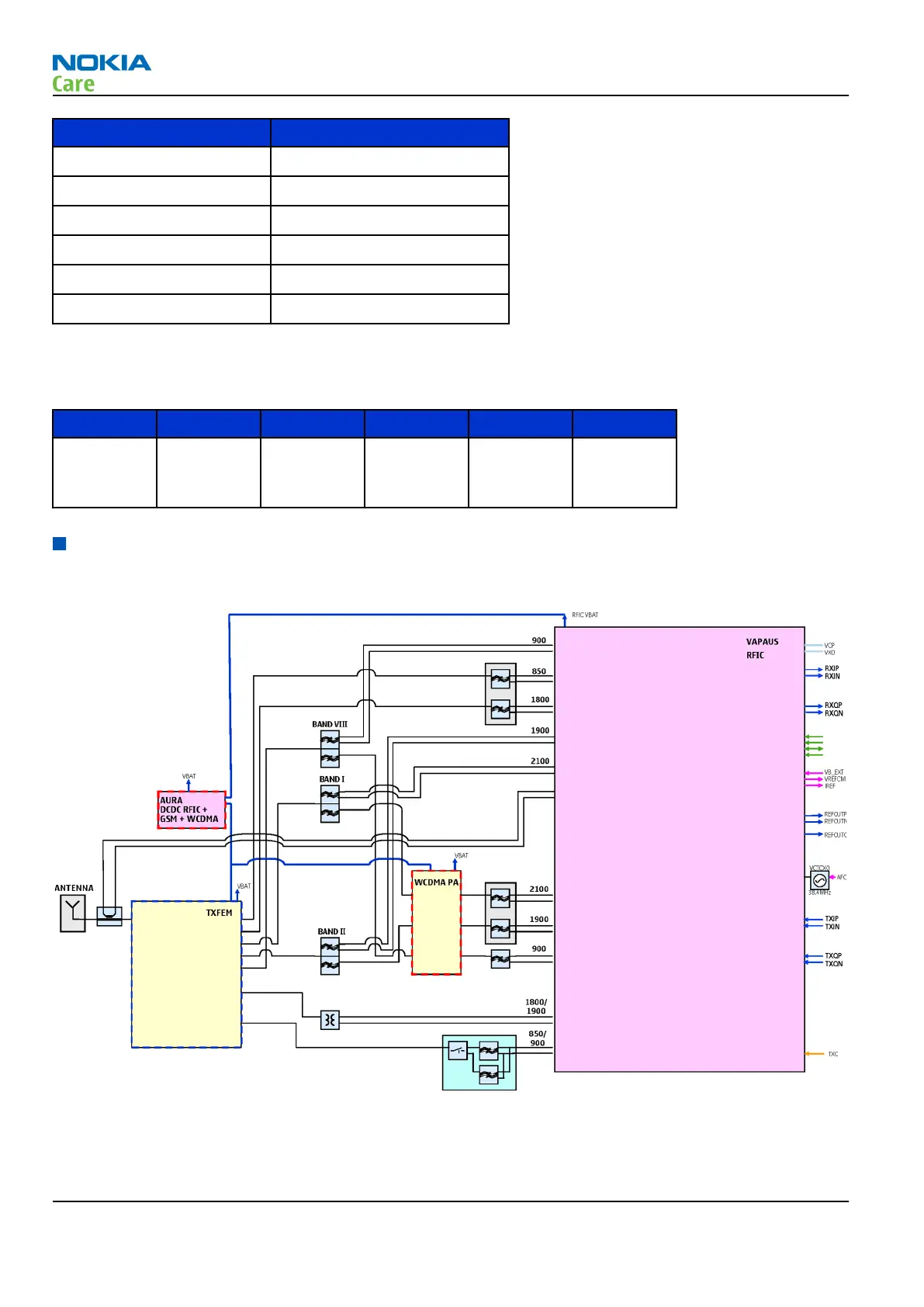

Figure 90 RF block diagram using RF ASIC N7500 (with WCDMA VII/II/I)
RM-505; RM-506
System Module and User Interface
Page 8 –38 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
