Digital Ambient Light Sensor (ALS)
The Digital Ambient Light Sensor (N503 on Tilt FPC) approximates ambient light. Ambient light level together
with CABC and user settings adjust the display and keyboard illumination brightness. The Ambient Light
Sensor is located on the upper flex.

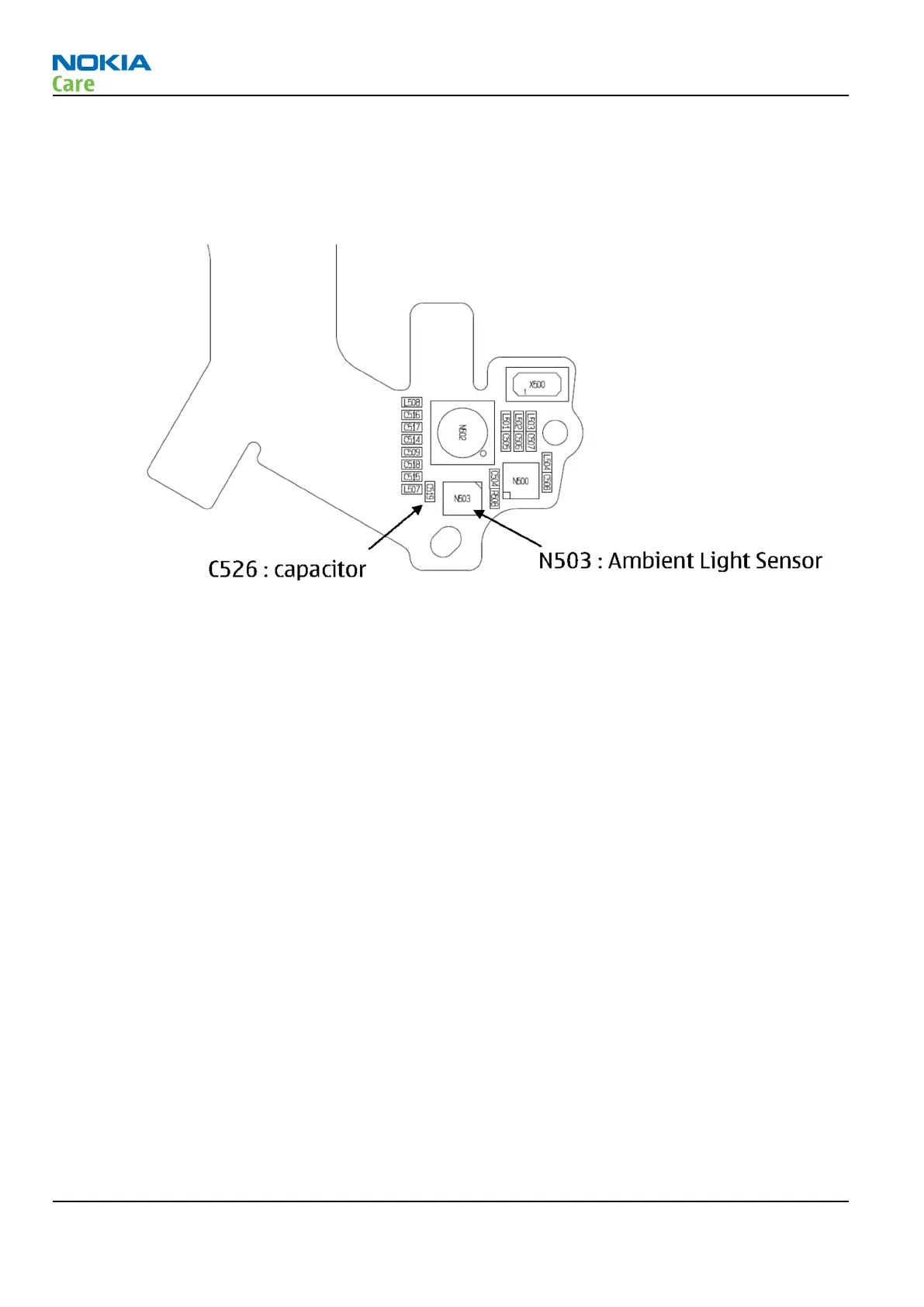

Figure 79 Digital Ambient Light Sensor location
It is connected to the I2C bus, and powered by the VOUT (2.5V) voltage.
RM-505; RM-506
System Module and User Interface
Page 8 –30 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
