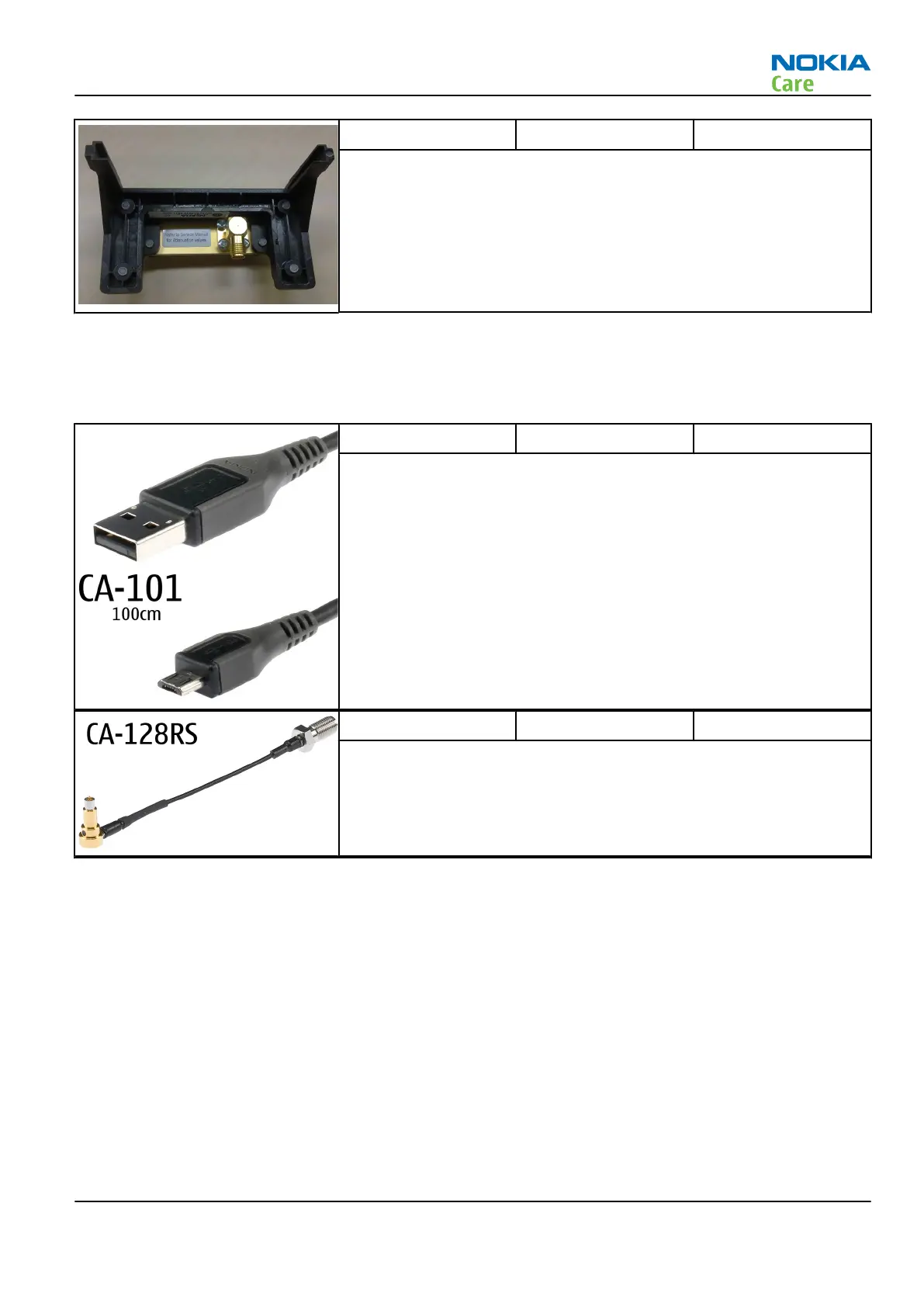

SA-181 RF coupler
SA-181 is an RF coupler for WCDMA and GSM RF testing. It is used
together with the product-specific flash adapter.
Cables
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-505; RM-506. For the correct use of the service devices, and the best effort of workbench
setup, please refer to various concepts.
CA-101 Micro USB cable
The CA-101 is a USB-to-microUSB data cable that allows connections
between the PC and the phone.
CA-128RS RF tuning cable
Product-specific adapter cable for RF tuning.
RM-505; RM-506
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –7
Copyright © 2009 Nokia. All rights reserved.
