Nokia RM-506 - Oscillator Test

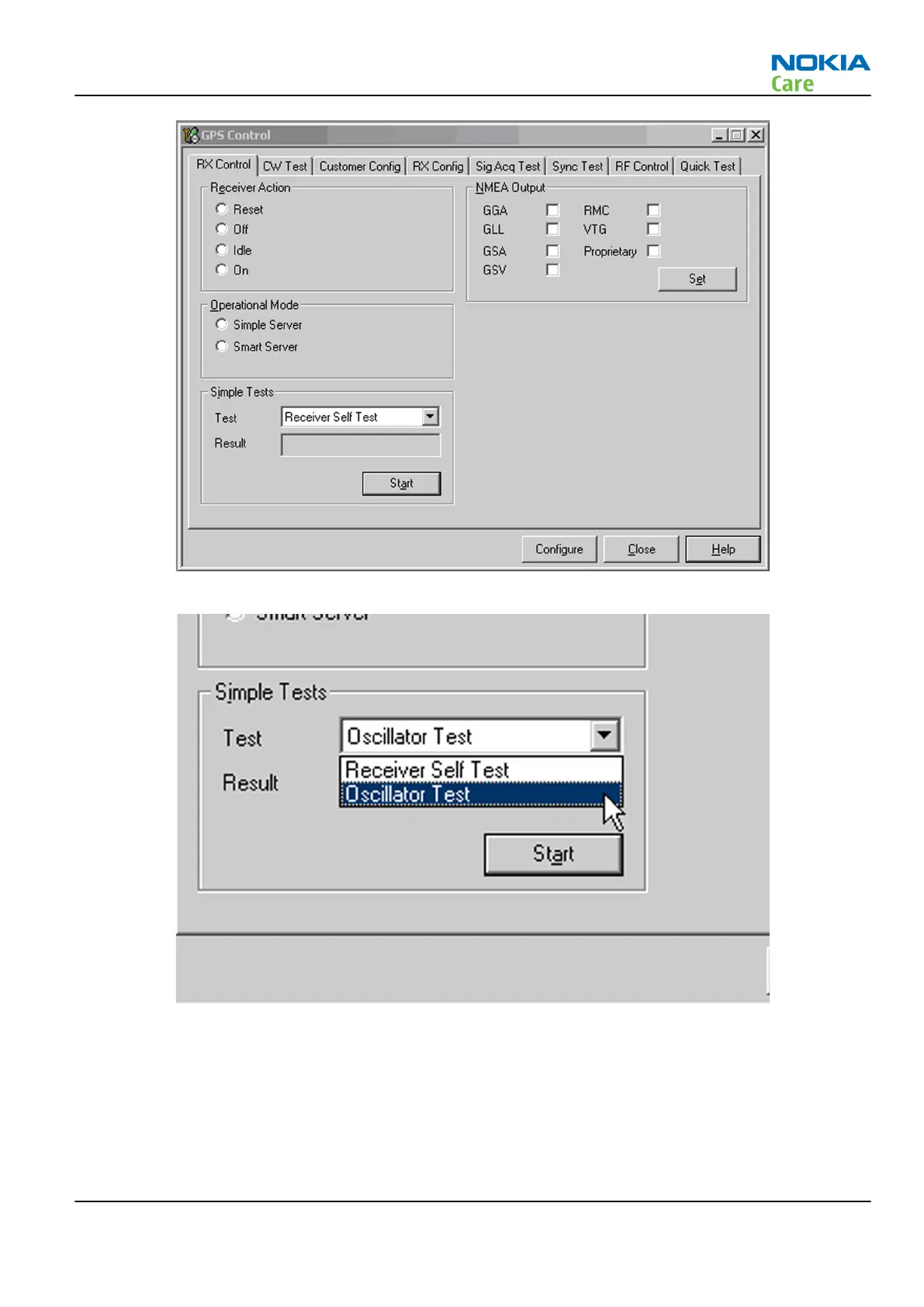

Figure 27 GPS Control dialog box
Figure 28 Simple Tests – Oscillator Test & Receiver Self Test
Oscillator test
Context
The 16.368 MHz GPS Clk is compared against the CE Ref Clk and the output is the GPS Clk offset.
RM-505; RM-506
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 –45
