GSM transmitter troubleshooting
Steps
1. Set the phone to local mode.
2. Activate RF controls in Phoenix (TestingGSMRf Controls ).
Make settings as shown in the figure:

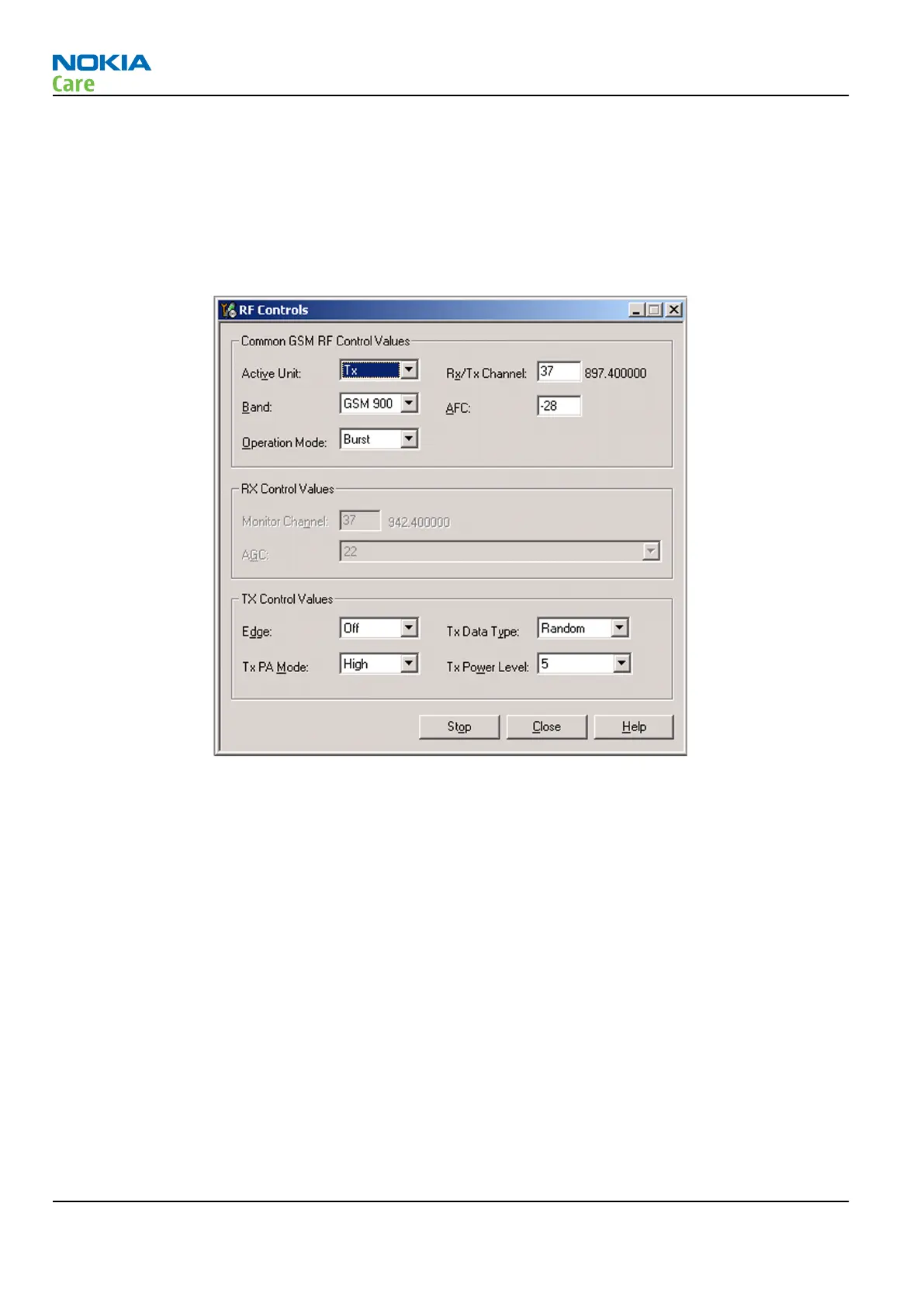

Figure 47 Phoenix GSM RF controls window
3. Check the basic TX parameters (i.e. power, phase error, modulation and switching spectrum), using a
communication analyser (for example CMU200).
RM-505; RM-506
RF Troubleshooting
Page 4 –26 COMPANY CONFIDENTIAL Issue 1
