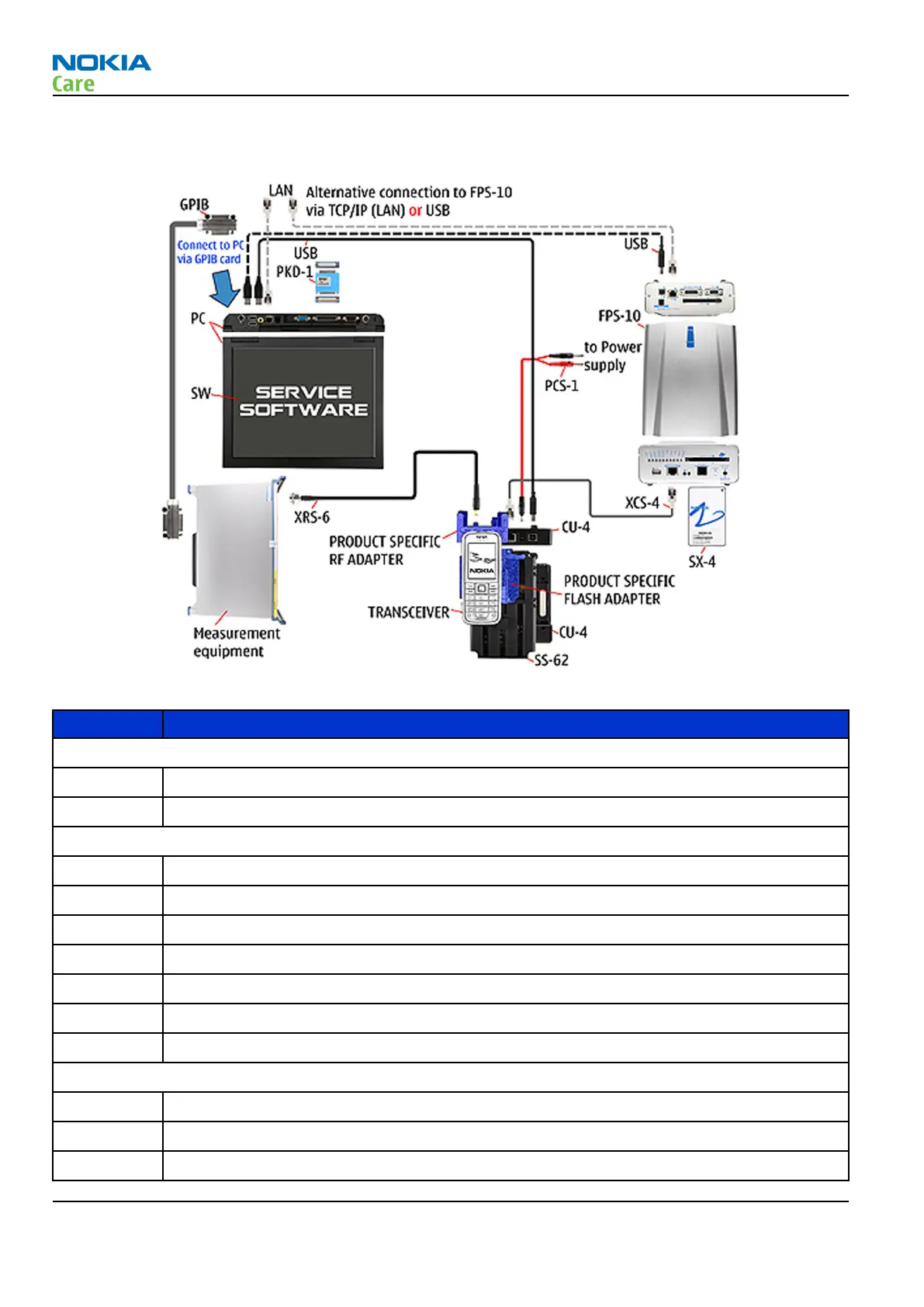

RF testing concept with RF coupler
Figure 12 RF testing concept with RF coupler
Type Description
Product specific devices
FS-102 Flash adapter
SA-181 RF coupler
Other devices
CU-4 Control unit
SX-4 Smart card
FPS-21 Flash prommer box
PKD-1/PK-1 SW security device
SS-62 Flash adapter base
Measurement equipment
PC with Phoenix service software
Cables
PCS-1 Power cable
XCS-4 Modular cable
XRS-6 RF cable
RM-505; RM-506
Service Tools and Service Concepts
Page 2 –20 COMPANY CONFIDENTIAL Issue 1
