Nokia RM-506 User Manual

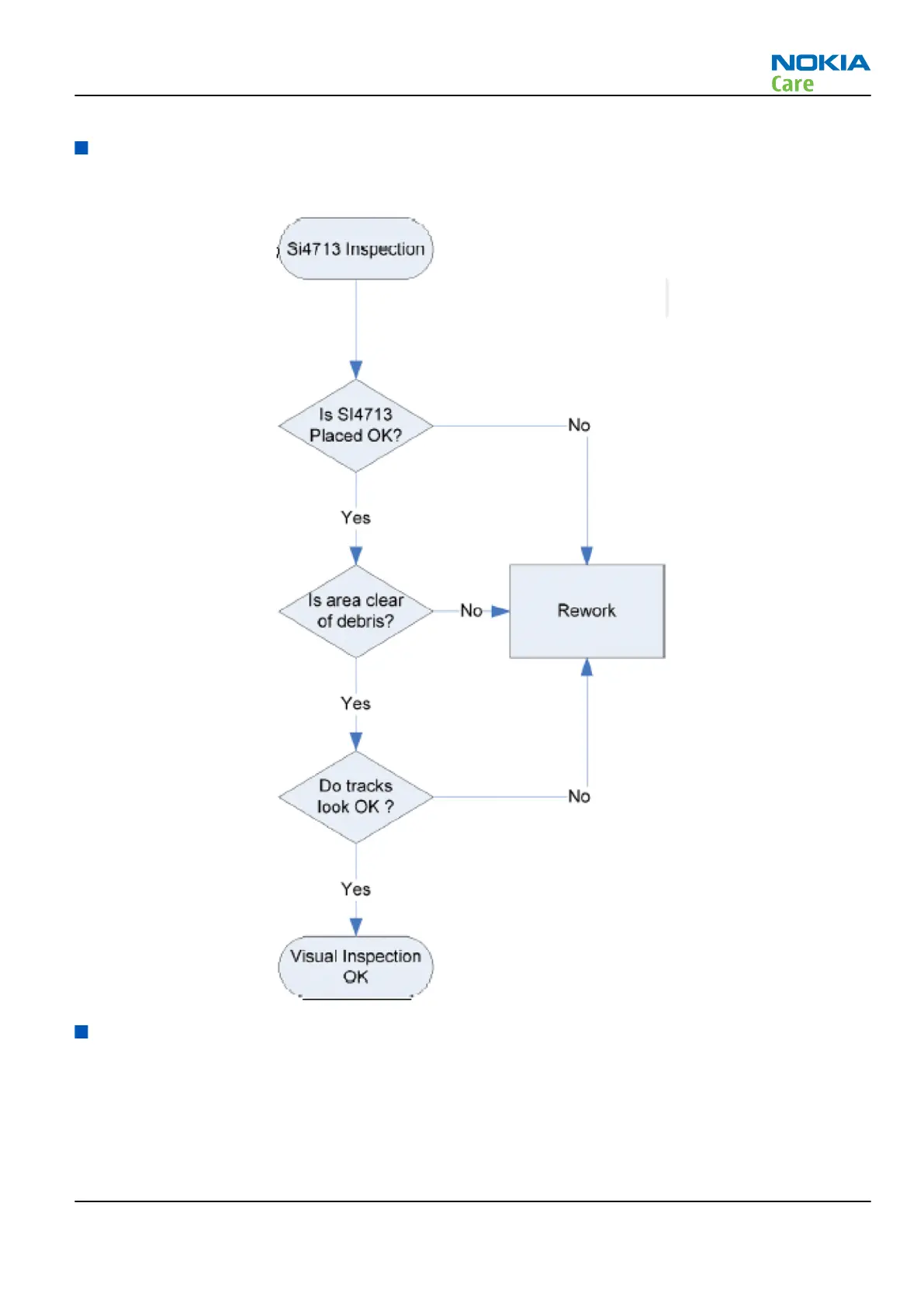

FMTx2.1 Si4713 visual inspection troubleshooting
Troubleshooting flow
Checking validity of signals
Please refer to Access to signals figure as a reference. Generally all power supply levels and clocks willbe
consistent. Signals on the analogue audio input pins (RIN & LIN – pins 15 and 16 respectively) will be
dependant on the audio content being injected to the device. During the audio self test (initiated from
Phoenix) it is possible to monitor these pins and check that the DSP generated 1KHz tones can be seen at
some point during the test. Check that the signals are clean and that no obvious distortion can be seen such
RM-505; RM-506
FMTx 2.1 Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 7 –11
Copyright © 2009 Nokia. All rights reserved.
