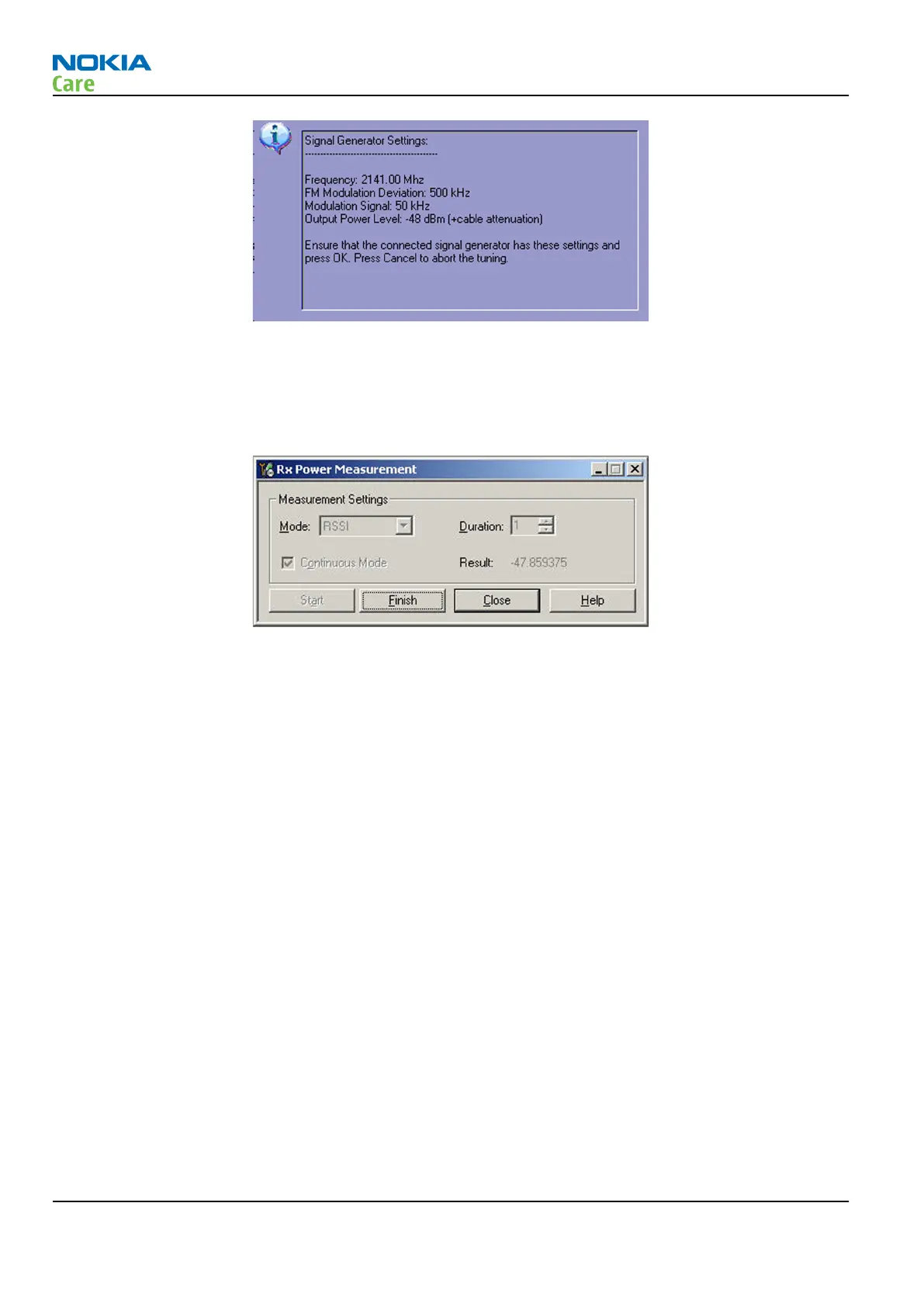

Figure 45 WCDMA RX generator settings
Note: Frequency for band WCDMA II 1961.0MHz, V 882.6MHz, VIII 943.4MHz
2. From the Phoenix testing menu, select WCDMARX Power measurement
3. In the RX power measurement window, make the following settings:
Figure 46 Phoenix WCDMA RX power measurement window
4. Click Start to perform the measurement.
Note: WCDMA RSSI measurement is accurate only with WCDMA modulated signal.
RM-505; RM-506
RF Troubleshooting
Page 4 –24 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
