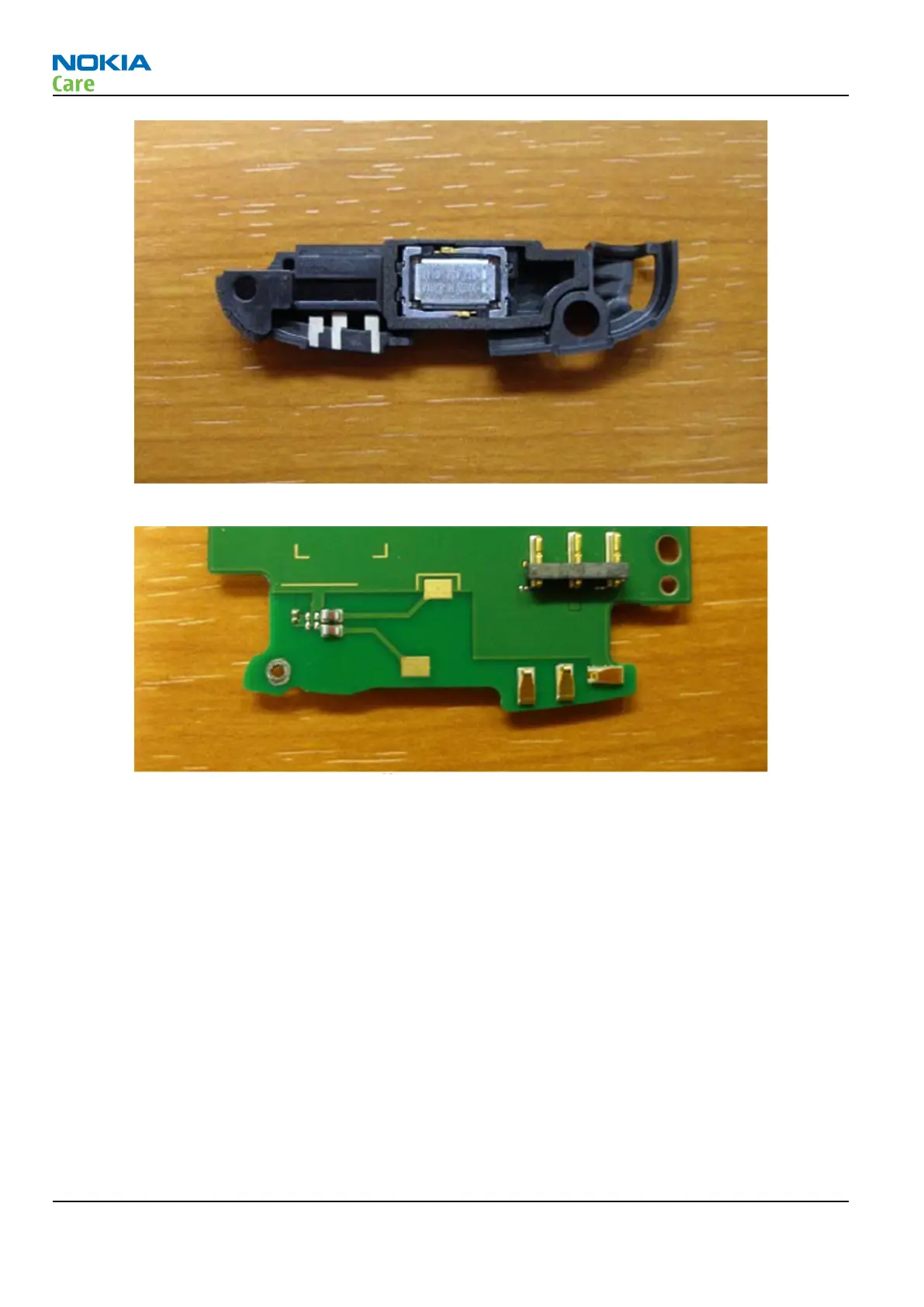

Figure 48 Antenna contacts
Figure 49 Antenna contact clips on PWB
Antenna matching components, visual check
There are four matching components on the PWB. Check visually that all components are properly soldered
on the PWB. In case there is damage, you need to replace the damaged one.
RM-505; RM-506
RF Troubleshooting
Page 4 –30 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
