Nokia RM-506 User Manual

Using the FMTx panel to drive the FMTx 2.1 features

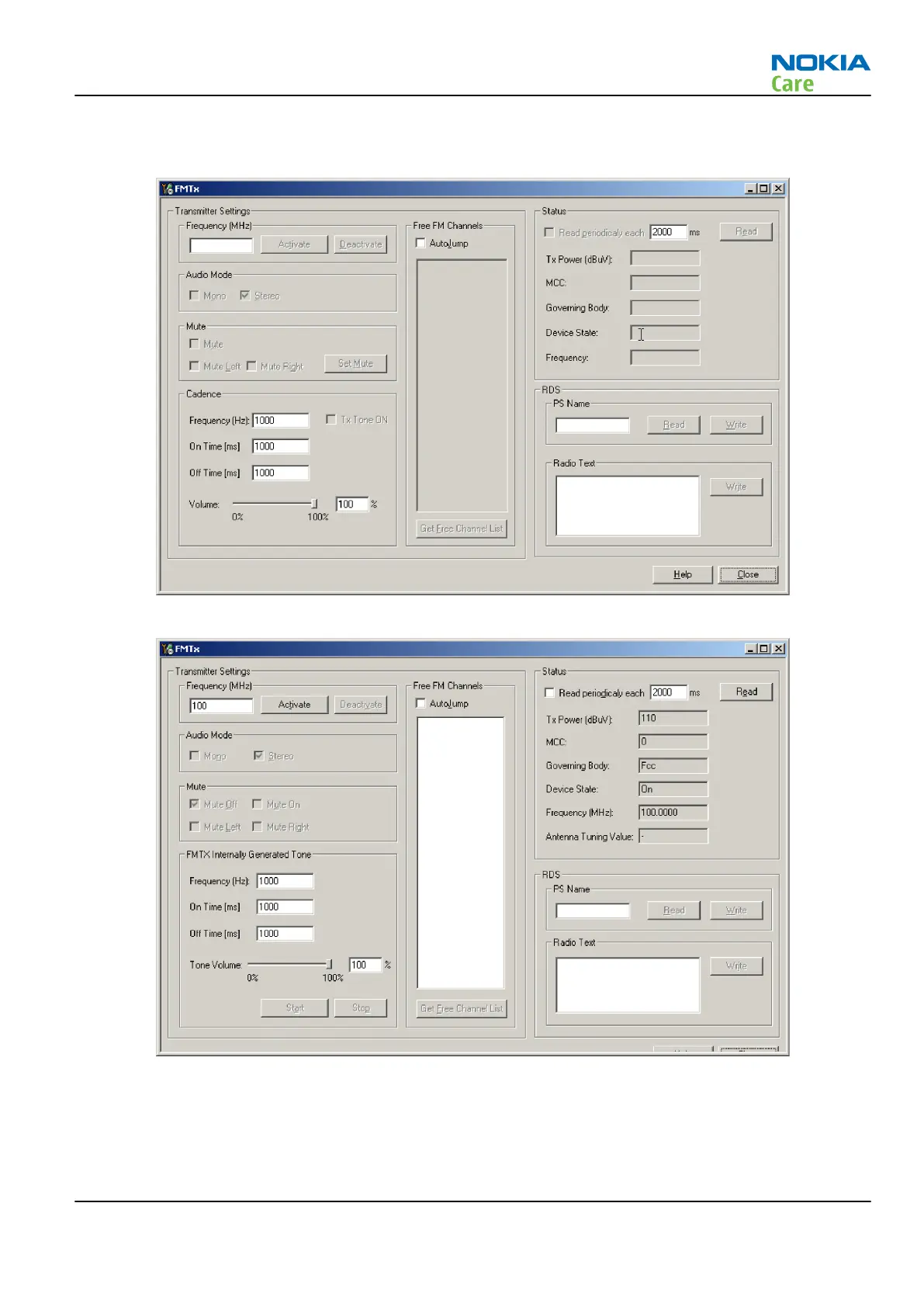

Figure 55 FMTx panel before connection to the handset
Figure 56 FMTx panel after connection to the handset
Typing in a valid FM transmitter frequency and clicking on ‘Activate’ will turn on the FMTx feature and will
begin transmitting the carrier on the selected frequency. Note: Unless this carrier signal is modulated with
some audio (either via the music player or a DSP or Si4713 generated tone) then all that will be heard if an
RM-505; RM-506
FMTx 2.1 Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 7 –13
Copyright © 2009 Nokia. All rights reserved.
