9.3 Mounting

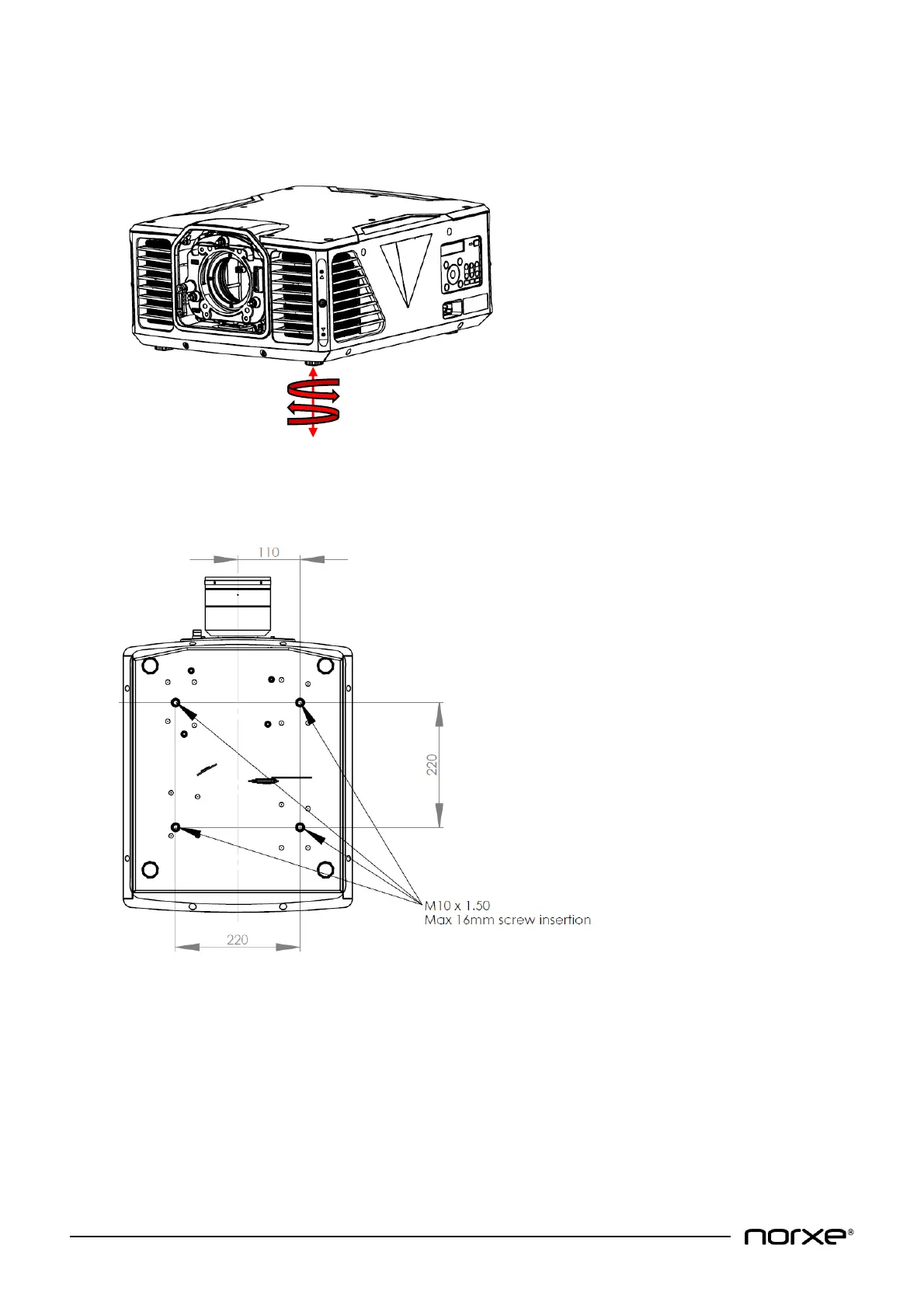

4 x adjustable feet are provided on the underside of the projector. These can be used to level the unit when
installing on a flat surface or similar.
When not installing on a flat level surface ensure that the projector is properly fastened and secured to an
approved mount using the designated 4 x M10 x 1.50 mm threaded inserts on the underside of projector.
NOTE! Additional threaded inserts (4 x M10 x 1.50 mm) can be accessed by removing the projector feet.
These inserts are also suitable for securing the projector to an approved mount or similar.
