MX2000 LED Display Controller User Manual
− 12bit@60Hz: 1,475,600 pixels
Note
When using a 5G Ethernet port to drive the LED screen, it can achieve its
maximum load capacity only when the load width is 192 pixels or more. If the
load width is less than that, the load capacity will be reduced accordingly,
calculated as (192 - load width) × load height.
Maximum load of a single output card: 17,694,720 pixels (8/10/12bit@60Hz).

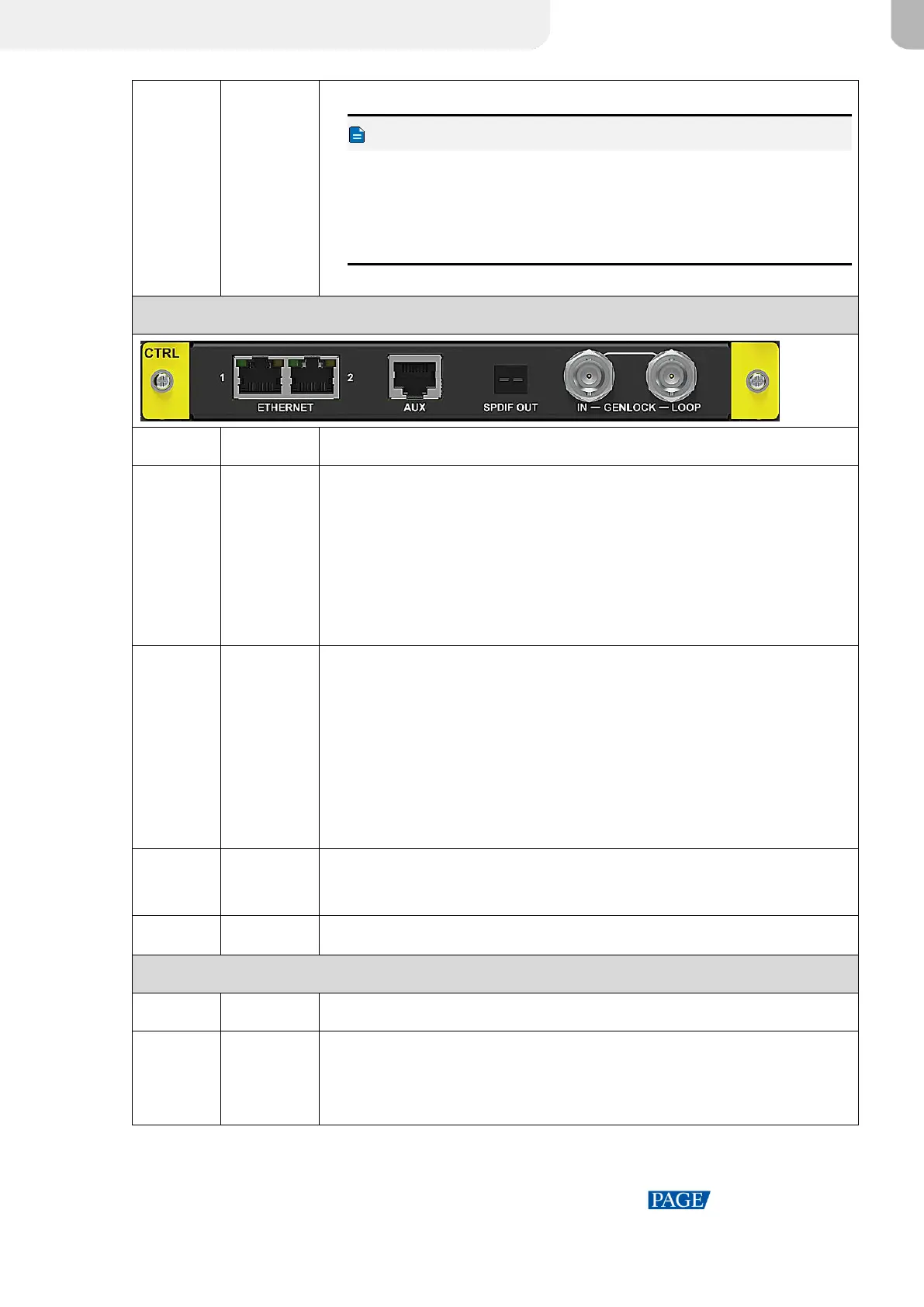

Gigabit Ethernet control ports. Support TCP/IP and star connection.
They have the same functions without priority and order, and can be
connected to VMP software. No switch or router is needed to deploy
multiple devices on the same LAN via device cascading as the network
switching function is already built in. Up to 20 units of MX2000 Pro can
be cascaded.
A pair of Genlock signal connectors. Support Bi-Level, Tri-Level, and
Blackburst.
IN: Accept the sync signal.
LOOP: Loop the sync signal.
The Genlock input signal supports a frame rate range from 23.98 Hz to
60 Hz. For standard Genlock signal generators, up to 20 units of MX2000
Pro can be cascaded.
An auxiliary connector that connects to the central control device
(RS232) (Reserved)
A digital audio output (Reserved)
