MX2000 LED Display Controller User Manual
www.novastar.tech
11

Return loss: ≥45 dB

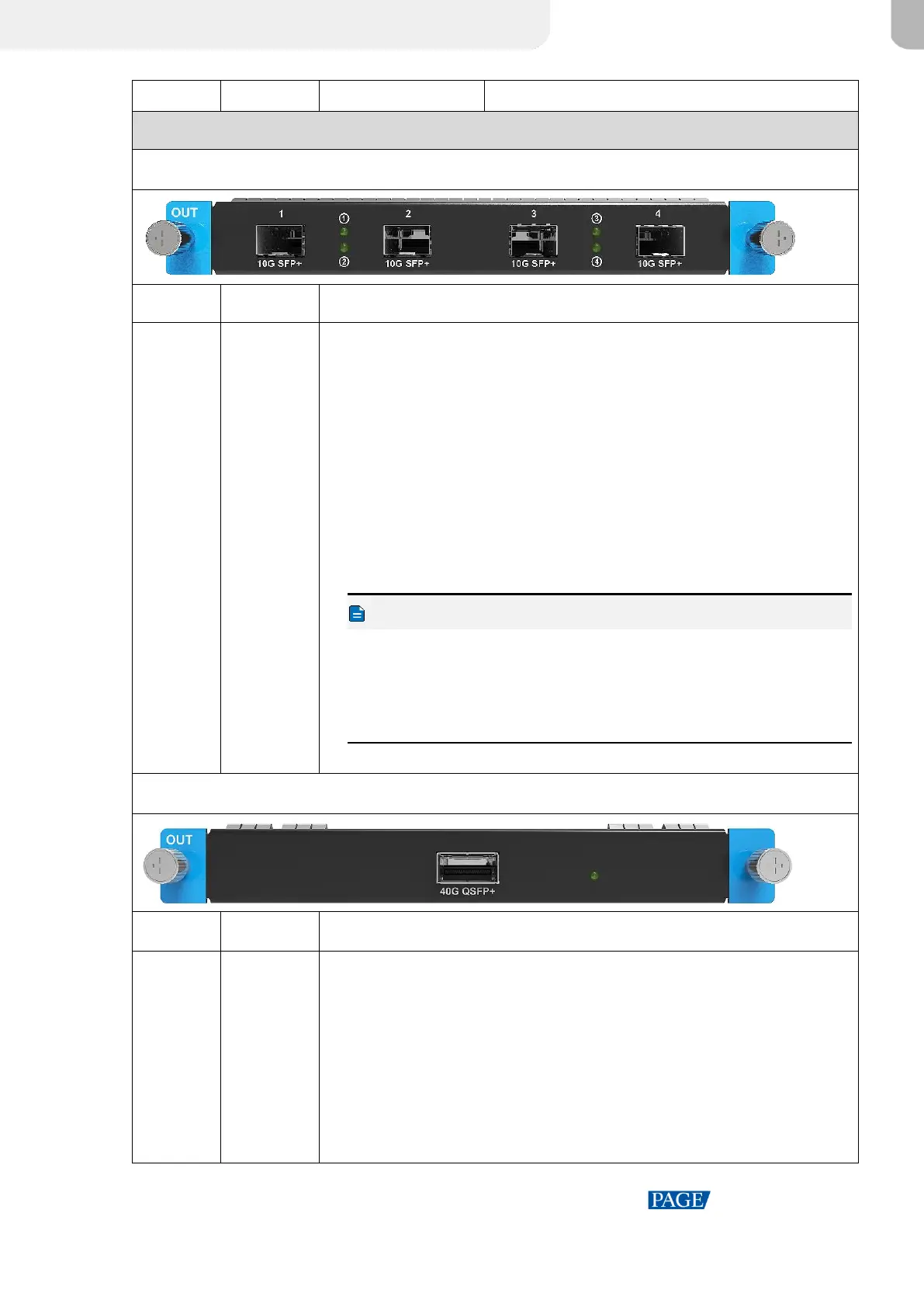

Output Card
MX_4×10G_Fiber output card
Type
Qty
Description
10G SFP+
4
10G optical ports

Support single-mode and multi-mode optical fiber modules, with a maximum
transmission distance of 10 km.

A single optical port has the same load capacity of 10x 1G Ethernet ports, and a
single card supports up to 40x Ethernet port outputs.

The maximum load of a single 1G Ethernet port is as follows, please refer to
Ethernet Port Load Capacity for more details:
− 8bit@60Hz: 659,722 pixels
− 10bit@60Hz: 494,791 pixels (available only with the A10s Pro receiving
card)
− 12bit@60Hz: 329,861 pixels
Note
When using a 1G Ethernet port to drive the LED screen, it can achieve its
maximum load capacity only when the load width is 192 pixels or more. If the
load width is less than that, the load capacity will be reduced accordingly,
calculated as (192 - load width) × load height.

Maximum load of a single output card: 17,694,720 pixels (8/10/12bit@60Hz).
MX_1x40G_Fiber output card
Type
Qty
Description
40G
QSFP+
1
40G optical port

Support single-mode and multi-mode optical fiber modules, with a maximum
transmission distance of 10km.

A single optical port has the same load capacity of 8x 5G Ethernet ports.

The maximum load of a single 5G Ethernet port is as follows, please refer to
Ethernet Port Load Capacity for more details:
− 8bit@60Hz: 2,951,200 pixels
− 10bit@60Hz: 2,213,200 pixels
