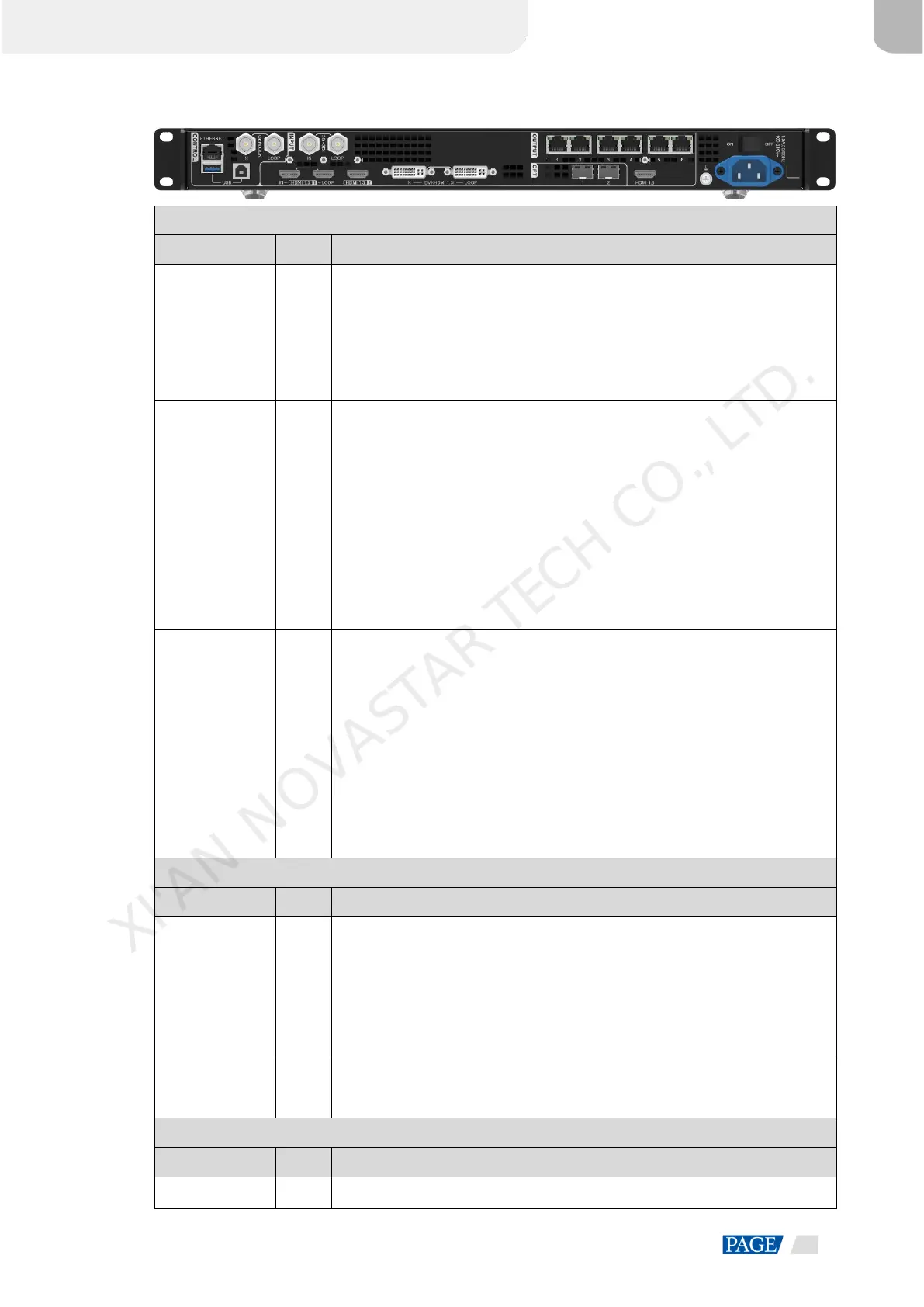

Rear Panel
Input Connectors
Connector
Qty
Description
3G-SDI
1

ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported

Max. input resolution: 1920×1080@60Hz

Deinterlacing processing supported

3G-SDI loop output supported

DOES NOT support input resolution and bit depth settings.
HDMI 1.3
2

Max. input resolution: 1920×1200@60Hz

HDCP 1.4 compliant

Interlaced signal inputs supported

Custom resolutions supported
− Max. width: 3840 (3840×648@60Hz)
− Max. height: 2784 (800×2784@60Hz)
− Forced inputs supported: 600×3840@60Hz

Loop output supported on HDMI 1.3-1
DVI
1

Max. input resolution: 1920×1200@60Hz

HDCP 1.4 compliant

Interlaced signal inputs supported

Custom resolutions supported
− Max. width: 3840 (3840×648@60Hz)
− Max. height: 2784 (800×2784@60Hz)
− Forced inputs supported: 600×3840@60Hz

Loop output supported on DVI 1
Output Connectors
Connector
Qty
Description
Ethernet ports
6
Gigabit Ethernet ports

Max. loading capacity: 3.9 million pixels

Max. width: 10,240 pixels

Max. height: 8192 pixels
Ethernet ports 1 and 2 support audio output. When you use a multifunction card
to parse the audio, be sure to connect the card to Ethernet port 1 or 2.
HDMI 1.3
1


Support monitor and video output modes.
The output resolution is adjustable.
Optical Fiber Ports
Connector
Qty
Description
OPT
2

OPT 1: Self-adaptive, either for video input or for output
