6

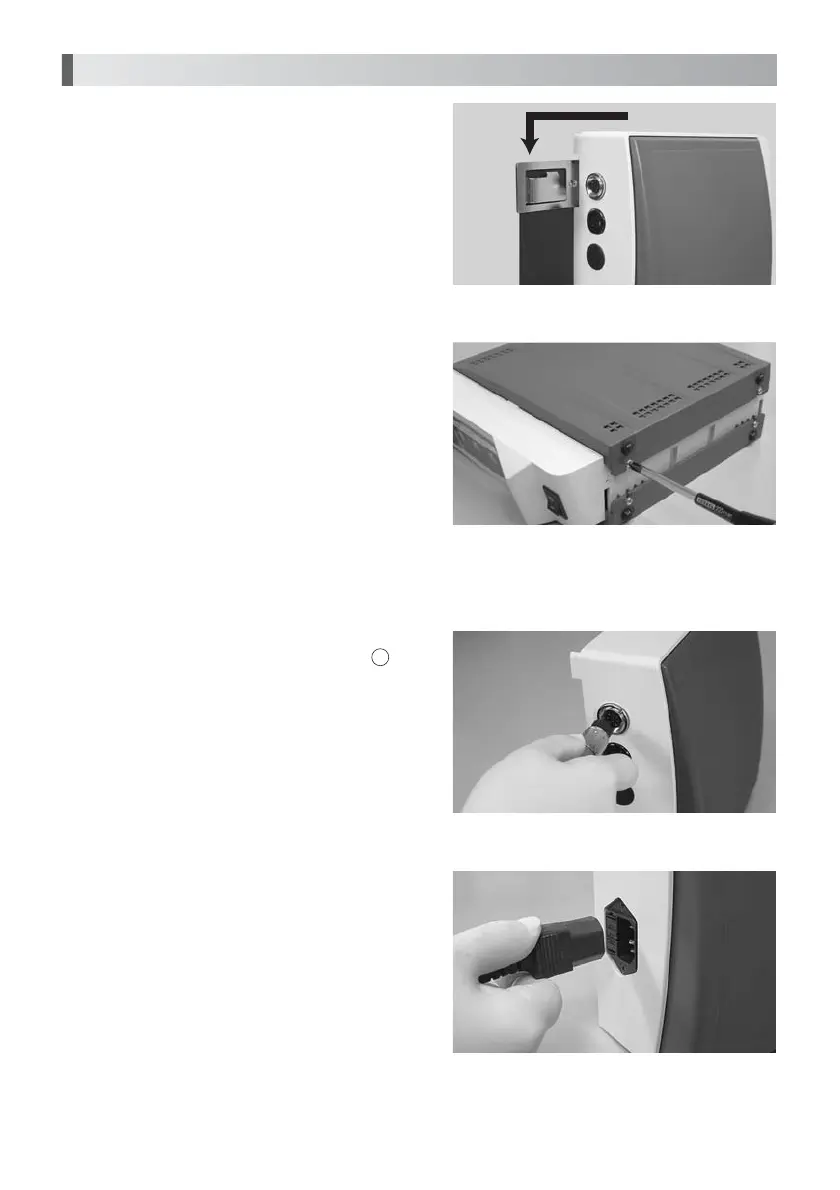

1. Mounting of the Unit
(1) ULTIMATE XL-K
Bore a hole while aligning the attached
template with the inside of the right side of
the technical desk. Then, mount a bracket
with the attached screw and nut, and mount
the unit by inserting the bracket lug into the
opening at the back of the unit. (Fig. 1)
(2) ULTIMATE XL-D (Option)
ULTIMATE XL-D is used by standing it on a
work bench, but it can be used by mounting
it by use of the optional bracket if there is a
wall at right side of the technical desk. If the
unit is to be mounted on the bracket, remove
the two cover-mounting screws. (Fig. 2)
2. Set up of Control Unit
Fig.1
Fig.2
2. Mounting of the Motor
Insert the motor cord plug locator into Motor
Connector aligning it with the groove of the
connector, and tighten the motor cord plug nut
to fix. (Fig. 3)
Fig.3
3. Connecting of the Power Cord
Securely insert the plug of Power Cord into
connector at the back of the unit aligning it with
the configuration. (Fig. 4)
Fig.4
