4. Mounting of the Foot Pedal (ULTIMATE XL-D)
Insert the foot pedal plug into the Foot Pedal Connector at the back of the unit.

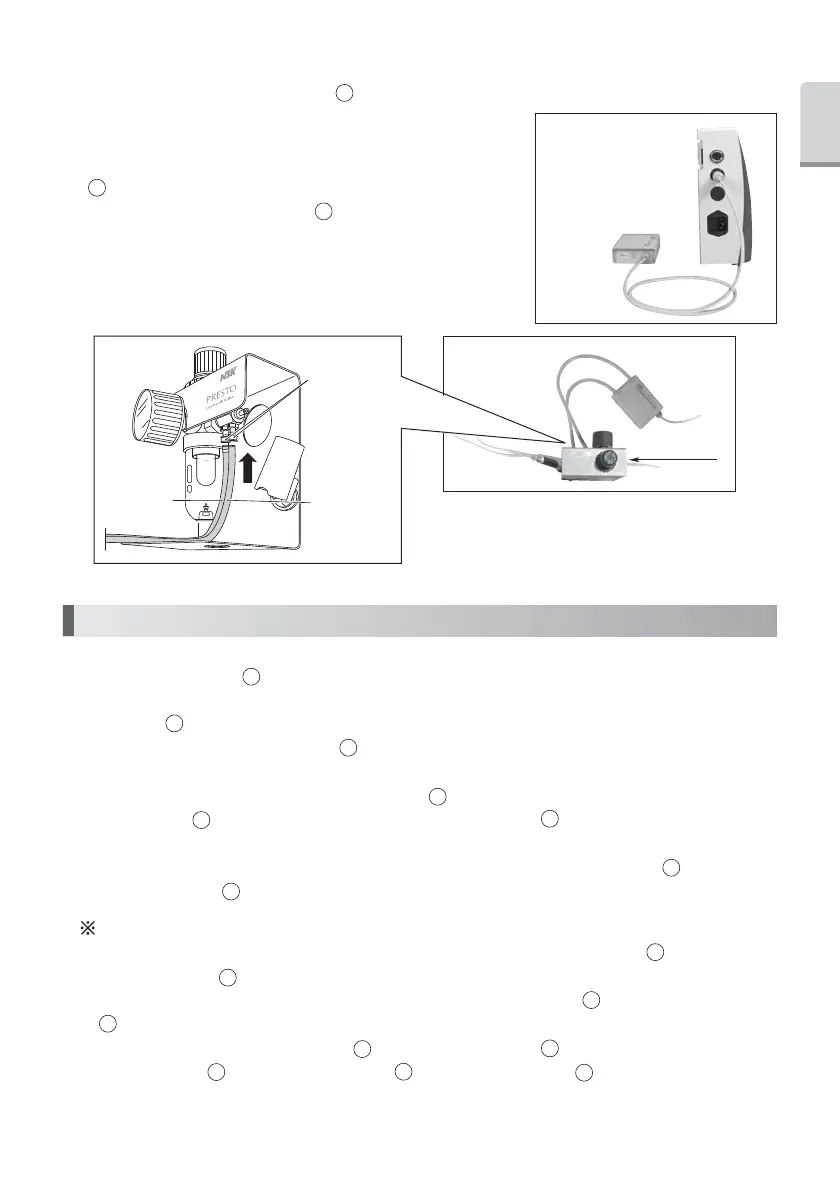

5. Mounting of the Air Turbine (Option)
Insert the plug of the Turbine Adapter into the
Turbine Adapter Connector at the back of the
unit. Insert two hoses from the Turbine Adapter
into the openings for foot pedal connection in the air
line kit. (Fig. 5)
1. Connect the power code to outlet.
2. Make sure that the Speed Control Knob is at the lowest position (position reached by fully
turning counterclockwise)
3. Turn the Power Switch. The preset rotation speed will appear on the Indicator.
4. Select the rotation direction with Forward/Reverse Selector Switch. Each time this switch
is pressed, the direction changes between FORWARD and REVERSE.
5. Preset the maximum rotation speed with the Speed Control Knob.
6. Depress the Knee Controller for ULTIMATE XL-K and the Pedal for ULTIMATE XL-D,
and the motor will run. The rotation speed can be variably controlled within the preset
maximum rotation speed range according to the degree of depression of the Knee
Controller or the Pedal.
Auto cruise mechanism
To fix the speed within the rotation speed range set by the volume with the Speed Control
Knob, press the Auto Cruise Switch while the motor is at rest. The display lamp, which is
next to the switch, will light up. If the desired speed is set with the Knee Controller or the
Pedal and a uniform speed can be maintained for one second, the motor will continue
running at the desired speed if the Knee Controller or the Pedal is released. To cancel
it, depress the Knee Controller or the Pedal again or press Auto Cruise Switch
again.
7
7
5
6
5
5
7
5
5
6
6
6
6
7
9
3
3
10
10
12
17
Fig.6
OUT IN
OUT
OUT
IN
AIR IN
To XL-K/D
Foot Pedal Connector
3. Operation Procedure
Fig.5
Turbine Adaptre
Connector
Foot Pedal
Connector
English
