NUM 1050 M - No Block Sequencing

6 - 12 en-938821/2
6.5 No Block Sequencing
6.5.1 No Block Sequencing, "INCYC" Indicator Displayed
Failure symptoms
Automatic or dry run mode selected.
The movements stop at the end of the block.
The "INCYC" indicator is displayed in the status window.

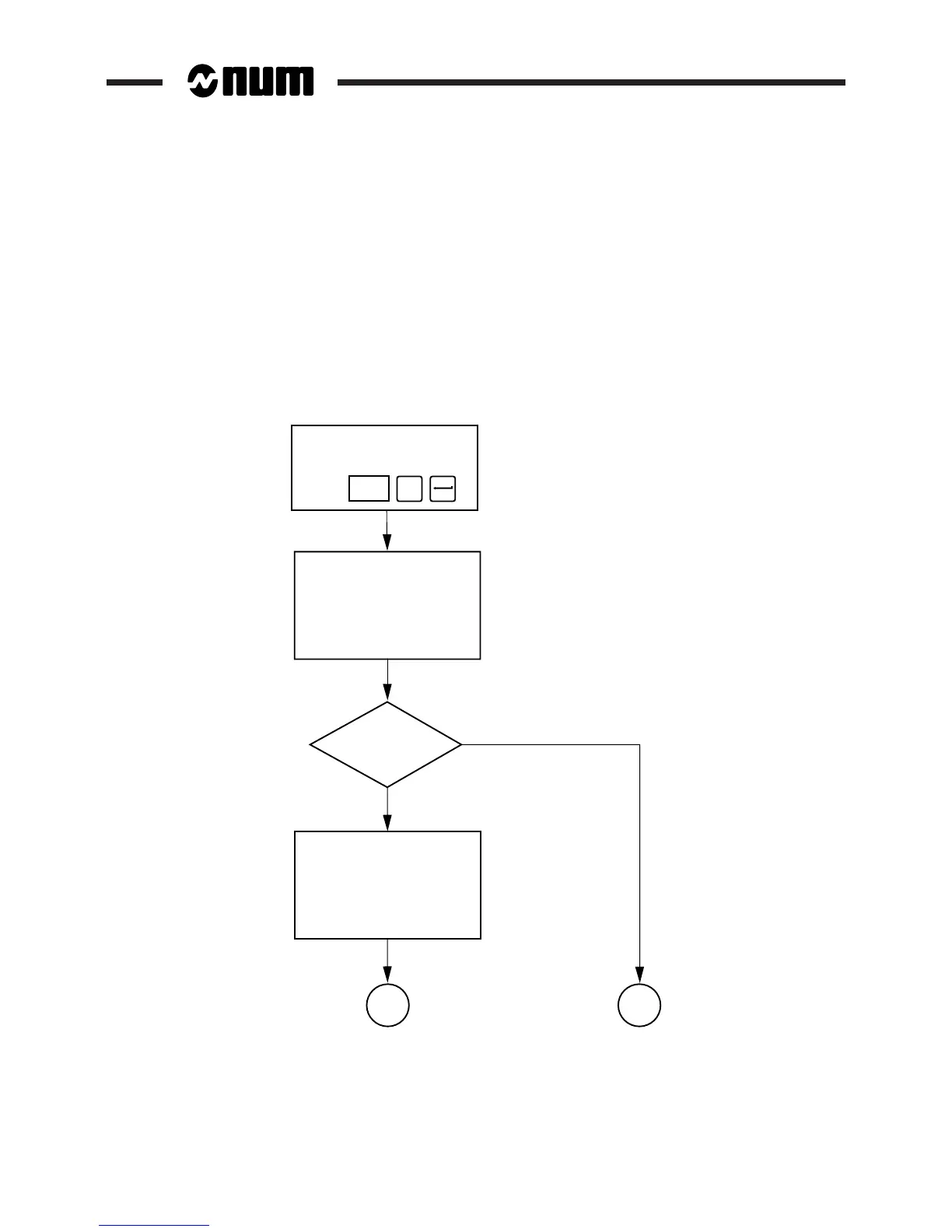

Trouble-shooting
Display
"PLC MEMORY" page
Display the
M function
reports: CRMg
(g = axis group
number: 1 to 8)
2
CRM(g) = 0
?
Yes
No
Display the end of external
movement condition
for each axis group:
C_EXTENDg (g = axis group
number: 1 to 8)
1
☞
PLC
I/O
@
2
