NUM 1050 M - Display of Active Data

Display System Utilization
en-938821/2 4 - 33
4
4.7 Display of Active Data
Requirements
Basic softkeys displayed.
Actions
Select the information page. ☞
INFO.

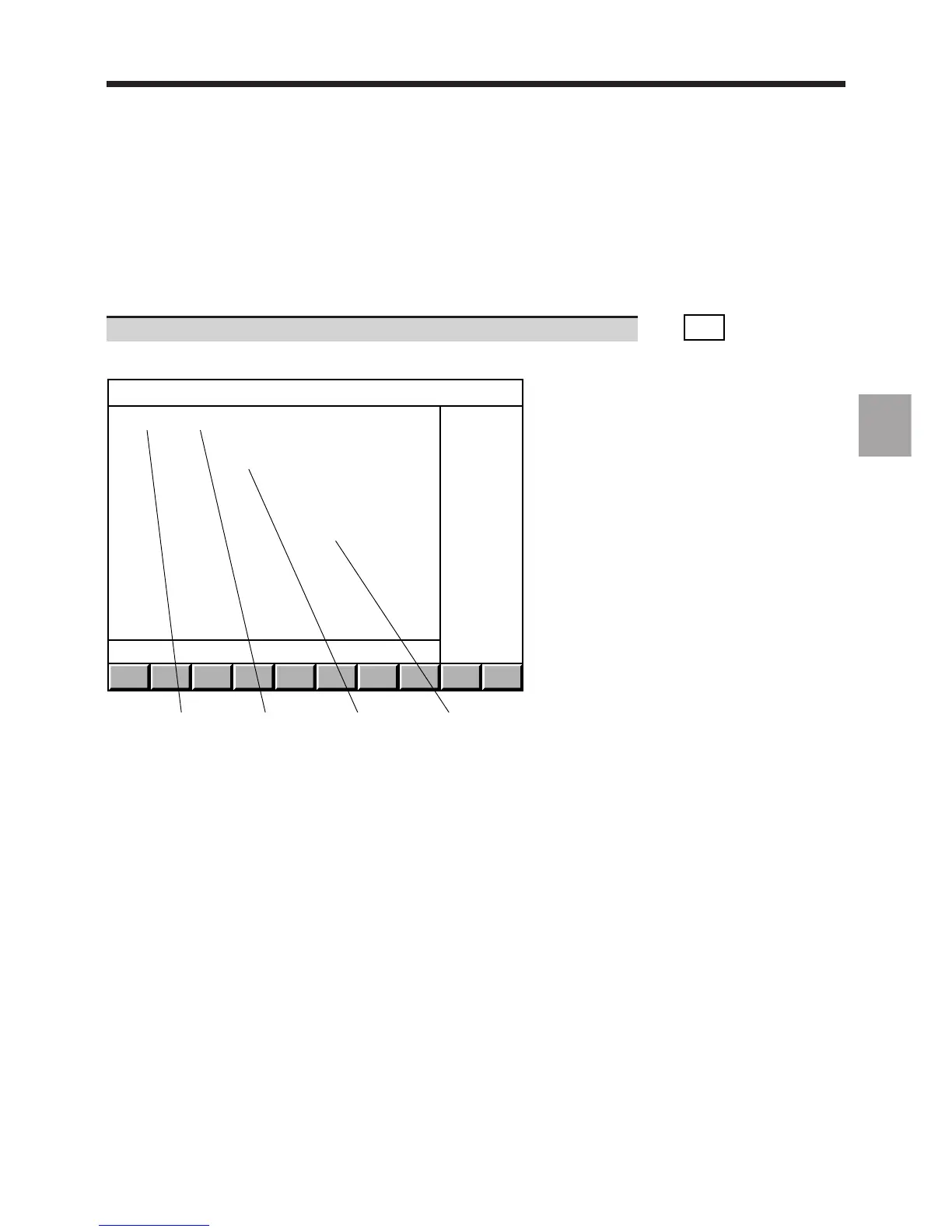

Display of information relating to the block being executed:
1234
%30 %50 N120
G1 G17 G90 G40 G54 G94 G97 G80 G73 G71
G16R+
X+4 Y-35 Z-11
F250 S1300 T2
M66 M4 M9 M48 ED0
PROG.OFFSET: X+200 Y-100 Z+0
TOOL: D4 L+76.78 R+35.016 @+1.5
JALON: Q3
SPEED: 77% S1001 FEED: 120%
MIRROR: X
1 - Machining data:
• programmed shifts
• tool dimensions and wear offsets
• last marker (axis multigroup systems)
• spindle potentiometer setting
• real spindle speed
• feed rate potentiometer setting
• mirror axes
2 - Functions programmed in current block and modal functions:
• G functions
• programmed dimensions
• feed rate
• spindle speed
• tool on spindle
• M functions
• angular shift
3 - Current block
4 - Active programmd"ûollowed by subroutines
