NUM 1050 M - Page 327

Function Summary Tables
en-938821/2 A - 7
A
G46 NU3: Facing introduction block
N.. G46 NU3
N.. Facing contour definition
G46 NU4: Cavity introduction block
N.. G46 NU4
N.. Cavity contour definition
G46 NU5 and G46 NU6: Facing and wall introduction blocks
N.. G46 NU5
N.. Facing contour definition
N.. G46 NU6
N.. Wall contour definition
G46 NU9: Geometric definition end block
N.. G46 NU9
G46 NU10: Initial drilling orders
N.. G46 NU10 NP.. G81 Z.. [ER..] [F..]
N.. G46 NU10 NP.. G83 Z.. P.. [Q..] [ER..] [EF..] [F..]
N.. G46 NU10 NP.. G87 Z.. P.. [Q..] [ER..] [EF..] [F..]
G46 NU15: Roughing order
N.. G46 NU15 NP.. Z.. P.. [ER..] [EH..] [EP..] [EQ..]
G46 NU20: Finishing and semi-finishing orders
N.. G46 NU20 NP.. Z.. P.. [ER..] [EH..] [EI..] [EJ..] [J..]
G48: Spline curve definition
Syntax: N.. G48 NC.. H../N.. N..
Cancellation: end of block
G49: Spline curve deletion
Syntax: N.. G49 NC..
Cancellation: end of block

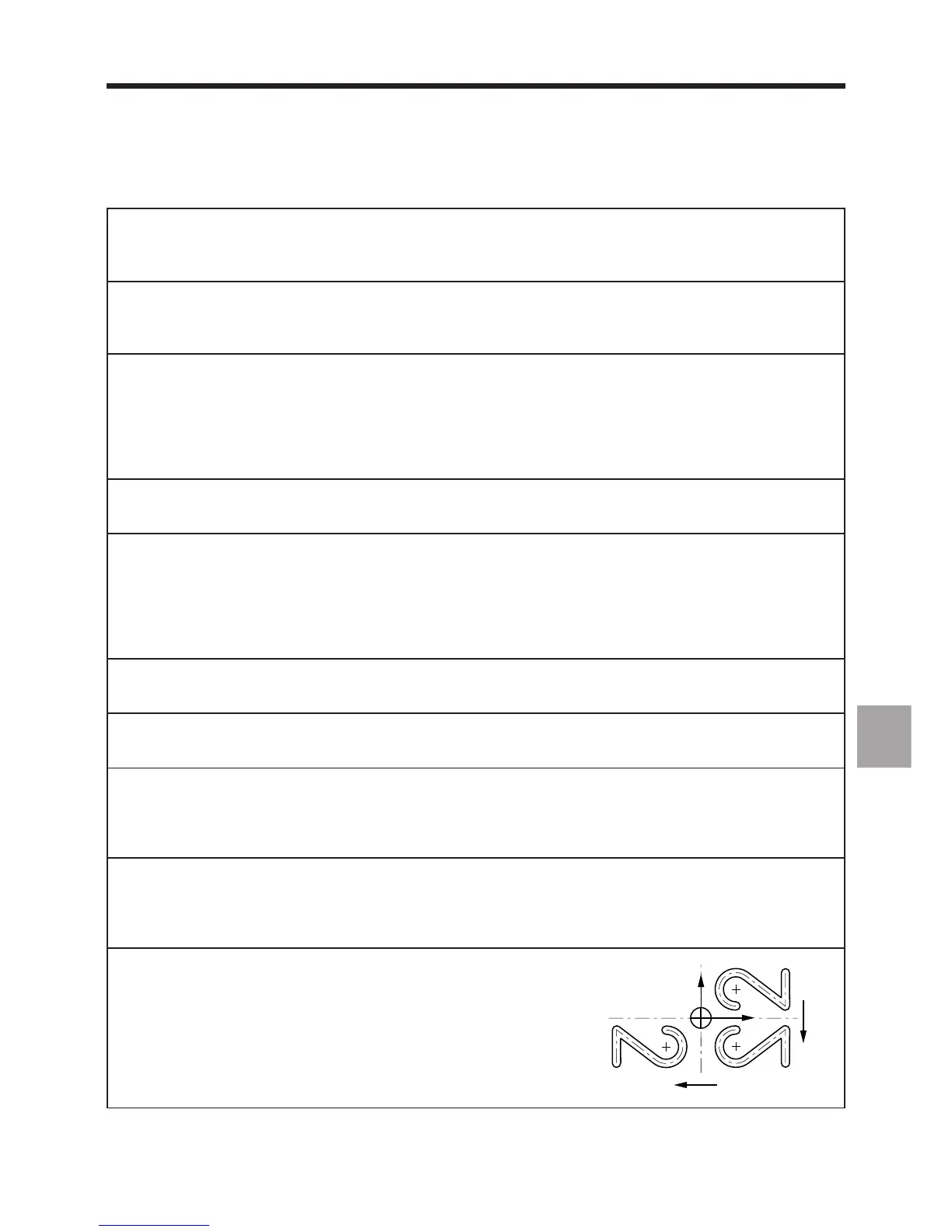

G51: Mirror function
OP
[
Y-
]
X
[
X-
]
Y
Syntax: N.. G51 X- Y- Z-
Cancellation of G51 X- Y- Z- by G51 X+ Y+ Z+
