C.1.1.8 Connection of NUM Diskette Drive with Remote RS 422 Line
1 3 5
24 V
42
24 V
≤ 40 m

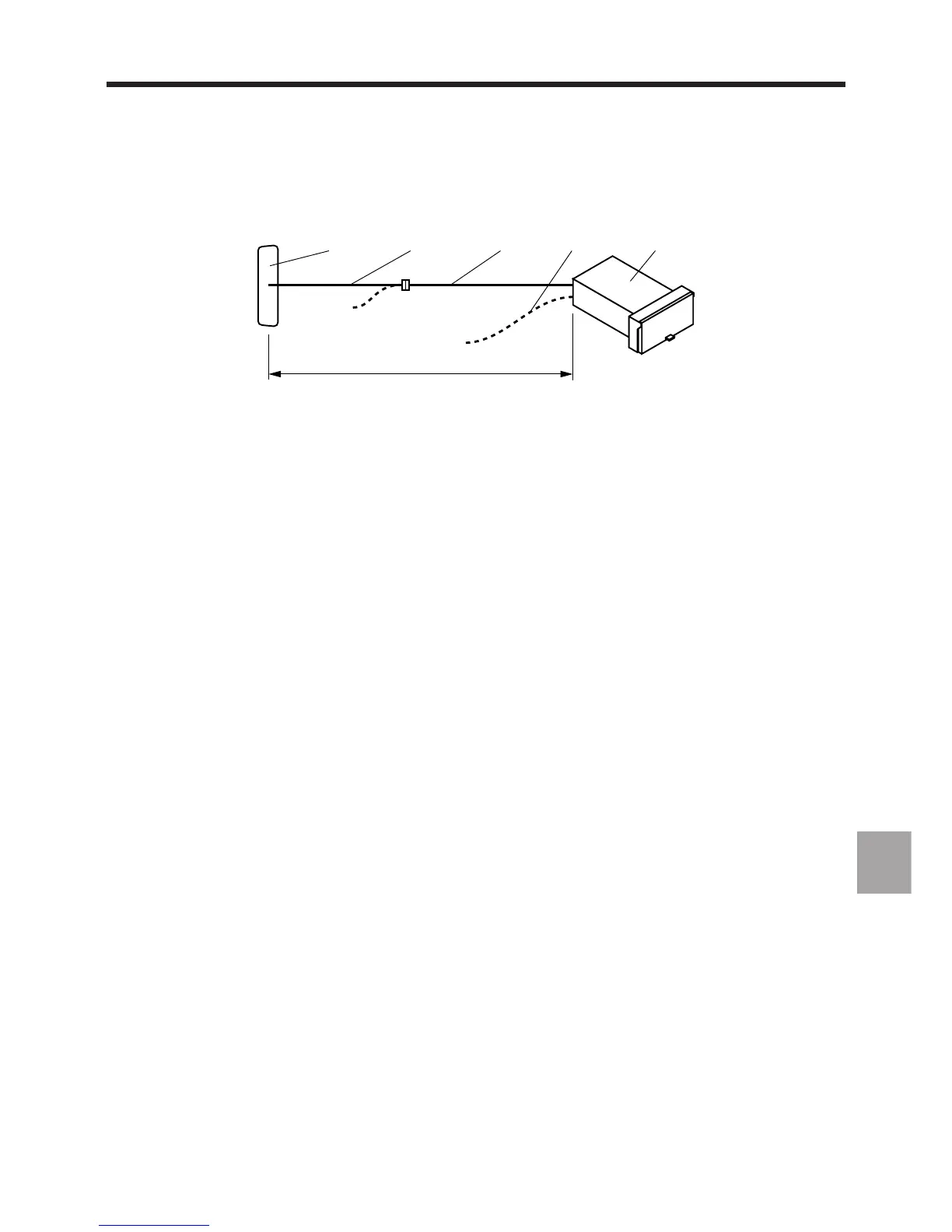

1 - Multistandard line configured for RS 422
• 15 contacts on IT/serial line card
• 9 contacts on V2 machine processor, V2 CNC and UC SII, 1020, 1040 and 1050 (serial) CPUs.
2 - RS 422 line cable with or without power supply:
• Remote on machine panel (See C.1.2.8)
• Remote on compact panel (See C.1.2.8)
3 - RS 422 serial link cable (See C.1.2.7) or cable supplied (P/N 206203324)
4 - Drive power cable (only when cable 2 does not provide the power supply: See C.1.2.5)
5 - NUM diskette drive
REMARK Configure the serial lines using the serial line parameters utility (See 8.3).
